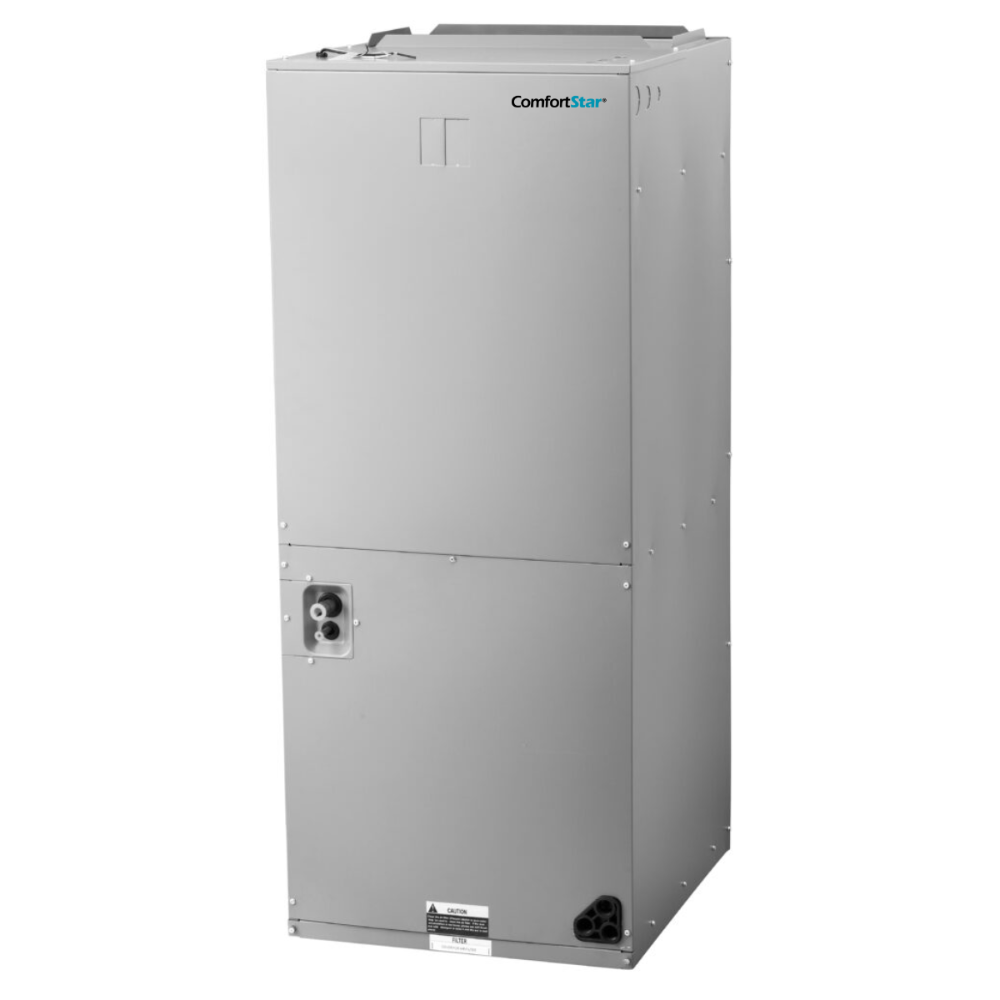

30K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

SKU: AHU30-M

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

Service Manual

Installation Manual

Size for Installation Guide

View full details

Unit Size - Inches (W x D x H): 21x21x49

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 894.12/805.88/711.76

Tonnage: 2.5

dB(A) Noise Level (Hi / Mi / Lo): 43/40/30.5

SEER: Refer to Outdoor Multi-zone Unit Selected

EER: Refer to Outdoor Multi-zone Unit Selected

Heat Capacity (BTU): 31000

Cooling Capacity (BTU): 30000

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 129.2/155.6

Features

Refrigerant Leak Detection System (some models)

In the event of a refrigerant leak, the LCD screen will display “EL0C” and the LED indicator light will ash.

NOTE: 1. Under normal working conditions, the switch, wind speed and temperature can not be adjusted by remote control.

2. Requirements of wire controller: Control AXU function for live heating Energy Saving Tips The default temperature of the rst power-on is set to 16 degrees for refrigeration and 30 degrees for heating. When the temperature stops, the temperature is set at the room temperature at that time.
