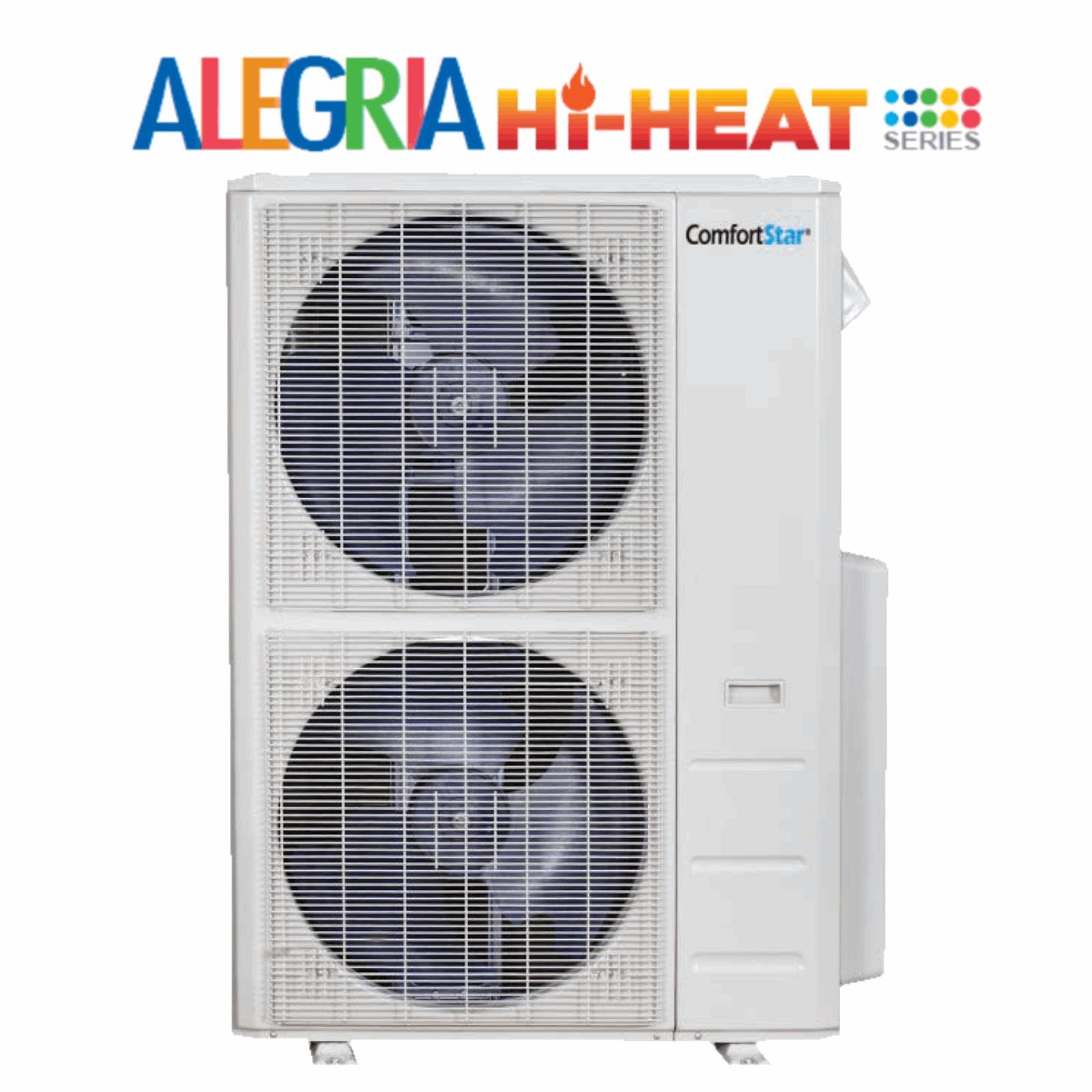

36K QUAD ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.6 SEER2 36K QUAD ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.6 SEER2
36K QUAD ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.6 SEER2

COMFORTSTAR

36K QUAD ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.6 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.6 SEER2

SKU: CVH-36-4SH

PRODUCT TYPE: Multizone Condensing Units

Free Lift Gate

Expedited Shipping

Installation Manual

Service Manual

CMZ-48-4Z Spare Parts

Combination Table
View full details
SEER2: 20.6
EER2: 12.5
HSPF2-4: 10.2
HSPF2-5: 8.2
Max. Allowable Piping Length (ft): 98 for 1 IDU 246 for sum up
Min. Allowable Piping Length (ft): 9.8
Max. Allowable Elevation Differences (ft): 33 for ODU higher than IDU, 49 for ODU lower than IDU, 33 between IDU and IDU
Min. Power Supply Wire Size (AWG): 10*3
Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded
Piping Size: (1/4"-3/8")*2& (1/4"-1/2)*2
Operating Mode: Heating and Cooling
Outdoor Ambient Temperature: -22°F
Outdoor Unit Net/Gross Weight (lbs.): 223.11/253.97

Features

Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 24,000 Btu/h.
• Inverter Technology • Factory Pre-Charge (25 ft.) • Ambient Operation to -22°F • Self-Diagnostics • Energy Efficient • Simple installation.

Mix & Match 5+ Different Style Indoor Units.
Available Indoor Units:
- High Wall Mount
- Cassette
- Floor and 2 Indoor Ceiling
- Fan Coil
- AHU

Specifications

Unit Size - Inches (W x D x H): 37.48x16.34x52.48

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 4500

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo): 63

Heat Capacity (BTU): 37000

Cooling Capacity (BTU): 36000

Placement: Quad Zone Outdoor Unit

Breaker Size (A): 50

Factory Refrigerant Charge (ft): 25*4

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): refer IDU

Indoor Units

9K CPA FAN COIL - FOR MULTI-ZONE

9K CPA FAN COIL - FOR MULTI-ZONE

9K CPA FAN COIL - FOR MULTI-ZONE

SKU: CPA-09B

BRAND: COMFORTSTAR
18K CPA FAN COIL - FOR MULTI-ZONE

18K CPA FAN COIL - FOR MULTI-ZONE

18K CPA FAN COIL - FOR MULTI-ZONE

SKU: CPA-18B

BRAND: COMFORTSTAR

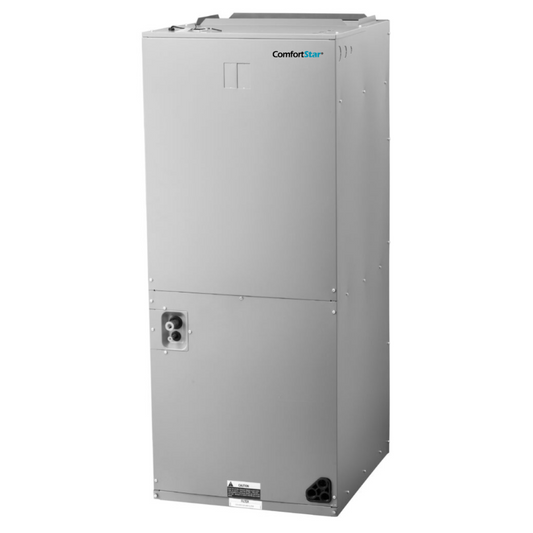

18K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

18K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

18K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

SKU: AHU18-M

BRAND: COMFORTSTAR
24K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

24K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

24K AHU-M AIR HANDLER UNIT - FOR MULTI-ZONE

SKU: AHU24-M

BRAND: COMFORTSTAR
9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF09CD(I)

BRAND: COMFORTSTAR
12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF12CD(I)

BRAND: COMFORTSTAR
18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF18CD(I)

BRAND: COMFORTSTAR
24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF24CD(I)

BRAND: COMFORTSTAR
9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-09

BRAND: COMFORTSTAR
12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-12

BRAND: COMFORTSTAR
18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-18

BRAND: COMFORTSTAR
24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TIP-24

BRAND: COMFORTSTAR
18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

SKU: FPA-18

BRAND: COMFORTSTAR
24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

SKU: FPA-24

BRAND: COMFORTSTAR
24K CPA FAN COIL - FOR MULTI-ZONE

24K CPA FAN COIL - FOR MULTI-ZONE

24K CPA FAN COIL - FOR MULTI-ZONE

SKU: CPA-24B

BRAND: COMFORTSTAR
12K CPA FAN COIL - FOR MULTI-ZONE

12K CPA FAN COIL - FOR MULTI-ZONE

12K CPA FAN COIL - FOR MULTI-ZONE

SKU: CPA-12B

BRAND: COMFORTSTAR
