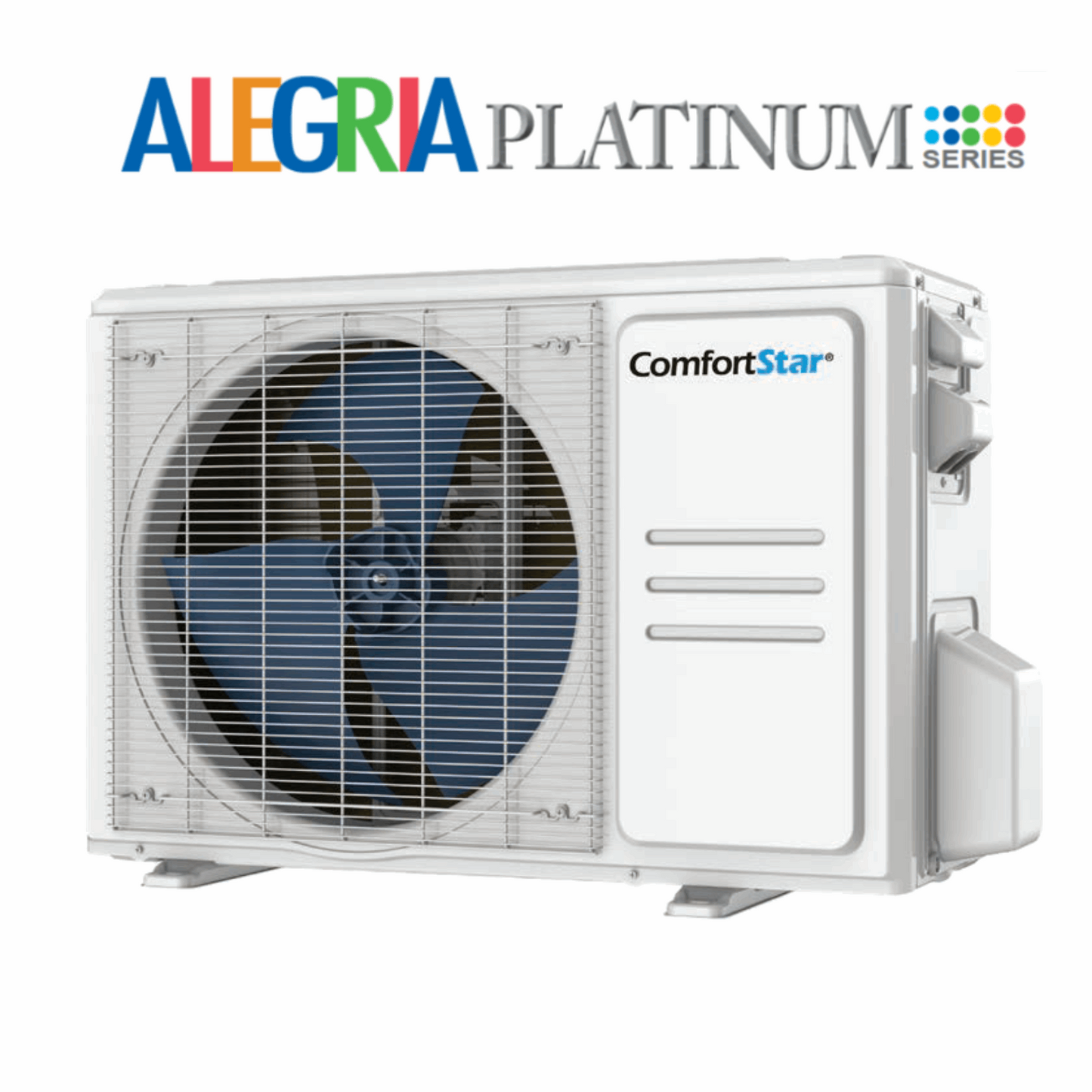

18K DUAL ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.95 SEER2
18K DUAL ZONE OUTDOOR CONDENSING UNIT - MIX DUCTLESS AND DUCTED SYSTEM 20.95 SEER2
SKU: CMZ-18-2Z
PRODUCT TYPE: Multizone Condensing Units
Features
Features
Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 12,000 Btu/h.
• Low Ambient (-13°F) • Inverter Technology • Factory Pre-Charge (25 ft.) • Self-Diagnostics • Mix and Match With Light Commercial Indoor Units And High-Wall Mounts
• Simple installation. • Individual Zone Control

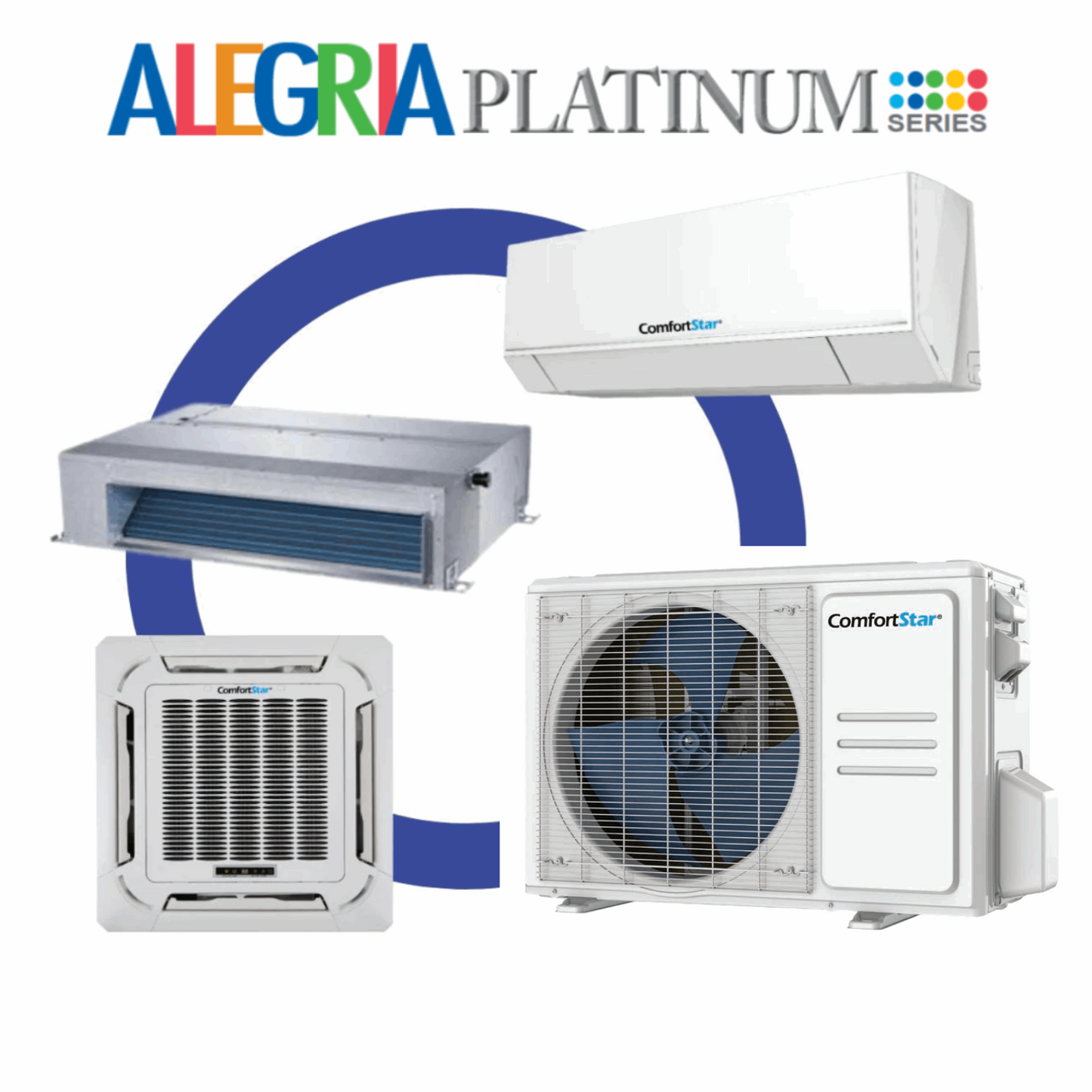

Available Indoor Units:
- High Wall Mount
- Cassette
- Fan Coil
Specifications
Specifications
Unit Size - Inches (W x D x H): 35.04x13.46x26.50
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 1764.71
Tonnage: 1.5
dB(A) Noise Level (Hi / Mi / Lo): 58.5
Heat Capacity (BTU): 19000
Cooling Capacity (BTU): 18000
Placement: Dual Zone Outdoor Unit
Breaker Size (A): 25.0
Factory Refrigerant Charge (ft): 25*2
Refrigerant Adjustment Factor (oz. per ft): 0.16
Drain Pipe Size (in): refer IDU
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside.(Must always have installed a minimum of 2 Indoor Units)
