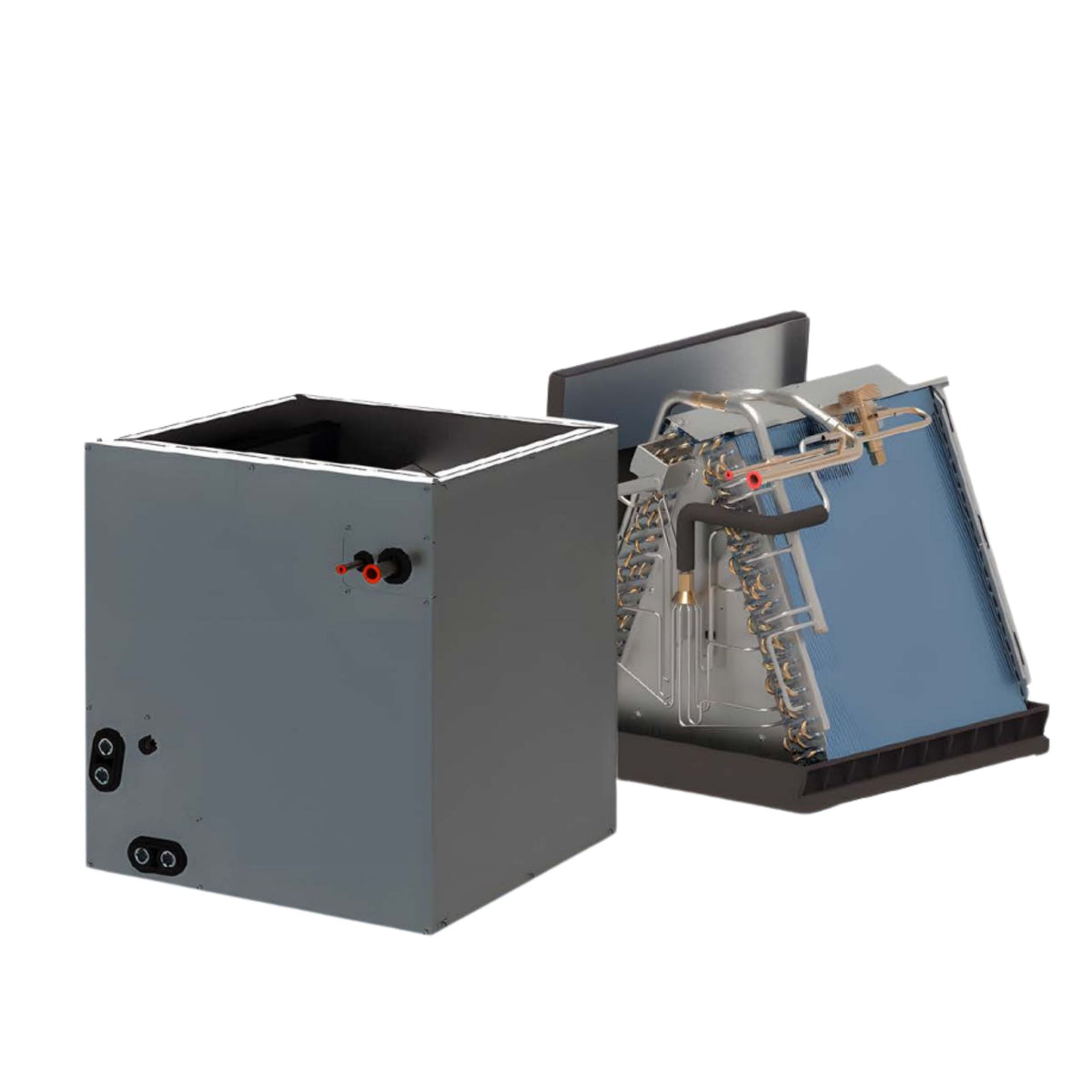

ComfortStar AC32-1824B-15 cased coil for compatible 18K and 24K BTU split systems. ComfortStar AC32-1824B-15 cased coil for compatible 18K and 24K BTU split systems.
r32-badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

18/24K Cased Coil for BAR17 | 17-33/64"x21-1/32"x17-63/64"

18/24K Cased Coil for BAR17 | 17-33/64"x21-1/32"x17-63/64"

SKU: AC32-1824B-15

BARCODE: AC32-1824B-15

PRODUCT TYPE: Air Handlers

BAR17 Series Catalog

Ver todos los detalles
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 24-31/64"x21-1/32"x27-51/64"
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): Refer to matched outdoor unit specifications.
Tonnage: 1.5 to 3
dB(A) Noise Level (Hi / Mi / Lo): Refer to matched outdoor unit specifications.
SEER2: 13.8
EER: 11.7
Operating Mode: Refer to matched outdoor unit specifications.
Heat Capacity (BTU): Refer to matched outdoor unit specifications.
Cooling Capacity (BTU): Refer to matched outdoor unit specifications.
Placement: Indoor Air Handler Unit
Indoor Unit Net/Gross Weight (lbs.): Refer to matched outdoor unit specifications.

Features

• Pre-Packaged Evaporator: Factory-assembled cased coil designed for compatible split-system installations.
• 18K–24K BTU Capacity Range: Supports ComfortStar cooling systems within the 18,000 to 24,000 BTU range.
• All-Aluminum Heat Exchanger: Provides corrosion resistance and long service life.
• Flexible Design: Multiple cabinet configurations accommodate gas furnaces with different dimensions.
• Compact Structure: Supports easier transportation and installation.
• Outdoor Unit Compatibility: Can be paired with compatible DC inverter or on/off outdoor units.
