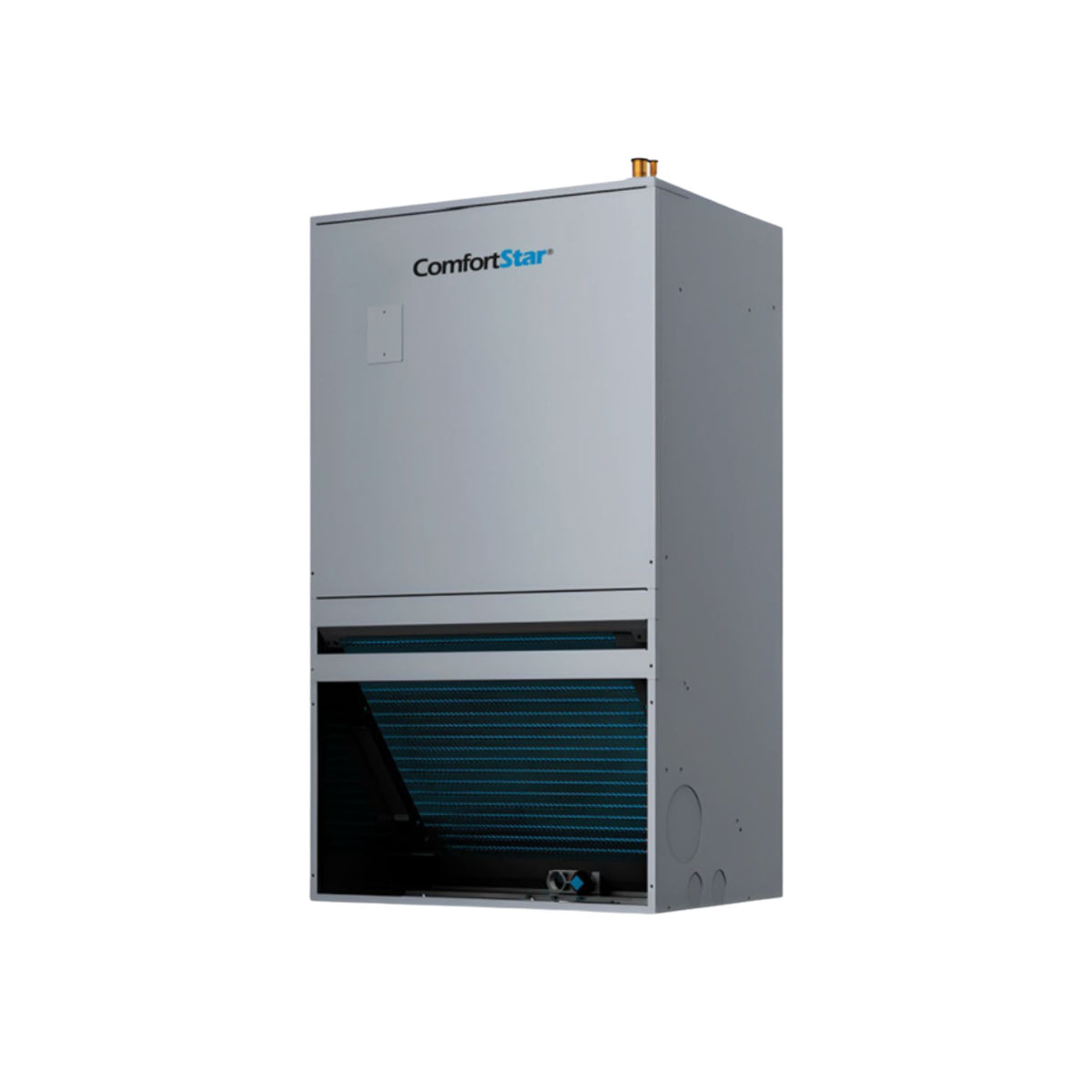

18K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - 14.5 SEER2

Name: 18K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - 14.5 SEER2
Brand: COMFORTSTAR
SKU: CWM32-18-15
Availability: OutOfStock

18K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - 14.5 SEER2

SKU: CWM32-18-15

BARCODE: CWM32-18-15

PRODUCT TYPE: Air Handlers

Variantes de producto

Cantidad

BAH32 Series Catalog

CSS Series Catalog

Ver todos los detalles

Refrigerant Type: R32

Unit Size - Inches (W x D x H): 20-25/32"x15-13/64"x36-1/32"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 605/512

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo): 49

SEER2: Refer to matched outdoor unit specifications.

EER: Refer to matched outdoor unit specifications.

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 19,000

Cooling Capacity (BTU): 18,000

Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 88/95

Outdoor Unit Net/Gross Weight (lbs.): 95

Features

• Approved Outdoor Compatibility: Compatible with BAH32-18-15 and CSS18CD(O) outdoor units.
• Matched System Performance: Delivers 18,000 BTU/h cooling and 19,000 BTU/h heating in its approved BAH32 or CSS system match.
• System Efficiency: Rated 14.5 SEER2 with BAH32 or 15.0 SEER2 with CSS.
• Multi-Speed Airflow: Direct-drive multi-speed PSC motor delivers 605/512 CFM airflow.
• Low Indoor Sound: Rated at 49 dB(A) high/low.
• Flexible Return Design: Supports front or bottom return air.
• All-Aluminum Coil: Features an all-aluminum coil.
• Installation-Ready: Includes a built-in filter rack, wall-hanging bracket, and thermoplastic drain pan with primary and secondary bottom connections.
• Optional Accessories: Optional Wi-Fi control and 5kW, 7.5kW, or 10kW heating elements are available.
• AHRI and ETL Listed: Listed for verified performance and safety.
