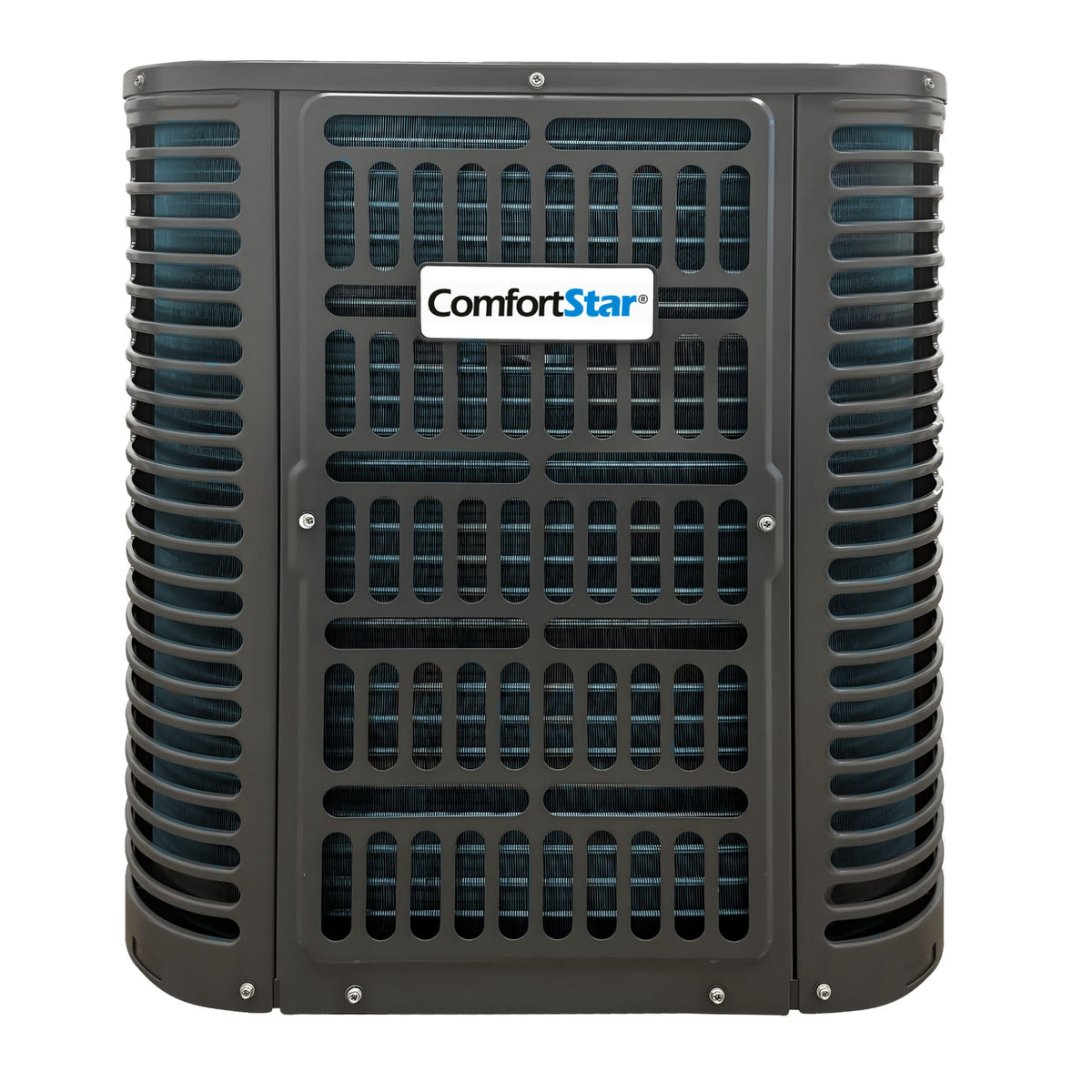

Front view of the ComfortStar 24,000 BTU BAH6 outdoor heat pump condenser with dark gray protective grille. Front view of the ComfortStar 24,000 BTU BAH6 outdoor heat pump condenser with dark gray protective grille.
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

24K BAH6 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

24K BAH6 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

SKU: BAH6-24-15

BARCODE: BAH6-24-15

PRODUCT TYPE: Condensing Units

Product Catalog

Ver todos los detalles
Refrigerant Type: R454b
Unit Size - Inches (W x D x H): 21-4/5x21-4/5x25
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 3,060
Tonnage: 2
dB(A) Noise Level (Hi / Mi / Lo): 60
SEER2: 14.3
EER: 11.7
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 24,000
Cooling Capacity (BTU): 24,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 133/139

Features

- Cooling Capacity: 24,000 BTU.
- High-Efficiency Performance: Up to 14.3 SEER2.
- Scroll Compressor: 24,800 BTU/h compressor capacity.
- Compact Outdoor Cabinet: 21-4/5" W x 25" H x 21-4/5" D; 127 lb net weight.
- Standard Refrigerant Connections: 3/8" liquid and 3/4" vapor valves.
- Flexible Installation: Supports up to 130 ft. maximum line length.
- R454B Refrigerant: Uses environmentally friendly R454B refrigerant.
- 5-Speed DC Fan Motor: Supports efficient outdoor airflow.
- Inner-Grooved Copper Tube Coil: High-efficiency condenser construction with aluminum fins.
- System Protection: Includes low- and high-pressure protection.
- Cooling Operating Range: 53°F to 120°F.
- Durable Cabinet: Powder-painted galvanized steel construction.
