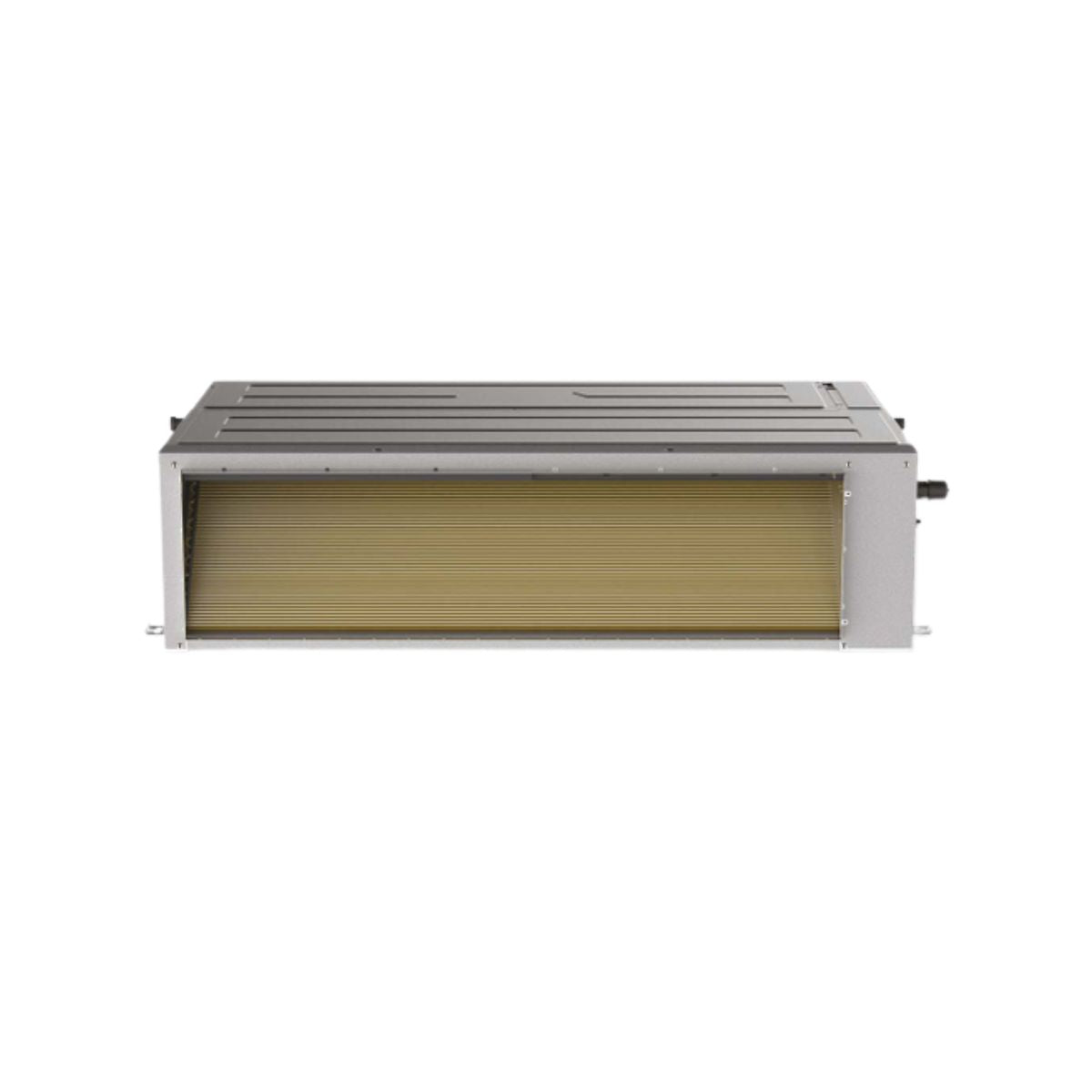

ComfortStar CPAH3 24,000 BTU fan coil indoor unit for compatible CMZ3 multi-zone systems. ComfortStar CPAH3 24,000 BTU fan coil indoor unit for compatible CMZ3 multi-zone systems.
r454b badge
7 Year Compressor Warranty7 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

24K CPAH3 FAN COIL - FOR CMZ3 MULTI-ZONE

24K CPAH3 FAN COIL - FOR CMZ3 MULTI-ZONE

SKU: CPA3H-24CD(I)

BARCODE: CPA3H-24CD(I)

PRODUCT TYPE: Fan Coils

Product Catalog

Ver todos los detalles
Refrigerant Type: R454B
Unit Size - Inches (W x D x H): 39.37x29.53x9.65
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 706.3618 0/500.3
Tonnage: 2
dB(A) Noise Level (Hi / Mi / Lo): 40/38/35.5
SEER2: Refer to Outdoor CMZ3 Multi-zone Unit
EER: Refer to Outdoor CMZ3 Multi-zone Unit
Operating Mode:
Heat Capacity (BTU): 25,000
Cooling Capacity (BTU): 24,000
Placement: Indoor Fan Coil Unit
Indoor Unit Net/Gross Weight (lbs.): 80.47/91.93

Features

The ComfortStar CPAH3-24CD(I) is a 24,000 BTU high-static slim-duct indoor fan coil designed for compatible CMZ3 multi-zone systems. It has 24,000 BTU of cooling capacity and 25,000 BTU of heating capacity. Please see the Combination Table to confirm compatible outdoor units and system configurations.

FEATURES:
- Compatible With Both Horizontal and Vertical Installation (Optional)
- Static Pressure Setting Stages: 4
- 24,000 BTU Cooling Capacity
- 25,000 BTU Heating Capacity
- Refrigerant Leakage Detection Sensor
- Constant Airflow
- Built-In Pump
- I-Clean
- Fan Speed Stages: 1~100%
- 208/230V, 60Hz, 1Ph Power Supply
