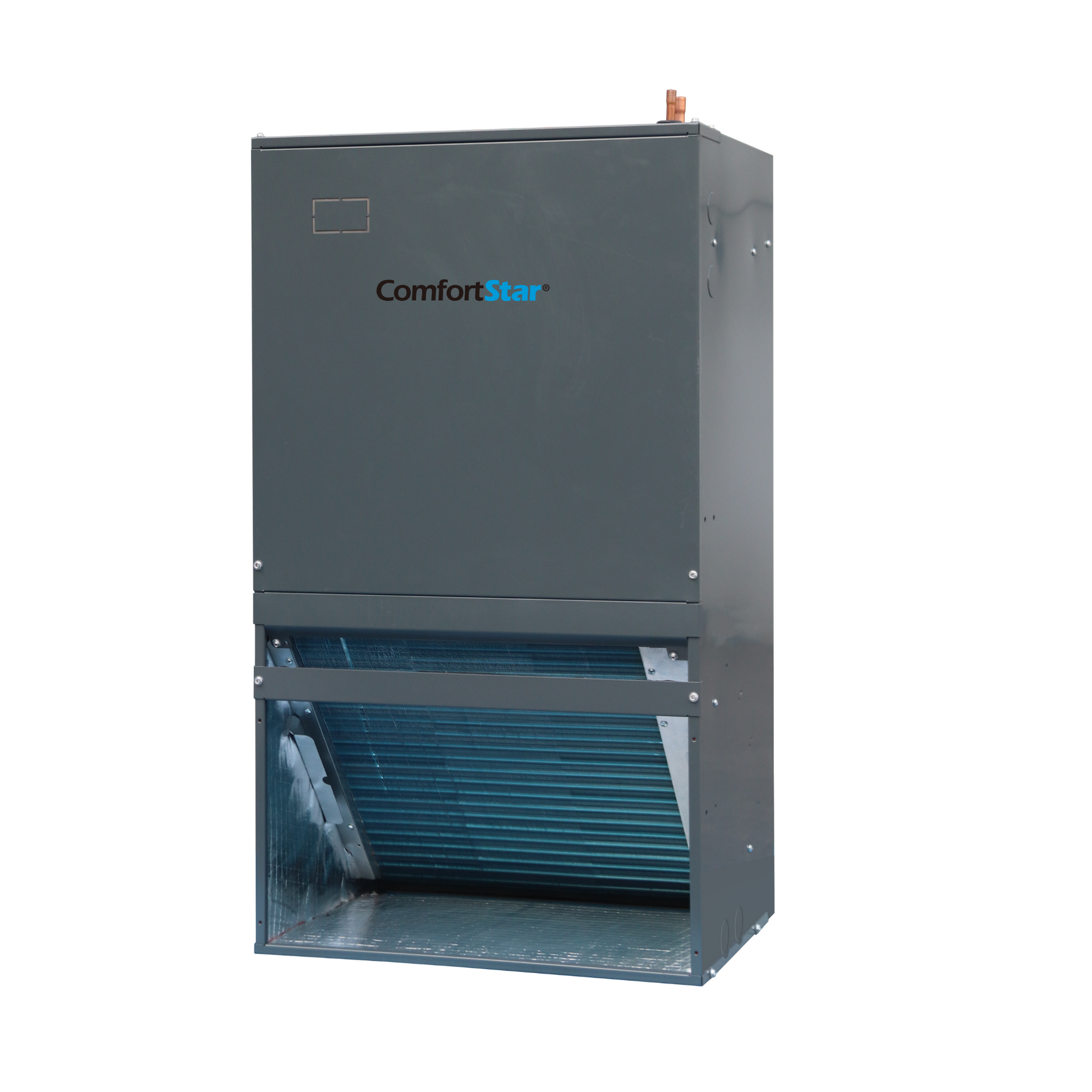

24K WALL MOUNTED CWM6 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2

24K WALL MOUNTED CWM6 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2

SKU: CWM6-24-15

PRODUCT TYPE: Air Handlers

Free Lift Gate

Expedited Shipping

System Gross Weight: 106 (lbs.)
Combination Table
Ver todos los detalles
Refrigerant Type: R454B
Unit Size - Inches (W x D x H): 20-1/2×15×36-1/2
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 750
Tonnage: 2
dB(A) Noise Level (Hi / Mi / Lo): 51
SEER2: 14.3
EER: 11.7
Operating Mode: Cooling Only
Heat Capacity (BTU): Electric Heat Kit for Field Installation (5kw, 8kw and 10kw)
Cooling Capacity (BTU): 24000
Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Features

• Flexible Air Return Options
Factory-standard front return, easily convertible to bottom return by removing the base pan panel and cross brace, allowing installation versatility.

• Multiple Installation Methods
Designed for both wall and stud mounting applications, ensuring adaptability to various setups.

• System Compatibility
Suitable for use with Cooling Only (CO) and Heat Pump (HP) condenser units.

• Quiet Operation
Engineered for reduced sound levels, ensuring comfortable and quiet performance.

• Optional Heating Kits
Supports auxiliary heater options in 5 kW, 7.5 kW, and 10 kW capacities for added heating flexibility.

• Efficient Motor Design
Equipped with a multi-speed ECM constant torque motor for reliable airflow and energy efficiency.

• Durable Coil Construction
Features copper tube and aluminum fin coils for enhanced heat transfer and long-term durability.

• Factory-Installed Metering Device
Includes a piston metering device for consistent refrigerant flow and dependable performance.

• Insulated Metal Cabinet
Built with a sturdy metal cabinet and foil-faced insulation to improve efficiency and reduce sound.

• Standard Thermostat Control
Compatible with conventional thermostat functionality for simple operation.

• Compact Design
Space-saving cabinet allows for easy installation and maneuverability.

• Refrigerant Leak Detection
Comes with a factory-installed refrigerant leak sensor for added safety and system protection.
