USAIRE

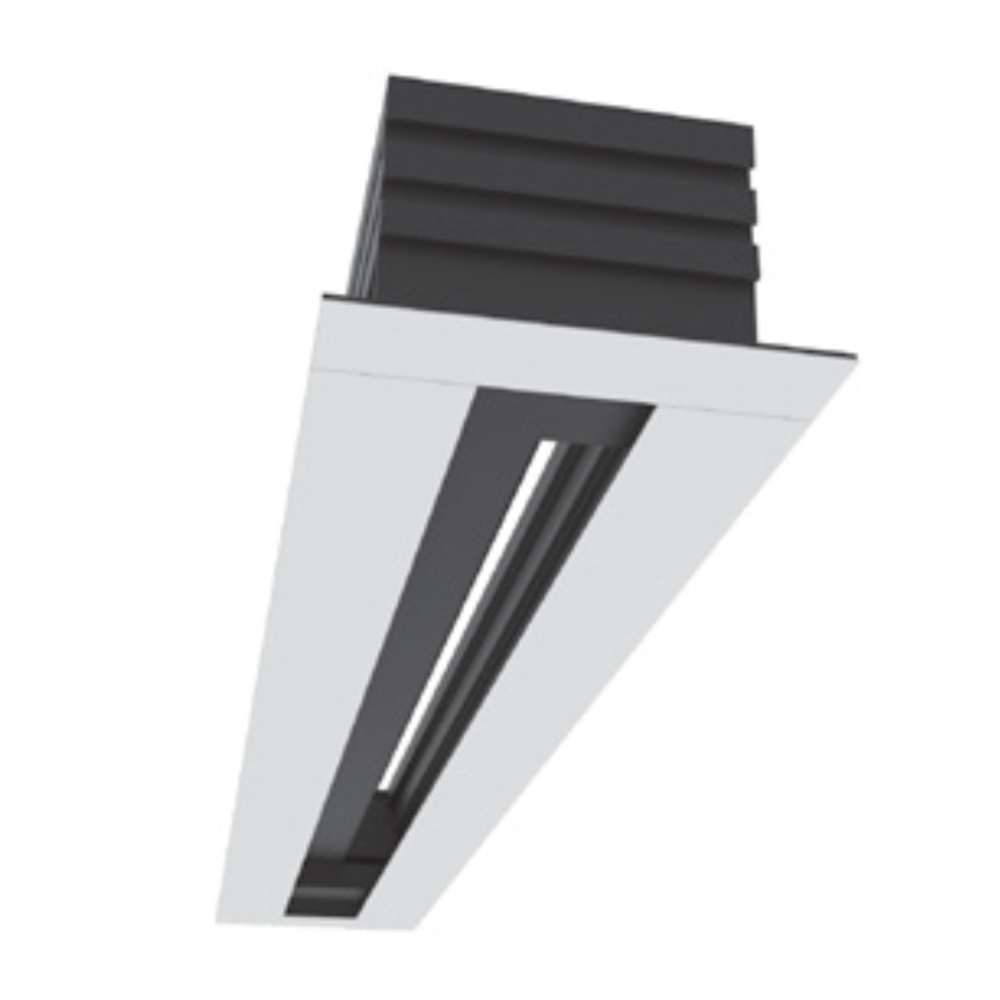

30" X 1" SUPPLY LINEAR SLOT DIFFUSER - 1 SLOT - WHITE

30" X 1" SUPPLY LINEAR SLOT DIFFUSER - 1 SLOT - WHITE

SKU: 6610-12-1 30X1 2EB 20

PRODUCT TYPE: Linear Diffusers

Expedited Shipping

Ver todos los detalles

Features & Specifications

Supply / Return Linear Slot Diffusers w/ Integral Volume / Directional Pattern Controllers.

The 6600 series aluminum linear slot diffusers are an excellent choice for continuous linear applications, providing a clean appearance and easy installation.

Base model - 6610(1" slot).

Units are available in a single section up to 8'. This feature gives a clean appearance and makes installation easier with fewer joints to line up

Pattern controllers on supply units are aluminum and are adjustable from the face of the diffuser and can be set to adjust volume or throw direction from vertical to horizontal.
Available for T-bar Lay-in, surface mount, narrow tee, dropped face, concealed spline, or concealed spline/plaster frame.
Available Universal Plenum (UP) can be provided for all 6600 Series.
The 6600 series is an excellent selection for variable volume systems supplying a tight horizontal pattern from maximum to minimum throws.
