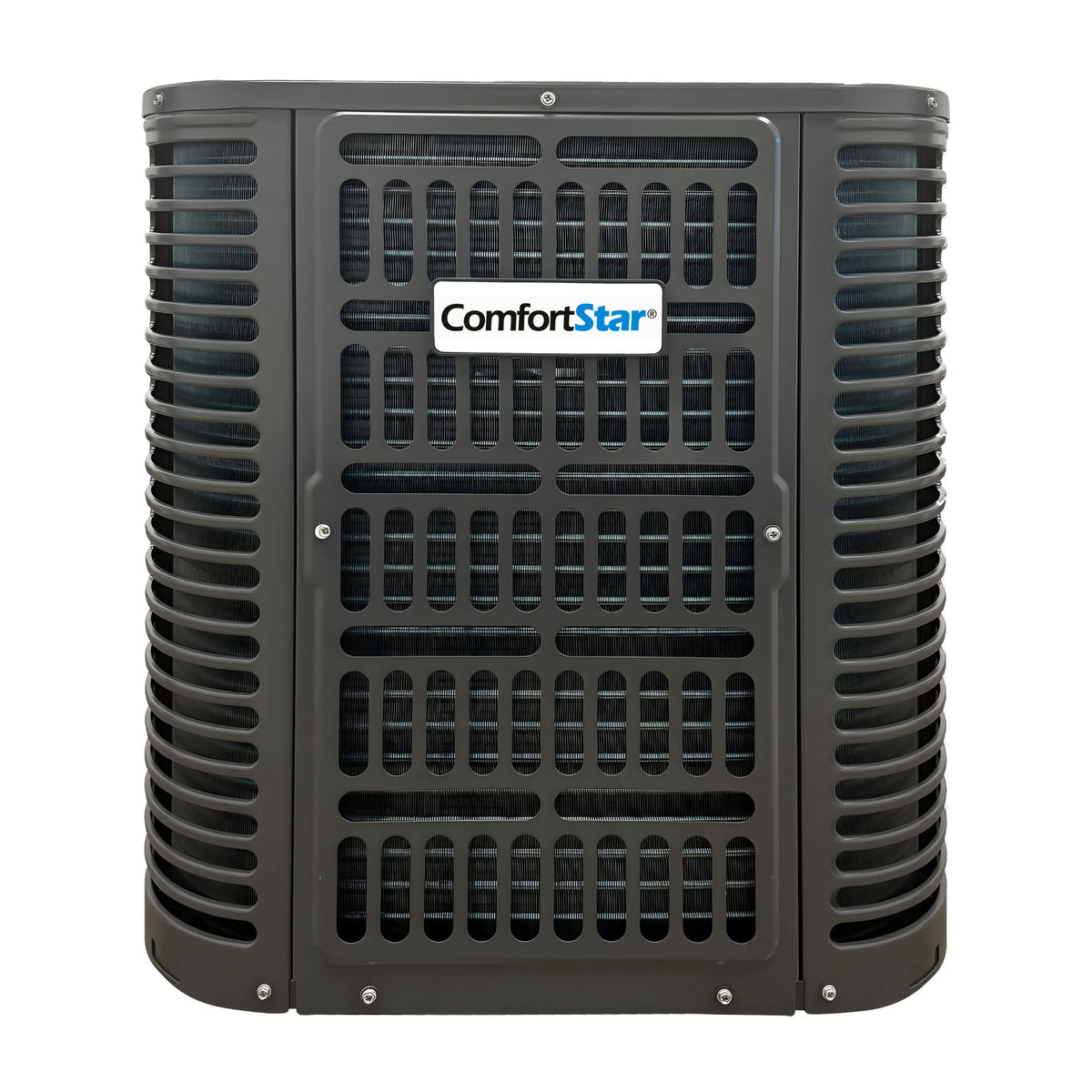

Front view of the ComfortStar 30,000 BTU BAH17 outdoor heat pump condenser with dark gray protective grille. Front view of the ComfortStar 30,000 BTU BAH17 outdoor heat pump condenser with dark gray protective grille.
r32-badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

30K BAH17 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

30K BAH17 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

SKU: BAH17-30-15

BARCODE: BAH17-30-15

PRODUCT TYPE: Condensing Units

Product Catalog

Ver todos los detalles
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 29-9/64x29-9/64x25
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 950/520
Tonnage: 2.5
dB(A) Noise Level (Hi / Mi / Lo): 59
SEER2: 14.3
EER: 11.7
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 30,000
Cooling Capacity (BTU): 30,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 139/148

Features

- Cooling Capacity: 30,000 BTU at 95°F.
- Heating Capacity: 30,000 BTU.
- High-Ambient Cooling: Delivers 23,100 BTU cooling capacity at 120°F.
- Cold-Weather Heating: Operates in heating conditions from -4°F to 86°F.
- Quiet Operation: 59 dB(A) sound pressure level.
- Outdoor Unit Size: 29-9/64" W x 29-9/64" D x 25" H; 139 lb net weight.
- Refrigerant Piping: 3/8" liquid and 3/4" gas connections.
- Installation Flexibility: Supports up to 131 ft. of refrigerant pipe length and 82 ft. maximum level difference.
- On-Off Rotary Compressor: Designed for dependable heating and cooling operation.
- Brushless DC Fan Motor: Improves efficiency and supports extended service life.
- Refrigerant Leak Detection: Adds system protection.
- Refrigerant-Cooled PCB: Supports heat dissipation and durability.
- Multiple Control Options: Compatible with 24VAC thermostats; optional wired and Wi-Fi controls are available.
- R32 Refrigerant: Uses R32 refrigerant.
