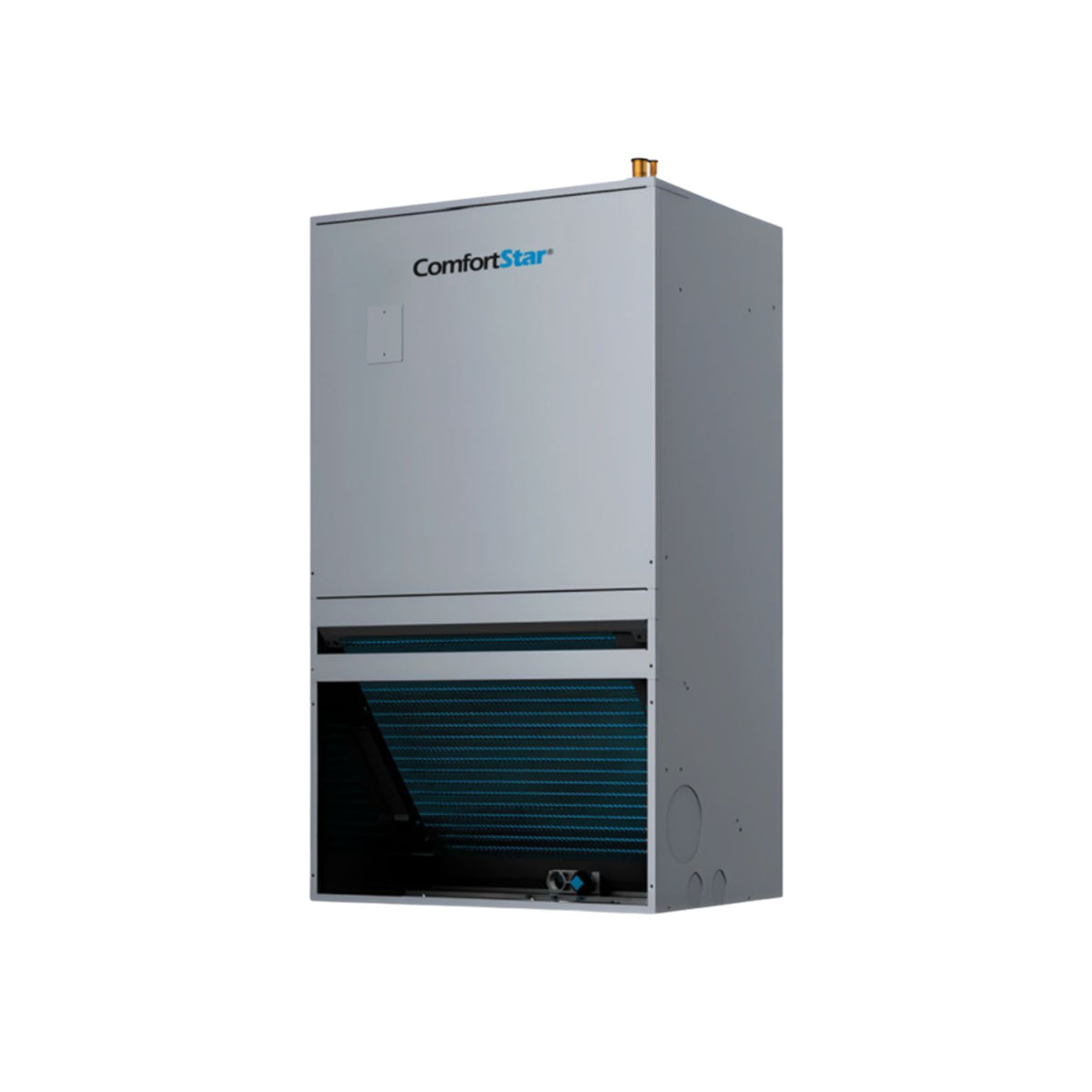

ComfortStar CWM32-30 30,000 BTU wall-mounted air handler with front access panel and condensate drain. ComfortStar CWM32-30 30,000 BTU wall-mounted air handler with front access panel and condensate drain.
r32-badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

30K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - up to 15 SEER2

30K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - up to 15 SEER2

SKU: CWM32-30-15

BARCODE: CWM32-30-15

PRODUCT TYPE: Air Handlers

BAH32 Series Catalog

CSS Series Catalog

Combination Table
Ver todos los detalles
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 22-1/8"x19-1/16"x39-41/64"
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 965/766
Tonnage: 2.5
dB(A) Noise Level (Hi / Mi / Lo): 49
SEER2: Refer to matched outdoor unit specifications.
EER: Refer to matched outdoor unit specifications.
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 31,000
Cooling Capacity (BTU): 30,000
Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit
Indoor Unit Net/Gross Weight (lbs.): 108/121

Features

• Approved Outdoor Compatibility: Compatible with BAH32-30-15 and CSS30CD(O) outdoor units.
• Matched System Performance: Delivers 30,000 BTU/h cooling and 31,000 BTU/h heating in approved BAH32 or CSS system combinations.
• System Efficiency: Rated 14.5 SEER2 with BAH32 or 15.0 SEER2 with CSS.
• High Airflow Performance: Direct-drive multi-speed PSC motor supplies 965/766 CFM airflow.
• Controlled Indoor Sound: Rated at 49 dB(A) high/low.
• Front or Bottom Return: Accommodates either return-air configuration.
• All-Aluminum Coil: Features an all-aluminum coil.
• Built-In Installation Support: Includes a filter rack, wall-hanging bracket, and bottom drain connections.
• Optional System Add-Ons: Optional Wi-Fi control and 5kW, 7.5kW, or 10kW heating elements are available.
• AHRI and ETL Listed: Listed for verified performance and safety.
