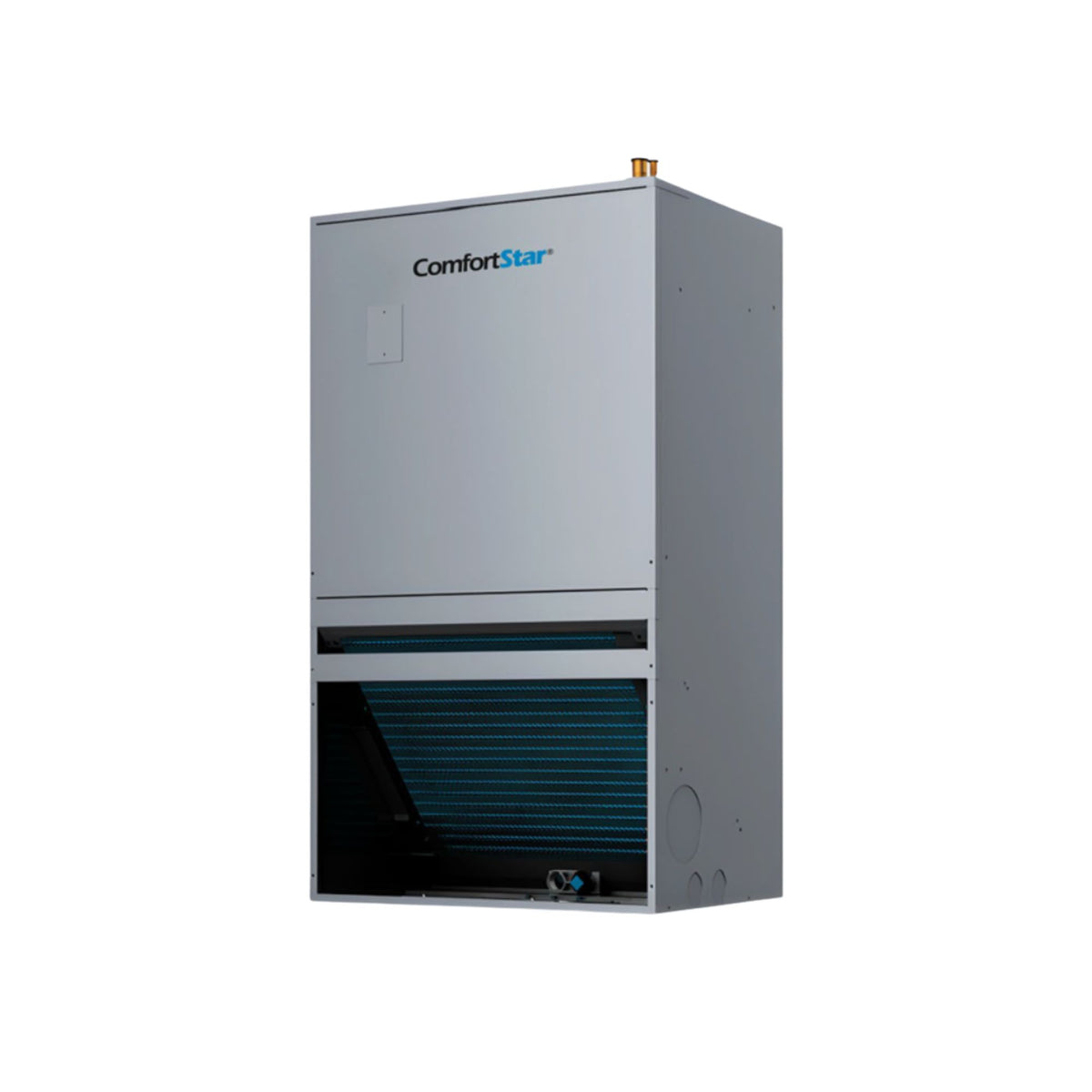

36K WALL MOUNTED CWM3-SG3 AIR HANDLER - FRONT OR BOTTOM RETURN - 19 SEER2

Name: 36K WALL MOUNTED CWM3-SG3 AIR HANDLER - FRONT OR BOTTOM RETURN - 19 SEER2
Brand: COMFORTSTAR
SKU: CWM3-36-SG3
Availability: InStock

36K WALL MOUNTED CWM3-SG3 AIR HANDLER - FRONT OR BOTTOM RETURN - 19 SEER2

SKU: CWM3-36-SG3

BARCODE: CWM3-36-SG3

PRODUCT TYPE: Air Handlers

Variantes de producto

Expedited Shipping

System Gross Weight: Refer to matched outdoor unit specifications. (lbs.)

Cantidad

CPH3 & CPR3 Series Catalog

Ver todos los detalles

Refrigerant Type: R454b

Unit Size - Inches (W x D x H): 22.01x19.02x40x.04

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1083.0/971.2/865.2

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo): 50.5/48/36.5

SEER2: Refer to matched outdoor unit specifications.

EER: Refer to matched outdoor unit specifications.

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 37,000

Cooling Capacity (BTU): 36,000

Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 109.57/130.73

Features

• 36,000 BTU Cooling Capacity and 37,000 BTU Heating Capacity
• Wall-Mounted Air Handler with Front or Bottom Return
• Cabinet Dimensions: 22.01 in. W x 19.02 in. D x 40.04 in. H
• 208/230V, 60Hz, Single-Phase Power Supply
• 1,189 to 865.2 CFM Airflow Range
• Easy-Access Error Code Display
• Slide-Out Filter Design
• Easily Removable Electrical Control Box
• Front Slide-Track Evaporator Coil Design
• Compatible with Matched ComfortStar Heat Pump Systems
