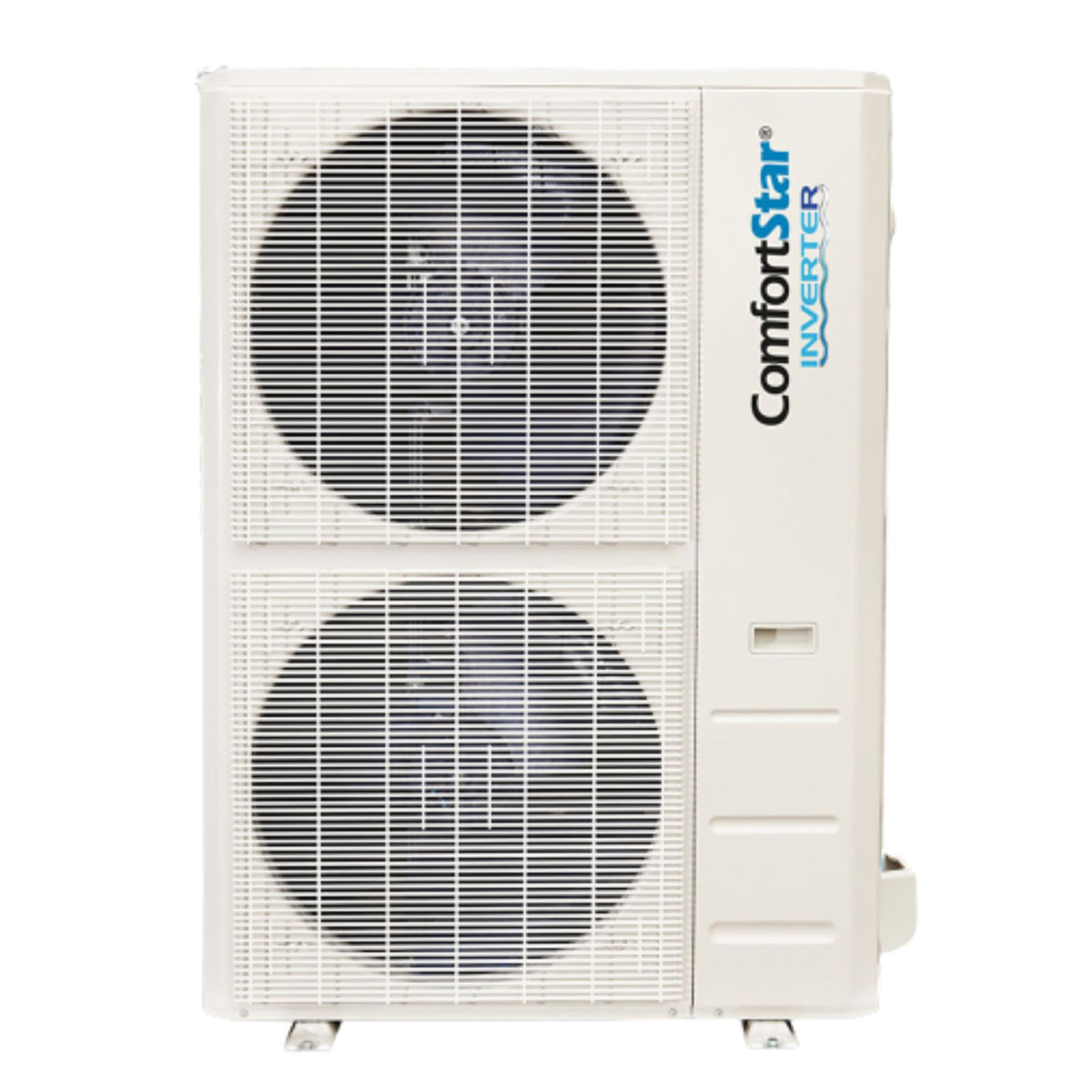

ComfortStar CPH3 48,000 BTU side-discharge heat pump condensing unit. ComfortStar CPH3 48,000 BTU side-discharge heat pump condensing unit.
r454b badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

48K CPH3 CONDENSING UNIT - HEAT PUMP SIDE DISCHARGE - UP TO 19 SEER2

48K CPH3 CONDENSING UNIT - HEAT PUMP SIDE DISCHARGE - UP TO 19 SEER2

SKU: CPH3-48CD(O)

BARCODE: CPH3-48CD(O)

PRODUCT TYPE: Condensing Units

Free Lift Gate

Expedited Shipping

System Gross Weight: 232.59 (lbs.)

Click Here to View the Product Catalog

Ver todos los detalles
Refrigerant Type: R454B
Unit Size - Inches (W x D x H): 38.58x16.34x38.39
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 3,037.2
Tonnage: 4
dB(A) Noise Level (Hi / Mi / Lo): 65
SEER2: 19
EER: 12
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 48,000
Cooling Capacity (BTU): 45,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 201.50/232.59

Features

• 45,000 BTU Cooling Capacity
• 48,000 BTU Heating Capacity
• Side-Discharge Heat Pump Condensing Unit
• 208/230V, 60Hz, Single-Phase Power Supply
• R454B Refrigerant
• Heating Operation Down to -22°F
• 24V / 485 Communication
• Electronic Expansion Valve (EXV)
• Requires a Compatible Matched Indoor Unit
