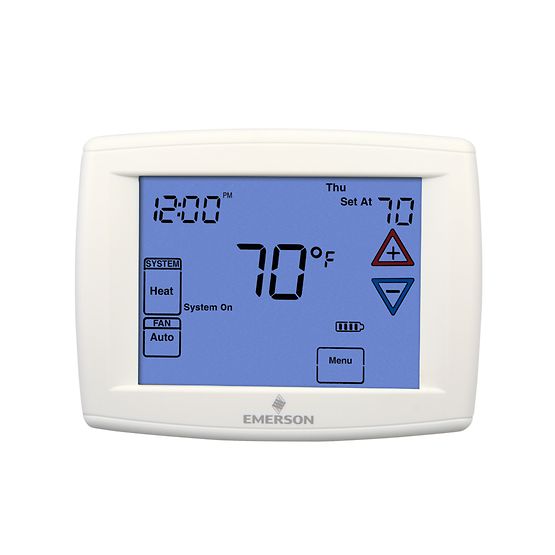

Features
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
- Humidification/dehumidification control
- Commercial model offers occupied damper or economizer control
- Keypad lockout and set-point temperature limits
Specifications
Program Options- Programmable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options- 4, 2, None
Stages Heat/Cool- Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
Style- Horizontal
Typical Applications- Gas/Oil/Electric
Terminals- RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
3-Wire Zone Valve Connections- Yes
Millivolt Compatible- Yes
Economizer Connections- No
Humidity Control- Yes, Humidification and Dehumidification Option
Heat Pump Dual Fuel Control- Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
Heat Pump Auxiliary Lockout Control - Outdoor Sensor OptionOutdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Remote Sensor Options- 1 Indoor or Outdoor
Power Source- Battery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool)- Yes
Fan Option- Auto, On, Programmable Fan or Comfort Circulating Fan
Filter Change Reminder- Yes
Energy Mgt. Recovery/Early Start- Yes
Keypad Lockout- Total or Partial
Set-Point Temperature Limits- Yes
Display Type- 12 square in.
Backlight- Key Press or Continuous with Common Wire
Voltage- 20 to 30 Vac 50/60 Hz
Amp Rating- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range- 45 to 99°F (7 to 37°C)
