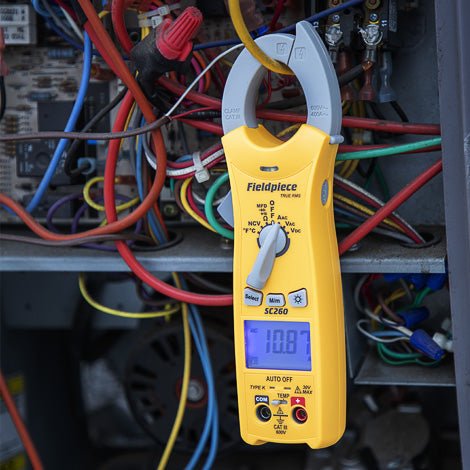

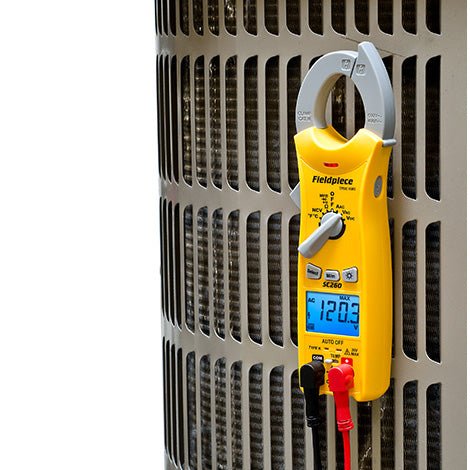

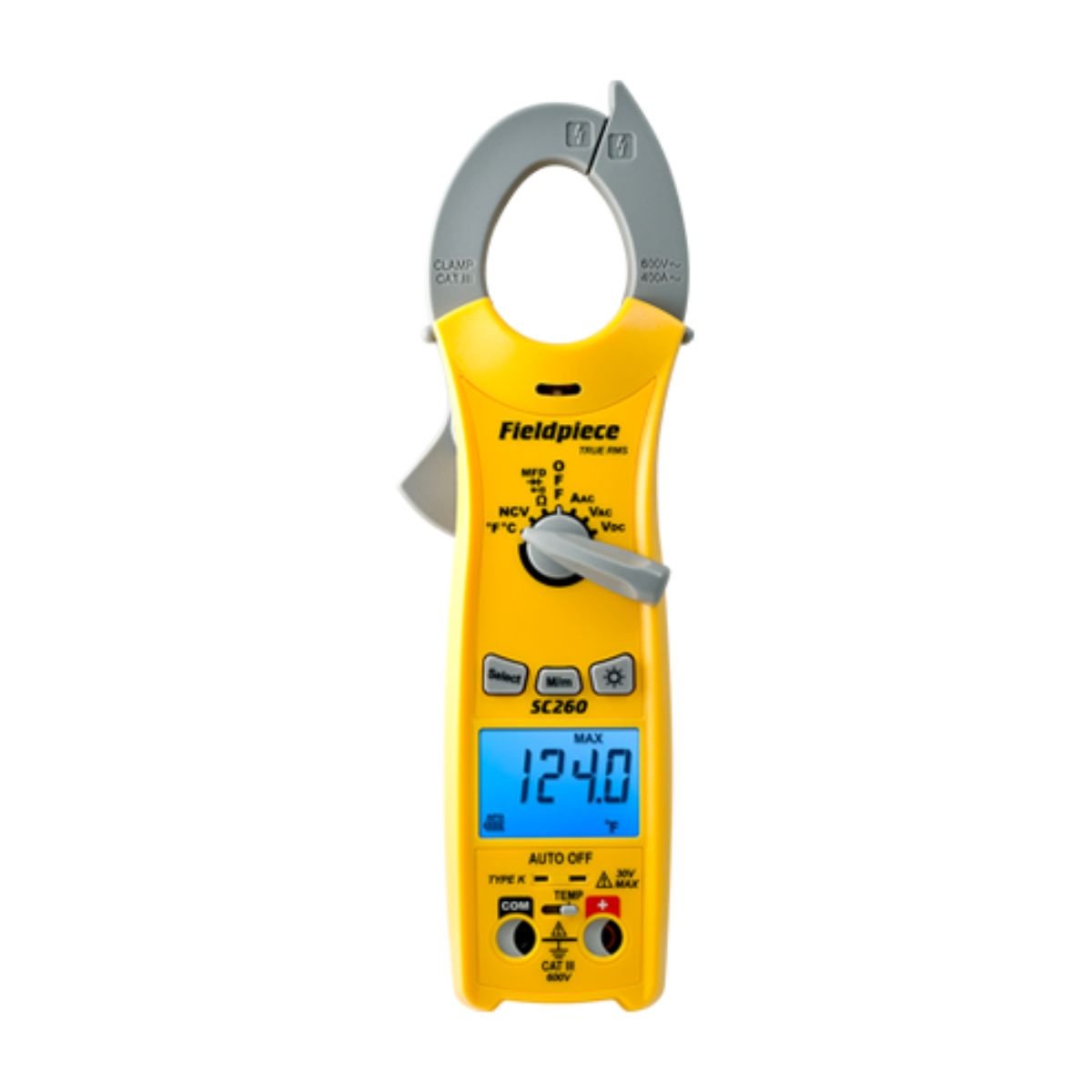

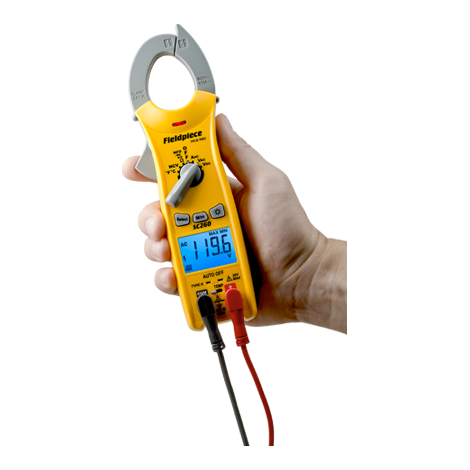

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements.
The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
Not just for small jobs.
- True RMS
- Volts AC/DC
- Temperature

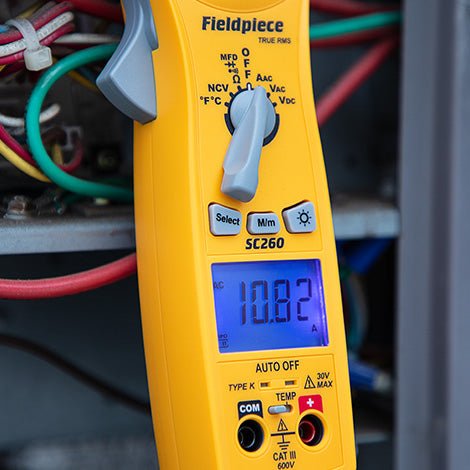

- Bright backlight
Display: 4000 count
Backlight: 5 minute duration with auto-off. Blue color. SC260 only
Overrange: (OL) or (-OL) is displayed
Measurement rate: 3 times per second, nominal
Zero: Automatic
Operating environment: 32°F to 122°F (0°C to 50°C) at <70% relative humidity
Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Accuracy: Stated accuracy @ 73°F ±9°F (23°C ±5°C), <75%RH
Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
APO (Auto Power Off): Approx. 30 minutes
Power: 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
Battery life: 200 hours typical alkaline (SC220/SC240); 150 hours typical alkaline (SC260)
Low battery indication: Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
Dimensions: 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
Weight: Approx. 265g including battery
Altitude: Up to 6562 ft (2000m)
Overload protection: 600 VDC or 600VAC rms unless otherwise stated
Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above. Included test leads are gold-plated and have removeable safety caps.

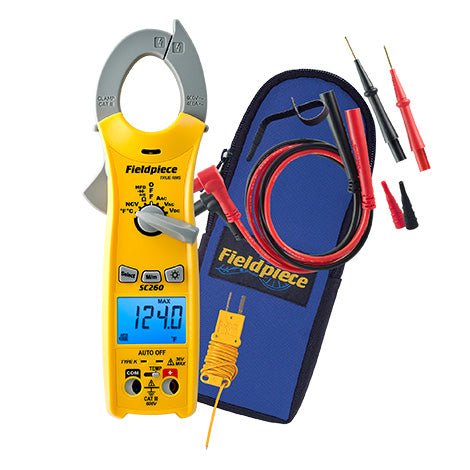

Includes:
(1) SC260 Compact Clamp Meter with True RMS
(1) ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
(1) ATB1 Wrap Tab Type K Thermocouple
(1) Velcro Strap
(1) 9V Battery
(1) ANC4 Padded Case
