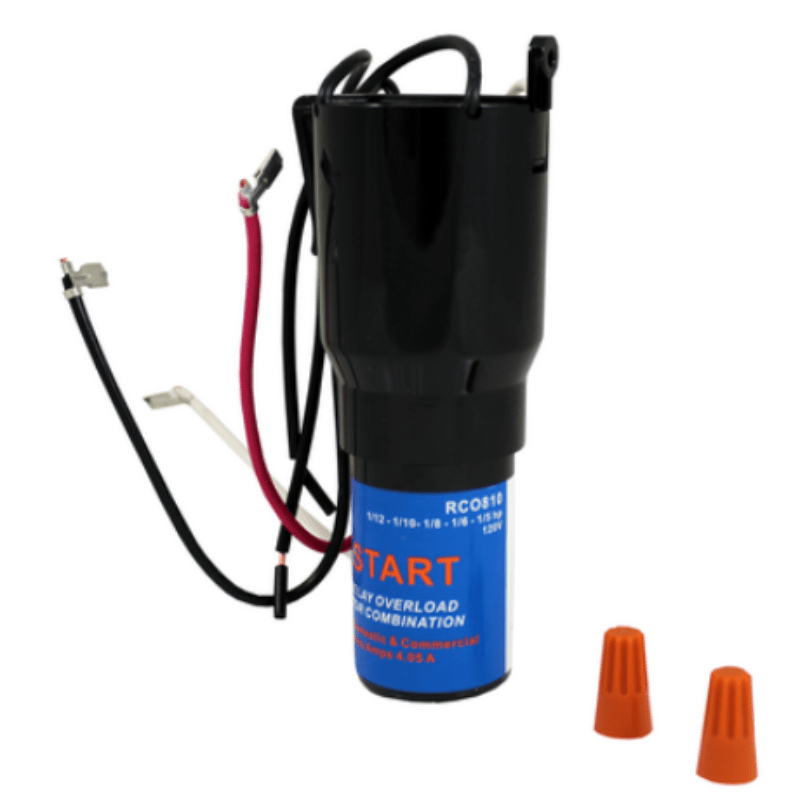

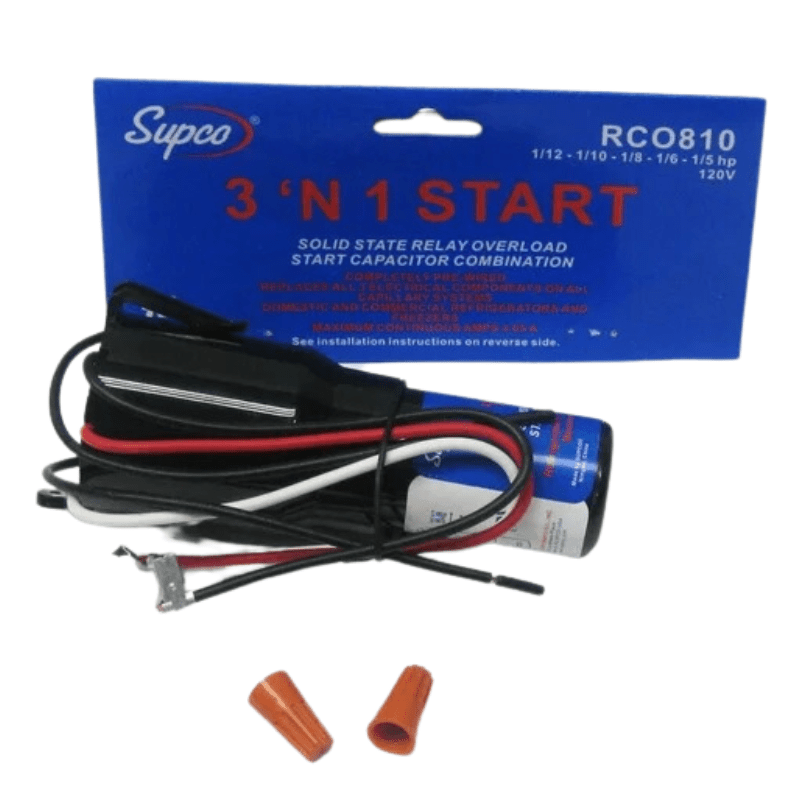

110 to 125VAC Solid-state Hardstart Relay, includes relay, overload, and start capacitor. Used on refrigeration systems with or without run capacitors. Rated for 1/12 HP to 1/5 HP compressors. Maximum RLA 4.05 Amps.
Features/Benefits
Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
ULĀ® Recognized

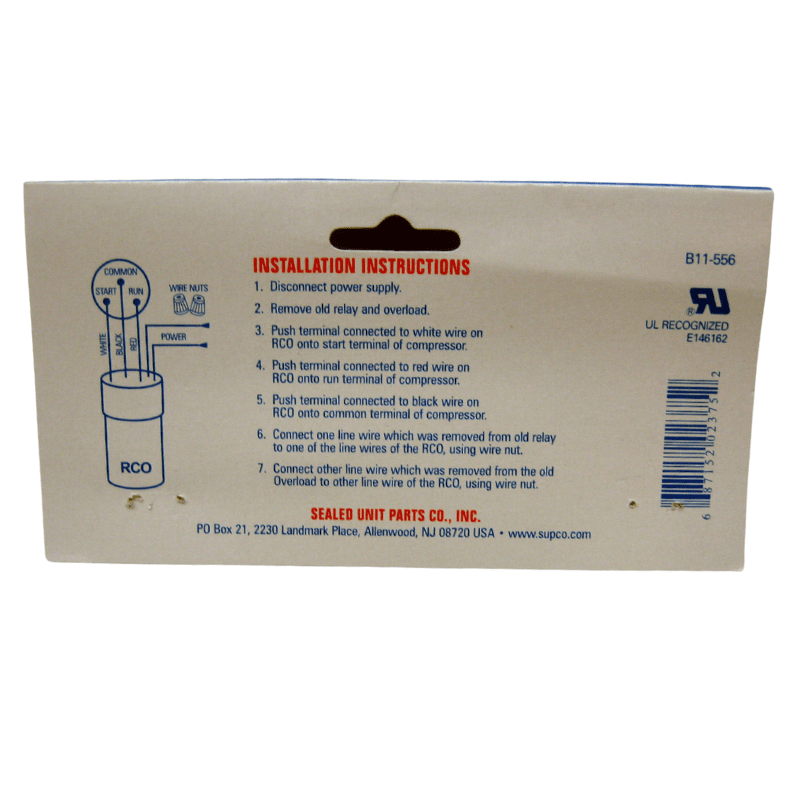

Wire Designations - White/Start, Black/Common, Red/Run
Specifications
Mounting: Quick connect
HP rating: 1/12 - 1/5
Voltage: 115V
Maximum Continuous RLA: 4.05A
Capacitance: 145 to 175 MFD
Applications
For all capillary systems
Select the right match to replace refrigerator compressor relay and overload units from 1/12 through 2/3 hp, 115-230 VAC
FAQ
-Do you have a 3-In-1 for 3/4 HP?: No, 1/2 HP is maximum.
-Can a 3-In-1 be installed permanently?: Yes.
-What size 3 in 1 should I choose?: Sizing is based on the HP rating of the compressor, and the continuous running amperage.
-What is the difference between the RCO and URCO series? : The URCO has an additional set of leads to accommodate a run capacitor.
