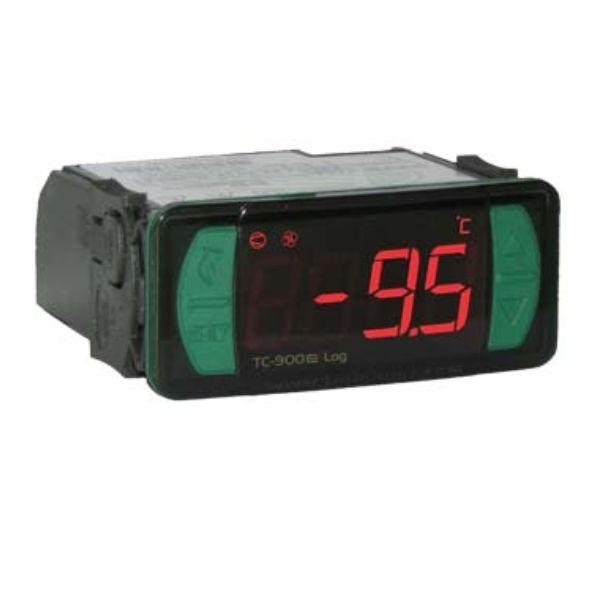

120/240V, 3 RELAYS, CUMMUNICATION, NTC PROBE FREEZER CONTROL
120/240V, 3 RELAYS, CUMMUNICATION, NTC PROBE FREEZER CONTROL
SKU: TC-900E-LOG
PRODUCT TYPE: Temperature Controllers
Features & Specifications
Features & Specifications
For frozen goods, it automates the defrosting process according to the needs of the facility (intelligent defrosting), providing energy savings. It operates with two sensors, one for room temperature and the other, fastened to the evaporator, that controls defrosting completion and fan restarting. The room temperature control has a normal setpoint and an economy setpoint, in addition to the fast freezing functionality and alarm functions indicating that the door is open. It features up to two digital inputs. One of these inputs may be configured as sensor 3* to monitor the condenser temperature and disconnect the control outputs in case of an alarm. It also features a digital filter, which is intended to simulate an increase of the mass of the room temperature sensor (S1), thus increasing its response time (thermal inertia), and avoiding unnecessary compressor activations. Its 16-Amp relay output can control compressors of up to 1 hp and the defrost output has a current capacity of 10 Amp.
TC-900E Log contain an hourmeter to count the operating hours of the compressor, and an internal real time clock that enables the creation of a defrost schedule for each day of the week. Besides, with the help of an internal auxiliary power supply, the clock keeps working even in case of a power fault for at least 72 hours.
It also has an internal memory for storing data (datalogger) and a sensor to activate the economy setpoint according to the intensity of light.
This product is CE, UL and NSF certified. According to UL laboratory tests, this product is also suitable for installations with R290 and R600a gases.
It has a serial communication for connection to Sitrad.
Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.
* sold separately
Dimensions: 71 x 28 x 71 mm
Application example: walk-in and display freezers.
