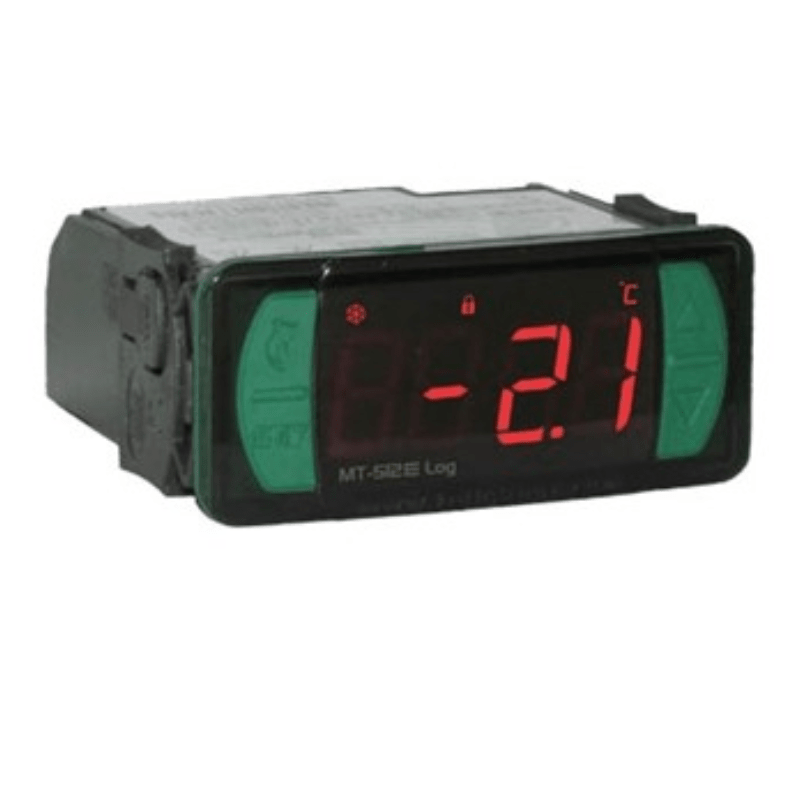

120/240V DIGITAL CONTROLLER FOR MED AND HIGH TEMP APPLICATION

MT-512E-LOG
Full Gauge
Designed for cooling or heating application. MT-512E-LOG is equipped with 1 powerful 2HP relay, 1 temperature sensor, 1 digital input, data logger, cyclic time for natural defrost, IP65 frontal, min-max temperature record, sensor response time control, fast freezing mode, tamper-proof function, control functions shutdown, and RS485 serial communication port for Sitrad real-time monitoring and management.

Application Refrigerated displays • Walk-in coolers • Hot cabinets • Greenhouses
Power Supply 115 or 230V AC, 50/60Hz
Control Temperature -58 to 221F (-50 to 105C)
Operating Temperature 32 to 122F (0 to 50C)
Maximum Output NO -16A / 2HP NC - 500W / 1/10HP
Operation Humidity 10 to 90% RH (without condensation)
Dimensions 76 x 34 x 77 mm (WxHxD)
