• 12,000 BTU Cooling and Heating Capacity
• 208/230V, 60Hz, Single-Phase Power Supply
• 22.1 SEER2 and 12.3 EER2
• R454B Refrigerant
• Outdoor Heating and Cooling Operation Down to -13°F

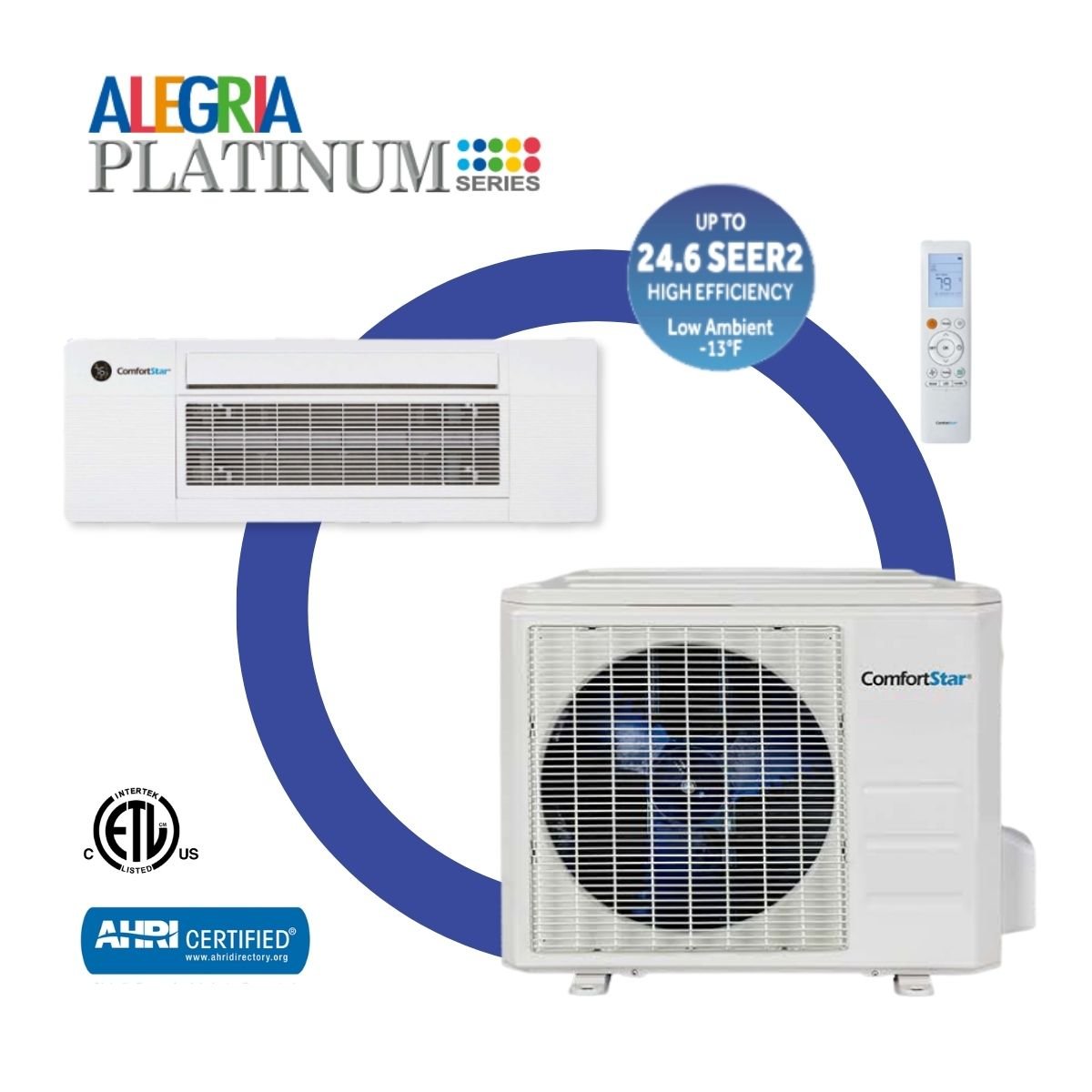

• One-Way Cassette Indoor Unit
• Built-In Condensate Pump
• Built-In Circuit Breaker
• Humidity Sensor
• Refrigerant Leak Detection Sensor
• Fan Speed Stages from 1–100%
• Wi-Fi Capable via Wi-Fi USB or Compatible Wired Control

Unit Size - Inches (W x D x H):

Indoor - 50.31x13.19x8.98
Outdoor - 30.12x11.93x21.85

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 312.0/264.9/182.5
Outdoor - 1,236.1

Tonnage: 1

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 38/34/24
Outdoor - 54.5

Heat Capacity (BTU): 12,000

Cooling Capacity (BTU): 12,000

Placement: Light Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft):

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in):
