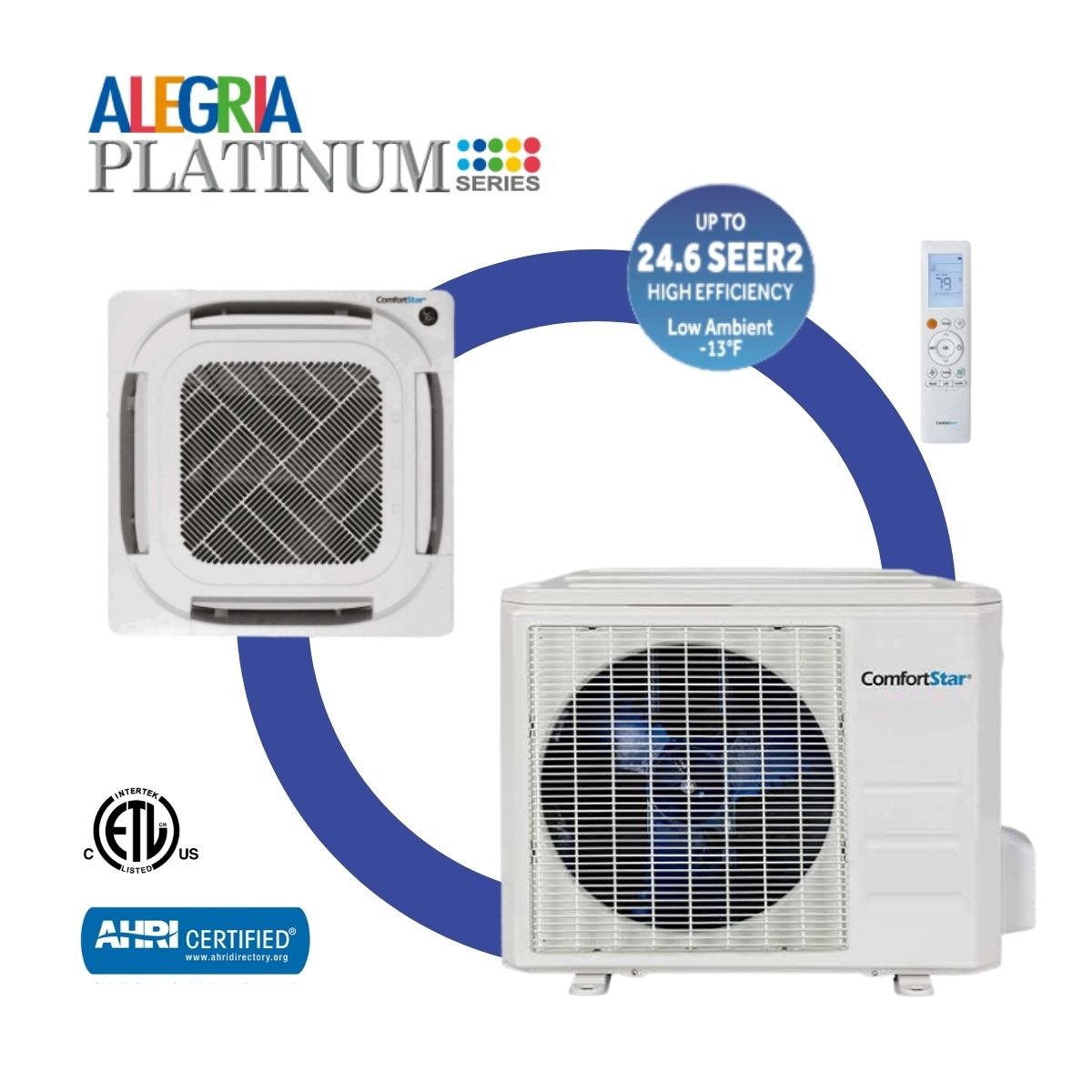

• 12,000 BTU Cooling and Heating Capacity
• 208/230V, 60Hz, Single-Phase Power Supply
• 21.1 SEER2 and 12.5 EER2
• R454B Refrigerant
• Outdoor Heating and Cooling Operation Down to -13°F
• 4-Way Cassette Indoor Unit
• 360° Airflow
• Built-In Condensate Pump
• Humidity Sensor
• Refrigerant Leak Detection Sensor
• Fan Speed Stages from 1–100%
• Wi-Fi Capable via Wi-Fi USB or Compatible Wired Control

Unit Size - Inches (W x D x H):

Indoor - 22.44x22.44x9.65
Outdoor - 30.12x11.93x21.85

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 364.9/306.1/194.2
Outdoor - 1,236.1

Tonnage: 1

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 42/38.5/26.5
Outdoor - 54.5

Heat Capacity (BTU): 12,000

Cooling Capacity (BTU): 12,000

Placement: Light Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft):

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in):
