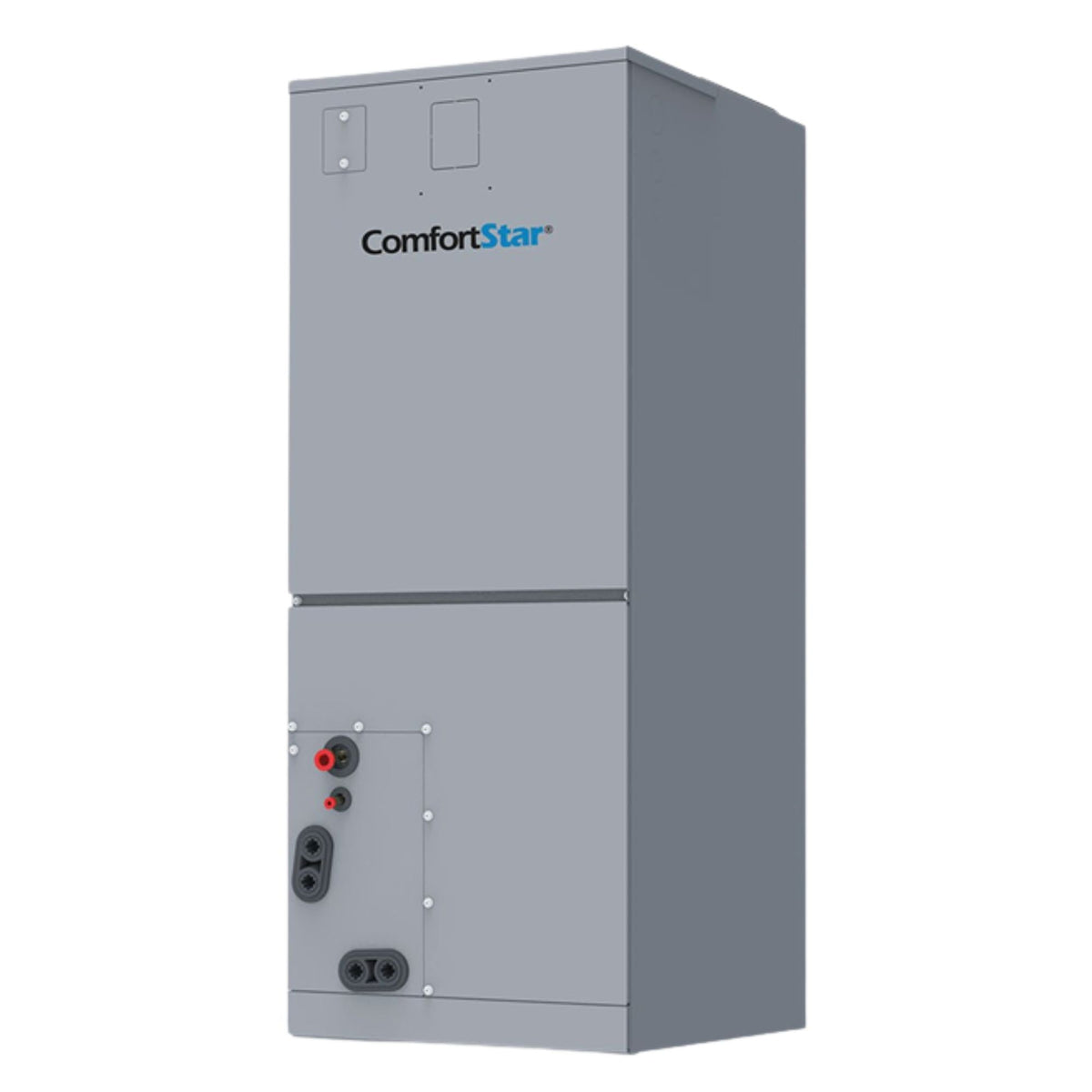

18K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

Name: 18K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2
Brand: COMFORTSTAR
SKU: AHU3-18-SG3
Availability: OutOfStock

18K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

SKU: AHU3-18-SG3

BARCODE: AHU3-18-SG3

PRODUCT TYPE: Air Handlers

Product variants

Quantity

Click Here to View CPR3 & CPH3 Catalog

View full details

Refrigerant Type: R454B

Unit Size - Inches (W x D x H): 17.52 x 21.02 x 45.00

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 618.0 / 576.8 / 529.7 / 488.5

Tonnage: 1.50

dB(A) Noise Level (Hi / Mi / Lo): 41/39/33

SEER2: Up to 19 SEER2

EER: Up to 12.5

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 18000

Cooling Capacity (BTU): 18000

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 105.82/126.76

Features

•Designed for 18K heating and cooling applications.
• Compact Cabinet: Measures 21.02" D x 17.52" W x 45.00" H.
• Adjustable Airflow: Delivers up to 618 CFM in Turbo mode, with 488.5 CFM at low speed.
• Low-Speed Sound Level: Operates at 33 dB(A) on low speed.
• Universal Multi-Position Installation: Supports upflow, downflow, horizontal-left, and horizontal-right configurations.
• 24V Thermostat Compatibility: Can be controlled with any 24V heat pump thermostat.
• Existing Line-Set Compatibility: Designed to work with existing refrigerant line sets.
• Optional Auxiliary Heat: Supports field-installed electric heat strip options.
• Accessory-Ready Design: Includes dedicated wiring ports for a UV light and humidifier.
• Easy Maintenance: Designed for straightforward service access
