COMFORTSTAR

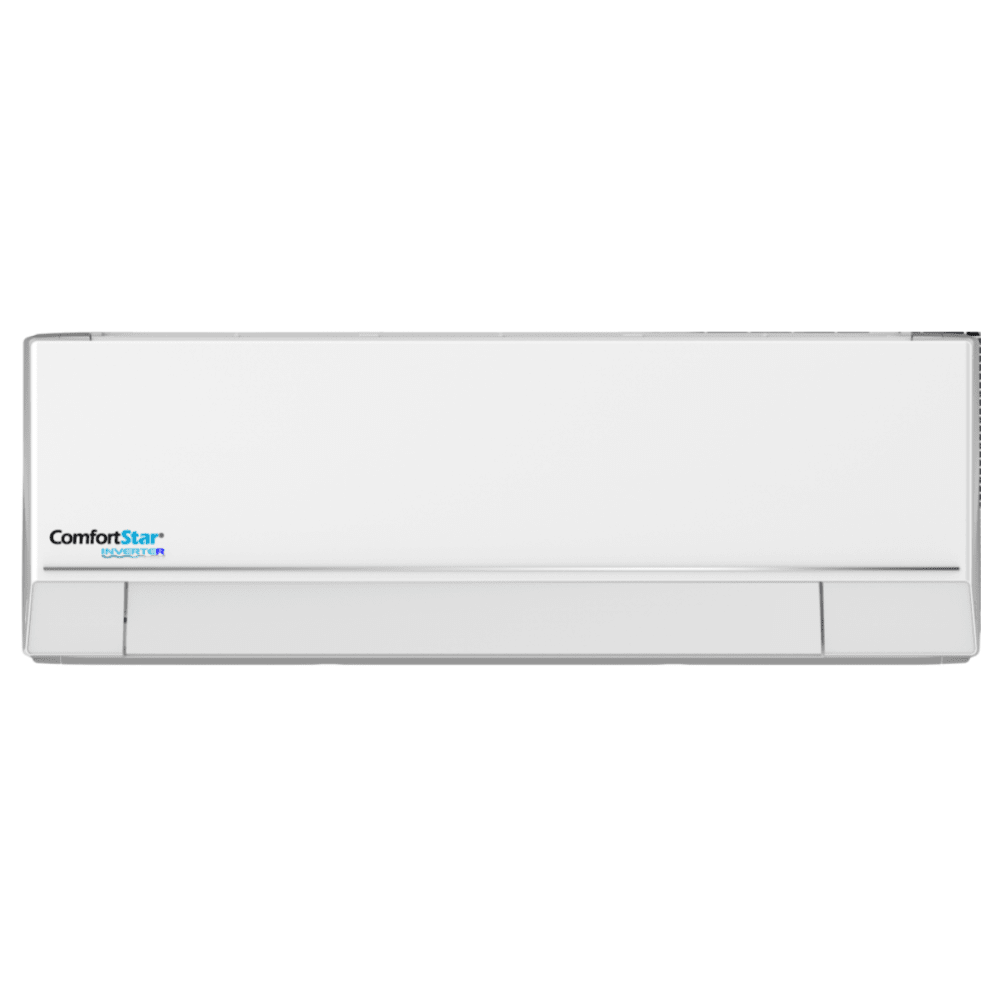

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF18CD(I)

PRODUCT TYPE: Highwall Units

Free Lift Gate
Tax included.

Expedited Shipping

System Gross Weight: 37.48 (lbs.)
View full details
Unit Size - Inches (W x D x H): 40.04x9.53x12.56
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 523.53/376.47/305.88
Tonnage: 1.50
dB(A) Noise Level (Hi / Mi / Lo): 46.5/43/32.5
SEER: Refer to Outdoor Multi-zone Unit Selected
EER: Refer to Outdoor Multi-zone Unit Selected
Heat Capacity (BTU): 18000
Cooling Capacity (BTU): 18000
Placement: Indoor Highwall Unit
Indoor Unit Net/Gross Weight (lbs.): 28.66/37.48

Features

Multi-zone Combinations - Compact Design • Energy Efficient • Flex-Mount Indoor High Wall - Heat Pump 10,000 BTUH .

✔ Manual Power Switch: Power unit ON/OFF using button located at the evaporator.
Interactive Display shows: – Error codes based on system failure. – Service codes if your filter needs cleaning. – Error code if refrigerant leak is detected.
– When unit goes into auto defrost.
✔ Self-Diagnosis: Unit will shut down and go into protection mode if it detects abnormalities. The display will show an error code depending on the type of protection the unit is in.
✔ Bypass Mode: Unit will continue to operate if a non-critical component fails, such as a sensor.
✔ 2-Way Draining Option: Ability to place drain hose on either left or right hand side of evaporator allows for flexible installation design.
✔ 3 Directional Airflow: Air flow is directed so that it reaches more surface area including the corners of the room being conditioned.
✔ Mute Operation: Silence from the Remote Control.
✔ Follow Me Function: Remote Control has a sensor built in. In this mode, the unit will sense the temperature at the Remote Control instead of at the indoor unit for the set temperature.
✔ Controls: Wired Controls (optional) WiFi Control – Cool Link installed in unit (optional)
