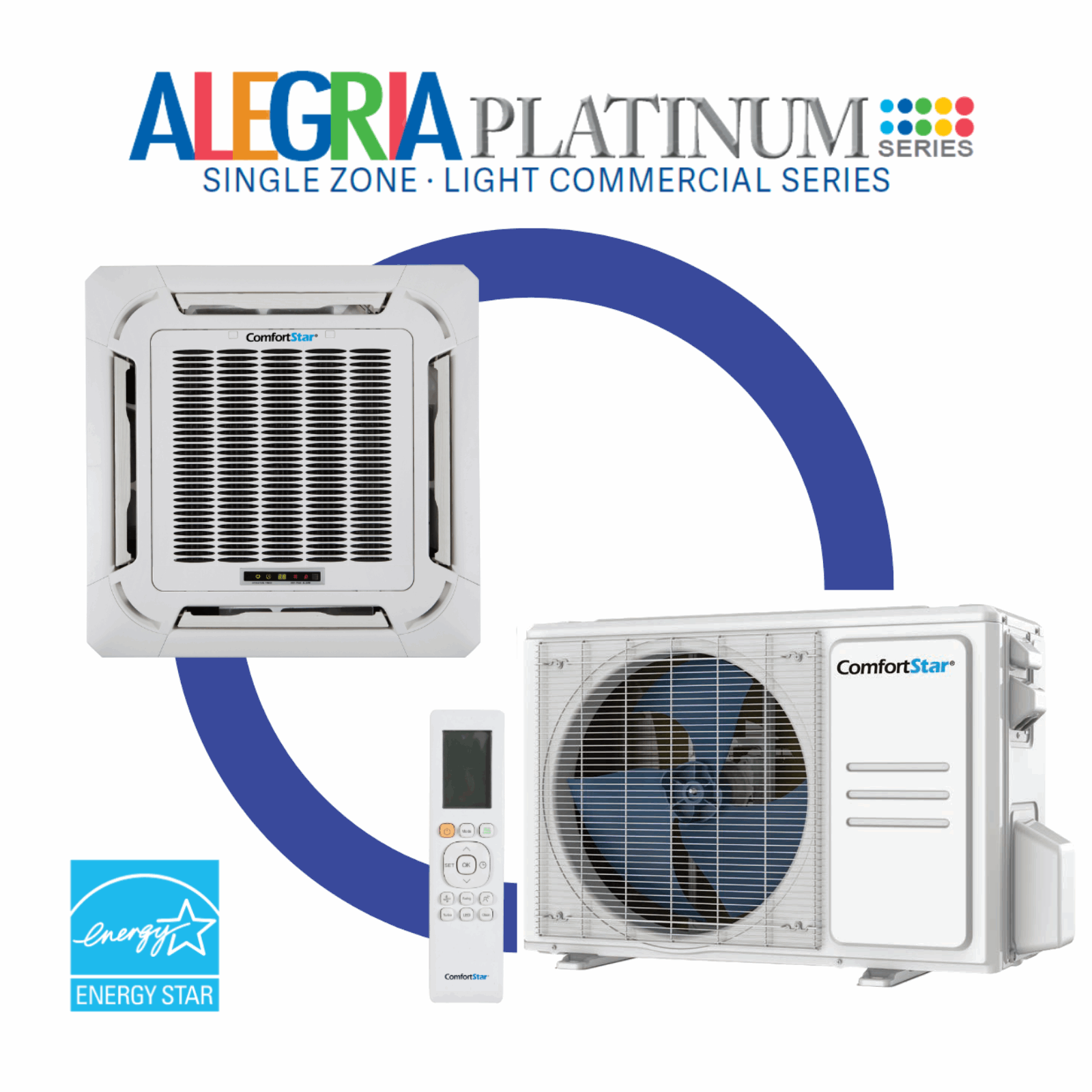

18K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL CASSETTE SYSTEM – 20.5 SEER2

SKU: CZPCD-TPA-18

BARCODE: CZP18CD(O) + TPA18

PRODUCT TYPE: Cassettes

Product variants

Tax included.

Expedited Shipping

System Gross Weight: 148.81 (lbs.)

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

TPA TIP Instruction Manual

Submittals

TPA18-CZP18CD(O)

View full details

SEER2: 20.5

EER2: 12.5

HSPF2-4: 10.5

HSPF2-5: 8.0

Max. Allowable Piping Length (ft): 98

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 66

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 1/2"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 35.71/46.96

Outdoor Unit Net/Gross Weight (lbs.): 95.02/101.85

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor 4 way Cassette
• Compact Design
• Concealed Ceiling Unit
• Quiet Operation
• 360° Air Discharge
• Wireless Remote Control (standard)
• Programmable Wired Remote (optional)
• Wired Wall Remote (optional)
• Available Fresh Air Intake
• Integrated lift Pump (29” head)
• Wi-Fi Compatible

Specifications

Unit Size - Inches (W x D x H):

Indoor - 22.44x22.44x10.24
Outdoor - 35.04x13.46x26.50

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 562.35/485.29/438.82
Outdoor - 1764.7

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 43.5/38.5/35.5
Outdoor - 58

Heat Capacity (BTU): 19000

Cooling Capacity (BTU): 16000

Placement: Light Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
