• 17,000 BTU Cooling Capacity
• 20,000 BTU Heating Capacity
• 208/230V, 60Hz, Single-Phase Power Supply
• 20.0 SEER2 and 12.5 EER2
• R454B Refrigerant
• Outdoor Heating and Cooling Operation Down to -13°F

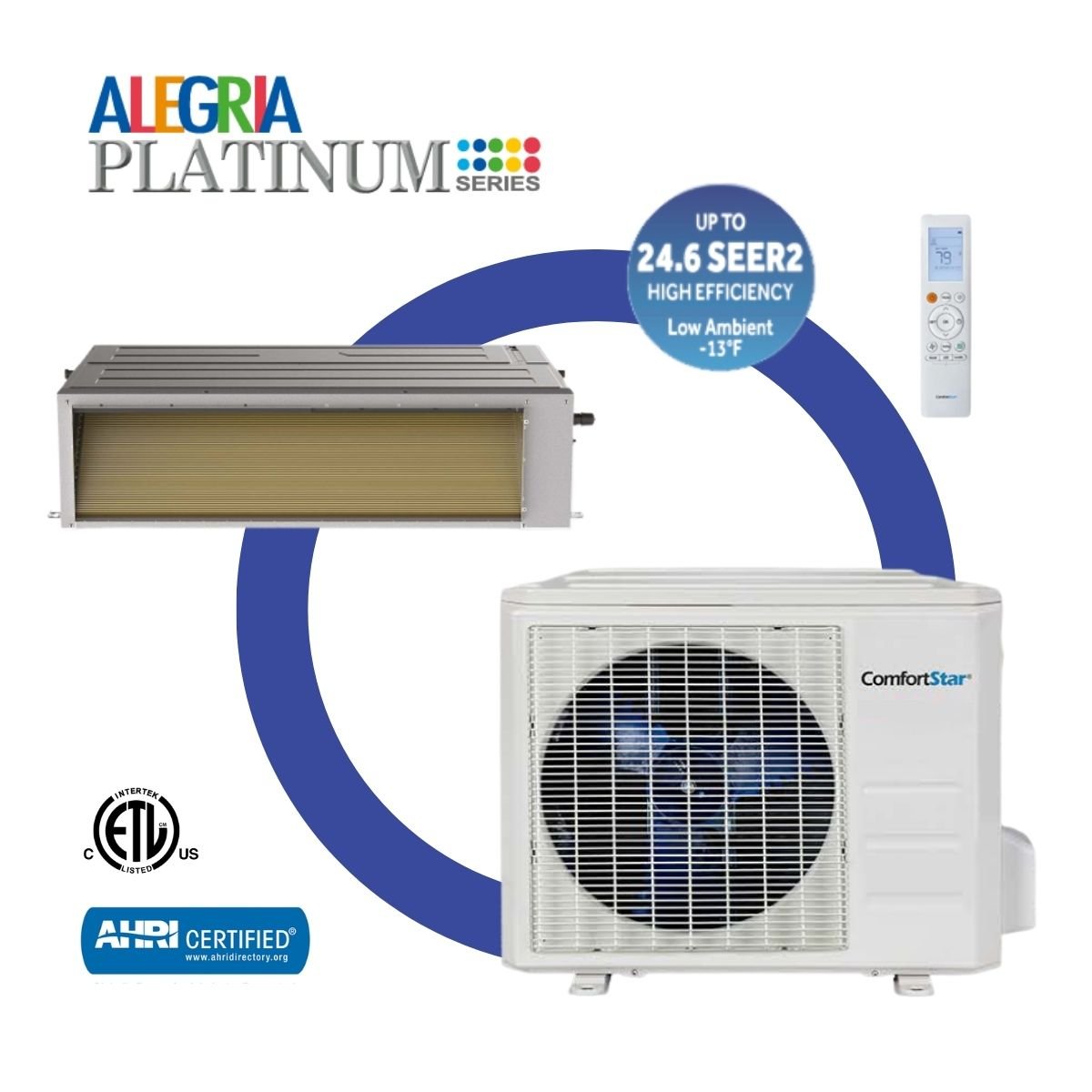

• Ducted Fan Coil for Horizontal or Vertical Installation
• Four Static Pressure Settings
• Built-In Condensate Pump
• Optional Constant Airflow
• I-Clean Function
• Refrigerant Leakage Detection Sensor
• Fan Speed Stages from 1–100%
• Wi-Fi Capable via Wi-Fi USB or Compatible Wired Control
• Multiple Control Options, Including Wireless Remote and Third-Party 24V Thermostat

Unit Size - Inches (W x D x H):

Indoor - 34.65x26.54x8.27
Outdoor - 35.04x13.46/26.50

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 352.94/282.35/176.47
Outdoor - 1294.1

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 40.5/39/38
Outdoor - 59

Heat Capacity (BTU): 17,000

Cooling Capacity (BTU): 20,000

Placement: Light Commercial Applications

Breaker Size (A): 15/20

Factory Refrigerant Charge (ft):

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in):
