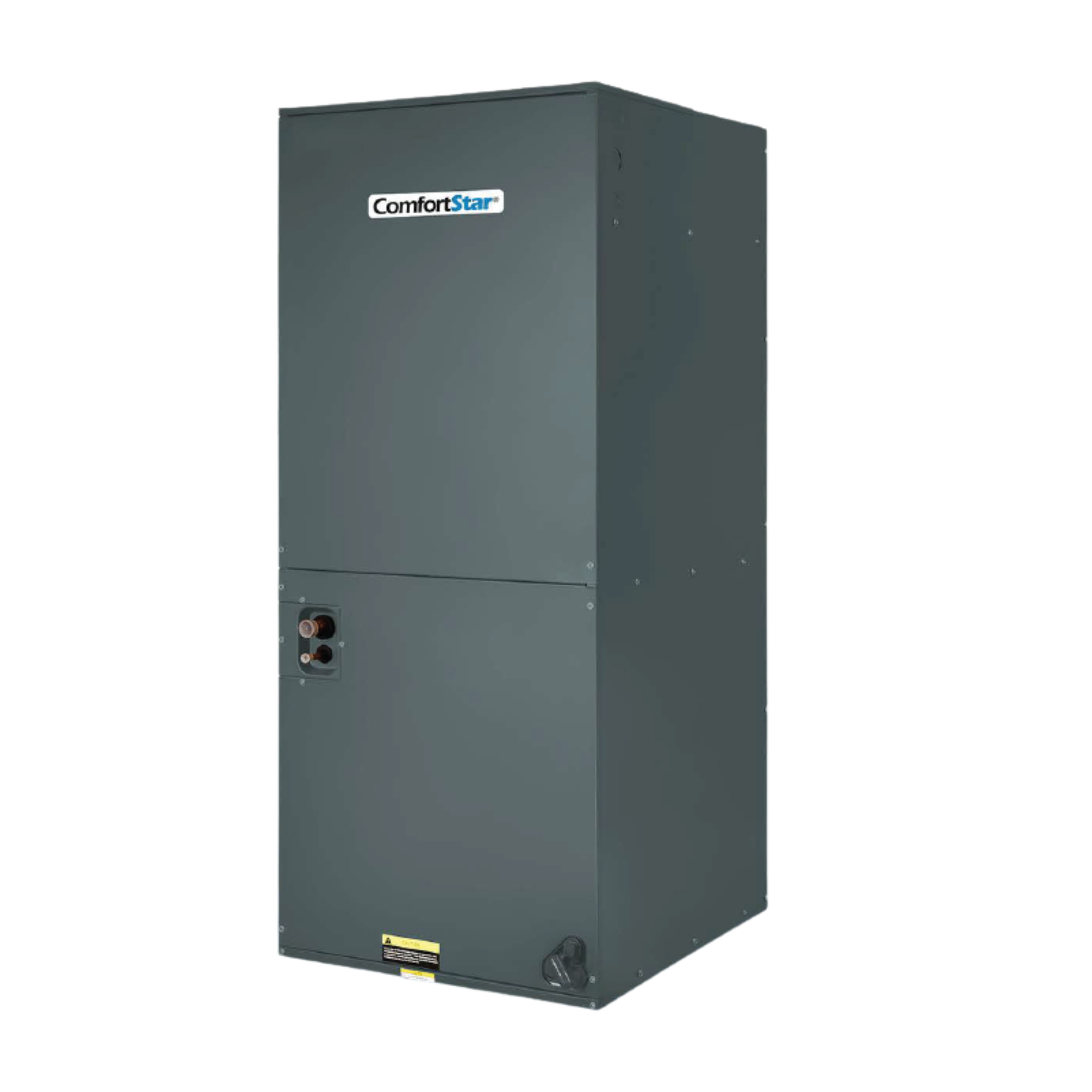

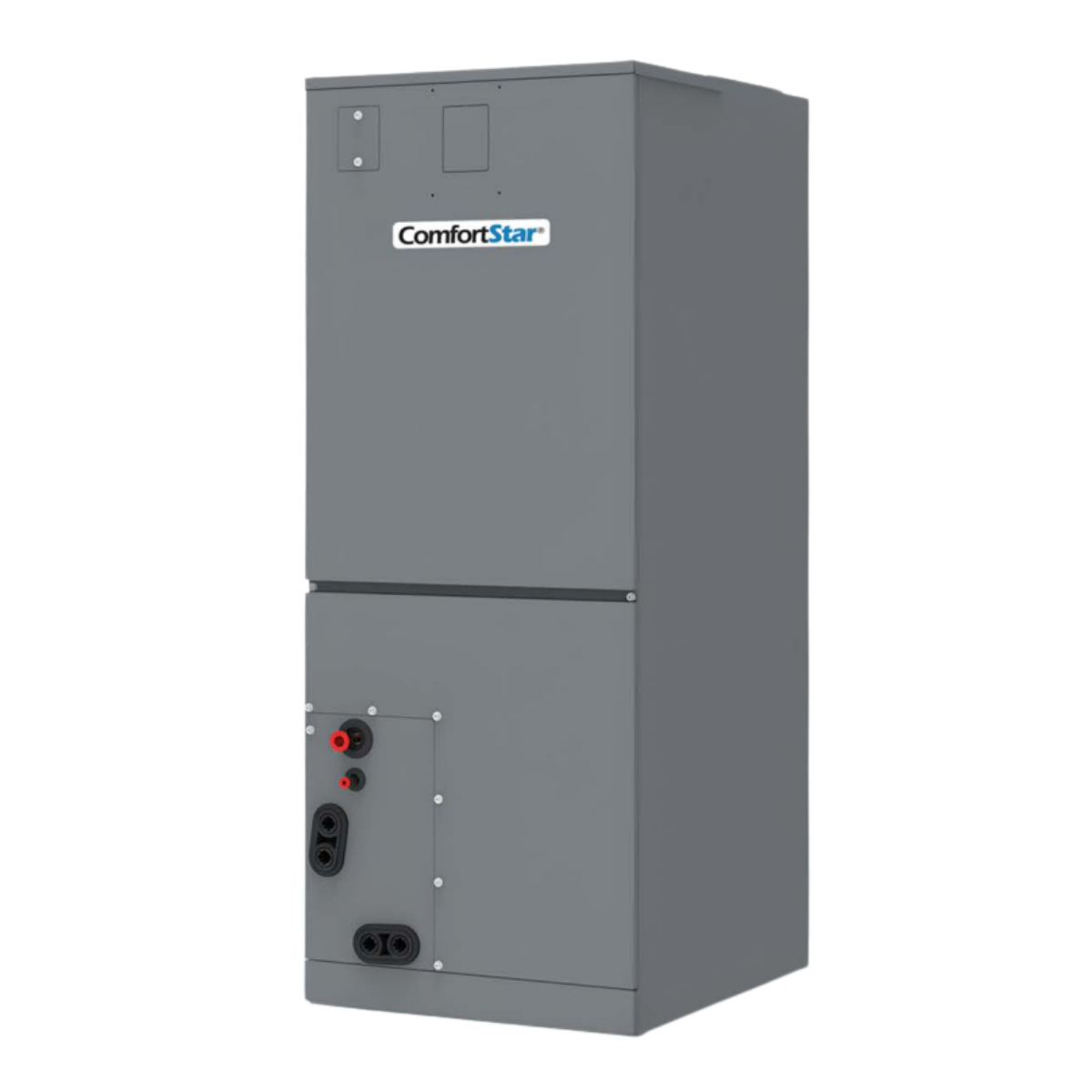

18K LUC17 - MULTIPOSITION AIR HANDLER - 14.3 SEER2

Name: 18K LUC17 - MULTIPOSITION AIR HANDLER - 14.3 SEER2
Brand: COMFORTSTAR
SKU: LUC17-18-15
Availability: InStock

18K LUC17 - MULTIPOSITION AIR HANDLER - 14.3 SEER2

SKU: LUC17-18-15

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

Quantity

Click Here to View the Product Catalog

View full details

Refrigerant Type: R32

Unit Size - Inches (W x D x H): 19-5/8×22×45-3/4

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 690

Tonnage: 1.50

dB(A) Noise Level (Hi / Mi / Lo): 50

SEER2: 14.3

EER: 11.7

Operating Mode: Mode by Outdoor Unit

Heat Capacity (BTU): Electric Heat Kit for Field Installation (5kw, 7.5kw and 10kw)

Cooling Capacity (BTU): 18,000

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 119/133

Features

• Multi-Position Installation – 4-way convertible design adapts to a wide range of installation scenarios

• Extended Piping Capability – Supports long piping runs and vertical lift for flexible system layouts

• Refrigerant Leakage Sensor – Enhances system protection and operational safety

• High-Quality Evaporator Coil – Inner-grooved copper tubing with aluminum fins for superior heat transfer

• ECM Motor & Blower Assembly – Delivers high efficiency, quiet operation, and precise airflow control

• Factory-Installed Piston Metering Device – Ensures reliable refrigerant flow and consistent performance

• Insulated Cabinet – Reduces noise and minimizes condensation

• Service-Friendly Design – Blower wheel and coil slide out easily for simplified maintenance

• Optional Field-Installed Electric Heater Kits – Available in multiple kW options to meet heating requirements

• AHRI Listed & ETL Certified – Meets recognized industry performance and safety standards
