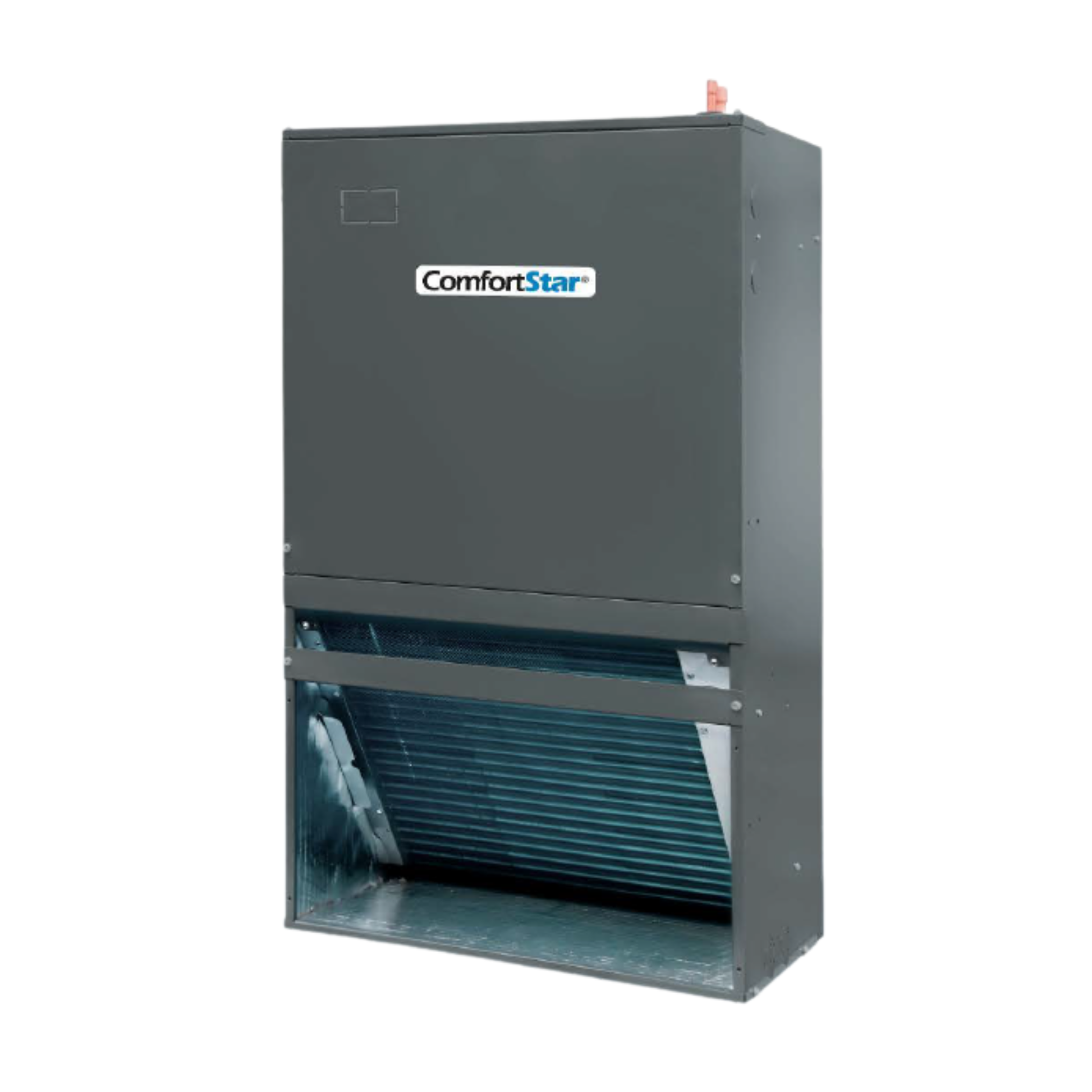

18K WALL MOUNTED CWM17 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2

Name: 18K WALL MOUNTED CWM17 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2
Brand: COMFORTSTAR
SKU: CWM17-18-15
Availability: InStock

18K WALL MOUNTED CWM17 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2

SKU: CWM17-18-15

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

Quantity

Click Here to View the Product Catalog

View full details

Refrigerant Type: R32

Unit Size - Inches (W x D x H): 20-1/2"×36-1/2"×15"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 630

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo): 51

SEER2: 14.3

EER: 11.7

Operating Mode: Mode by Outdoor Unit

Heat Capacity (BTU): Electric Heat Kit for Field Installation (5kw, 7.5kw and 10kw)

Cooling Capacity (BTU): 18,000

Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 44.5

Features

• Front or Bottom Air Return – Cabinet easily converts to bottom return by removing the cross brace or base pan panel

• Wall or Stud Mount Installation – Flexible mounting options for various applications

• Factory-Standard Front Return – Convertible to bottom return for added installation versatility

• Compatible with Cooling-Only and Heat Pump Condensing Units

• Quiet Operation – Designed for low sound levels

• Optional Auxiliary Electric Heaters – Available in 5 kW, 7.5 kW, and 10 kW options

• ECM Constant Torque Motor – Provides consistent airflow and improved energy efficiency

• High-Efficiency Coil Design – Copper tubing with aluminum fins for reliable heat transfer

• Factory-Installed Piston Metering Device – Ensures stable refrigerant control

• Durable Metal Cabinet – Lined with foil-faced insulation to reduce noise and condensation

• Standard Thermostat Compatibility

• Compact Cabinet Design – Ideal for space-limited installations

• Integrated Refrigerant Leak Sensor – Enhances system protection and safety
