Features & Specifications
Features & Specifications

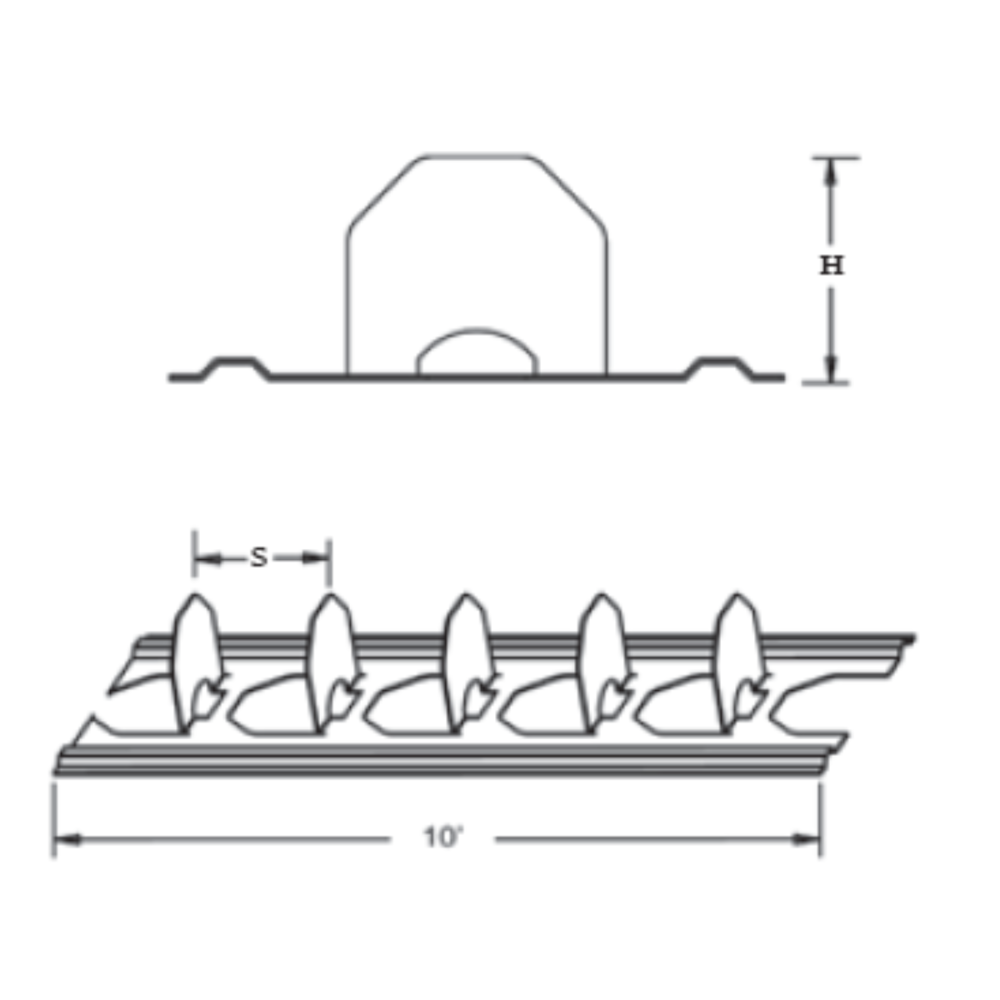

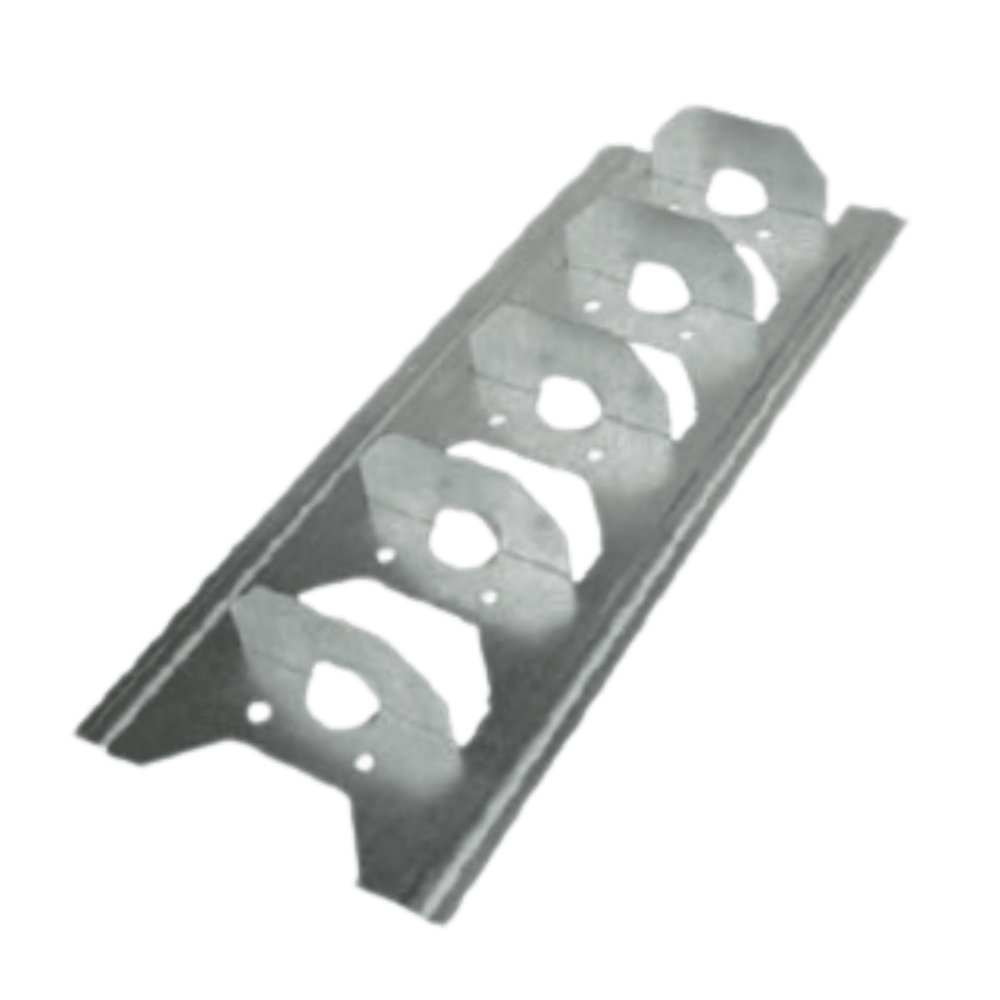

Elgen’s 2” & 4” Double Wall Turning Vane Rail is used in conjunction with Elgen’s 2” & 4” Double Wall Turning Vane.
Elgen’s 2” & 4” Double Wall Turning Vane Rail is used for securing and aligning Elgen’s 2” & 4” Turning Vanes. This process directs the airflow through rectangular elbows.
Conforms to SMACNA spacing requirements. Refer to 2005 SMACNA-Figure 4-3.
Holes provide for easy alignment.
Can be used with other vane systems.
Union Made Yellow Label.
