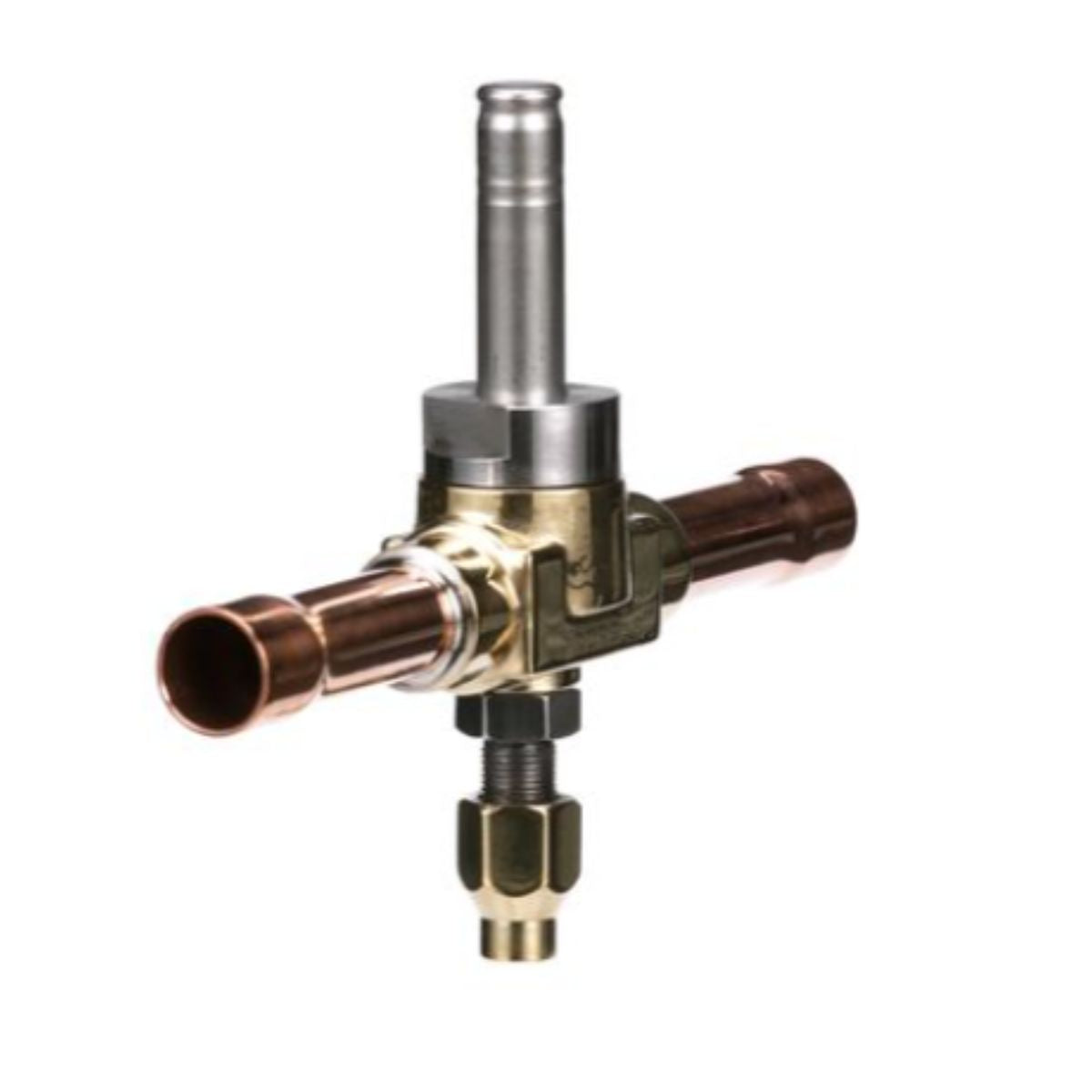

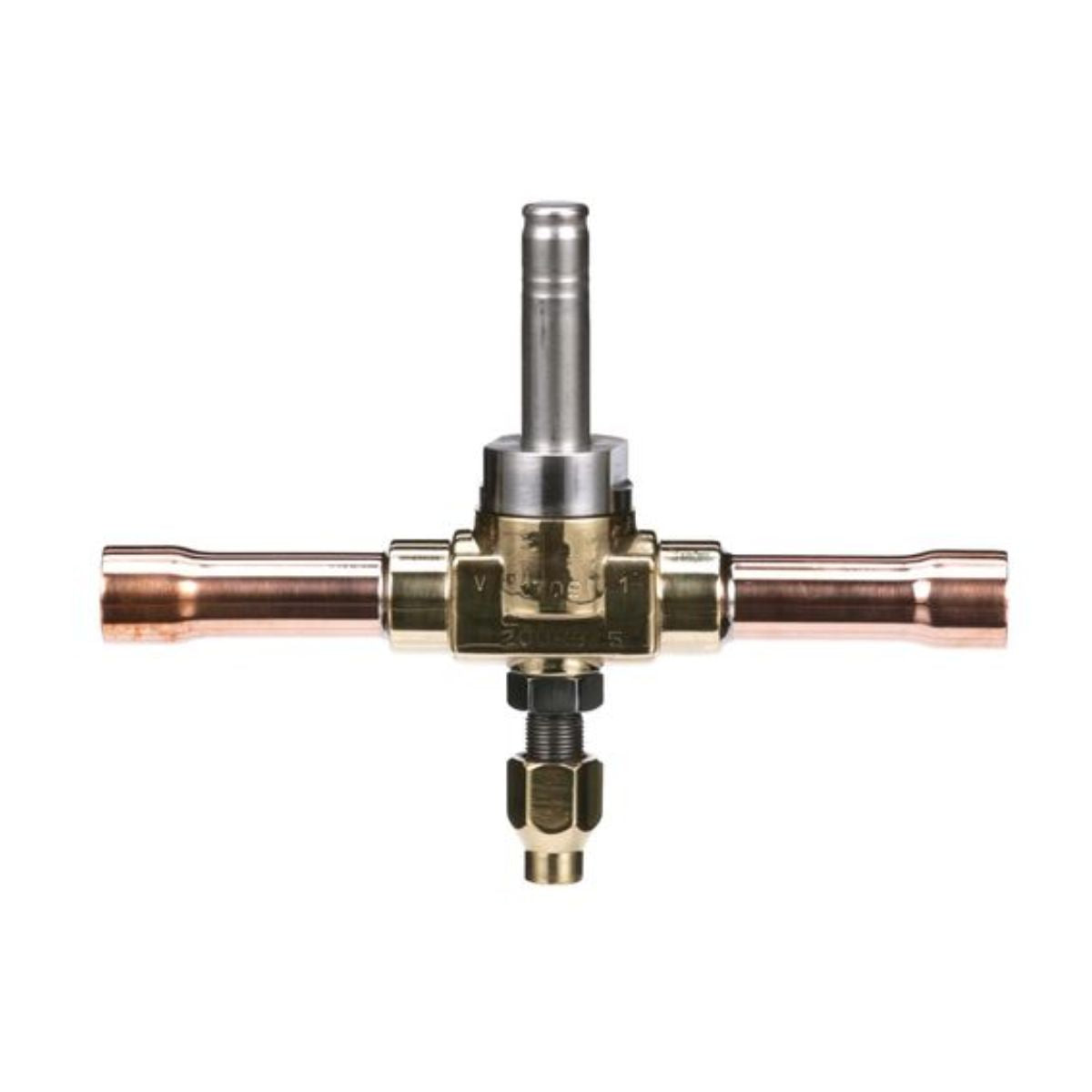

200RB 7T7VLC - 7/8" ODF REFRIGERANT SOLENOID VALVE

The 200RD is a pilot-operated, 2-way, normally closed, solenoid valve that is suitable for all refrigerants, including R-410A and R-744. 200RD valves are used for liquid, discharge, or suction gas refrigerant service.

• One coil fits all valve sizes.
• Extended ends for easy installation (standard).
• Long-life molded coils.
• PTFE O-ring for superior external sealing.

Valve Type - Pilot Operated, 2-Way, Normally Closed
Port Size - 7/16”
Inlet Connection Size - 7/8 in. ODF Extended End
Outlet Connection Size - 7/8” ODF Extended End
Special Feature - Standard Valve
Maximum Fluid Temperature - 250°F
Maximum Working Pressure - 680 psig
Minimum Operating Pressure Drop - 2 psi
MOPD - 300 psig
Approvals - UL/CUL File Number MP604

NOTE: Mounting enclosing tube more than 90D off vertical up position is not recommended.

NOTE: MOPD based on AC application. Consult application engineer for DC application.
