24K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

24K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

SKU: AHU3-24-SG3

BARCODE: AHU3-24-SG3

PRODUCT TYPE: Air Handlers

Free Lift Gate

Expedited Shipping

System Gross Weight: 127.43 (lbs.)
View full details
Refrigerant Type: R454B
Unit Size - Inches (W x D x H): 17.52 x 21.02 x 45.00
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 824.0 / 759.3 / 694.5 / 629.8
Tonnage: 2
dB(A) Noise Level (Hi / Mi / Lo): 44/42/28
SEER2: Up to 19 SEER2
EER: Up to 12.5
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 24000
Cooling Capacity (BTU): 24000
Placement: Indoor Air Handler Unit
Indoor Unit Net/Gross Weight (lbs.): 105.60/127.43

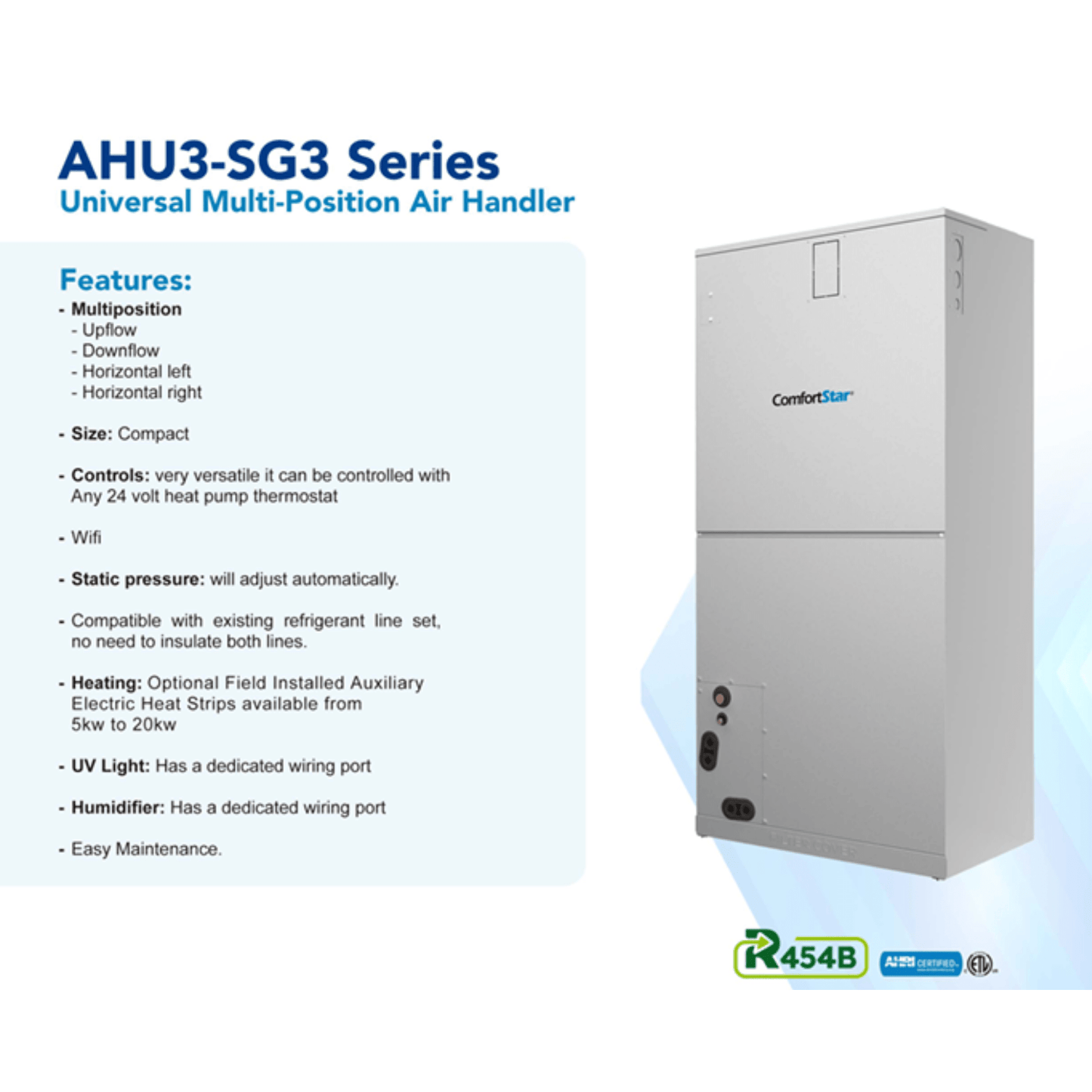

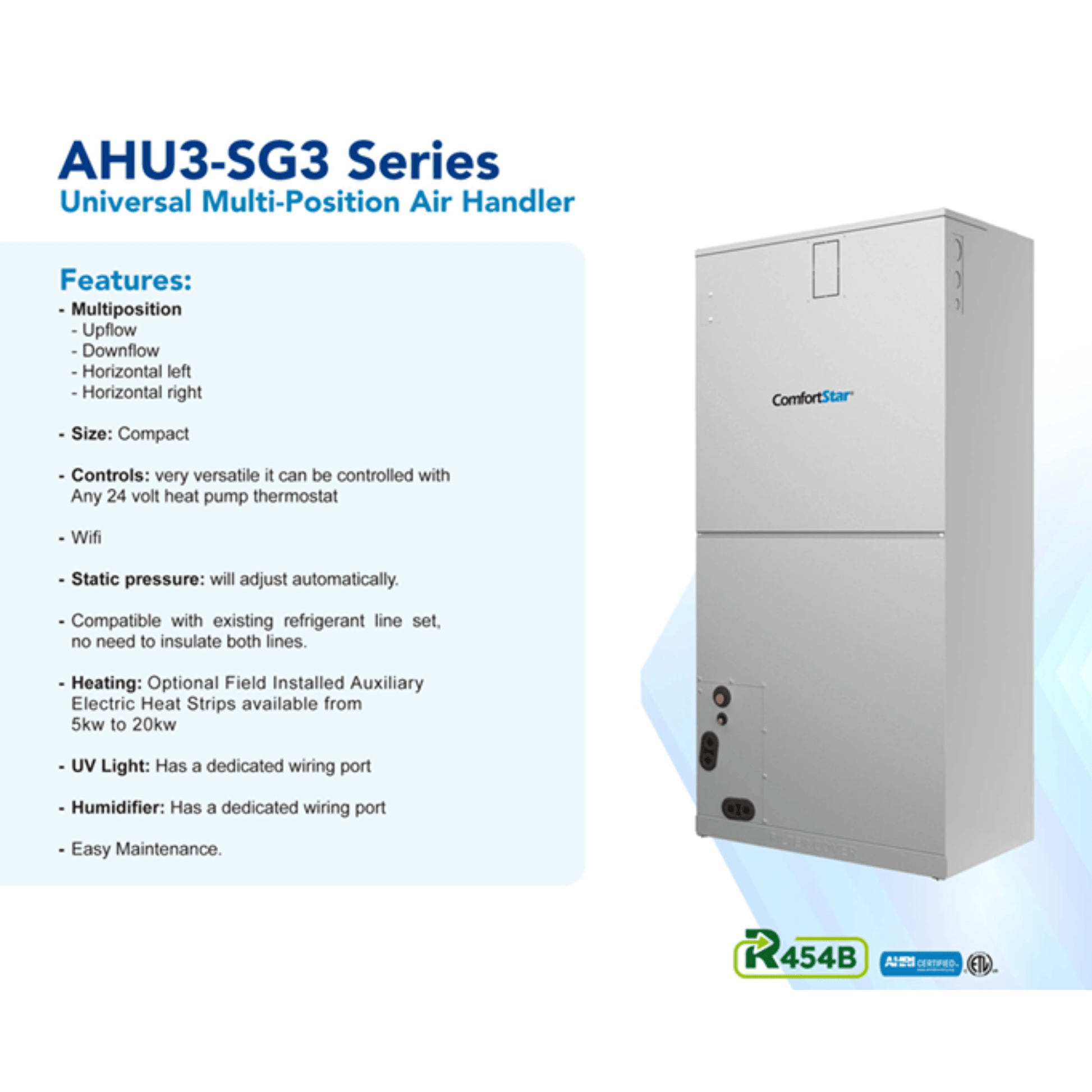

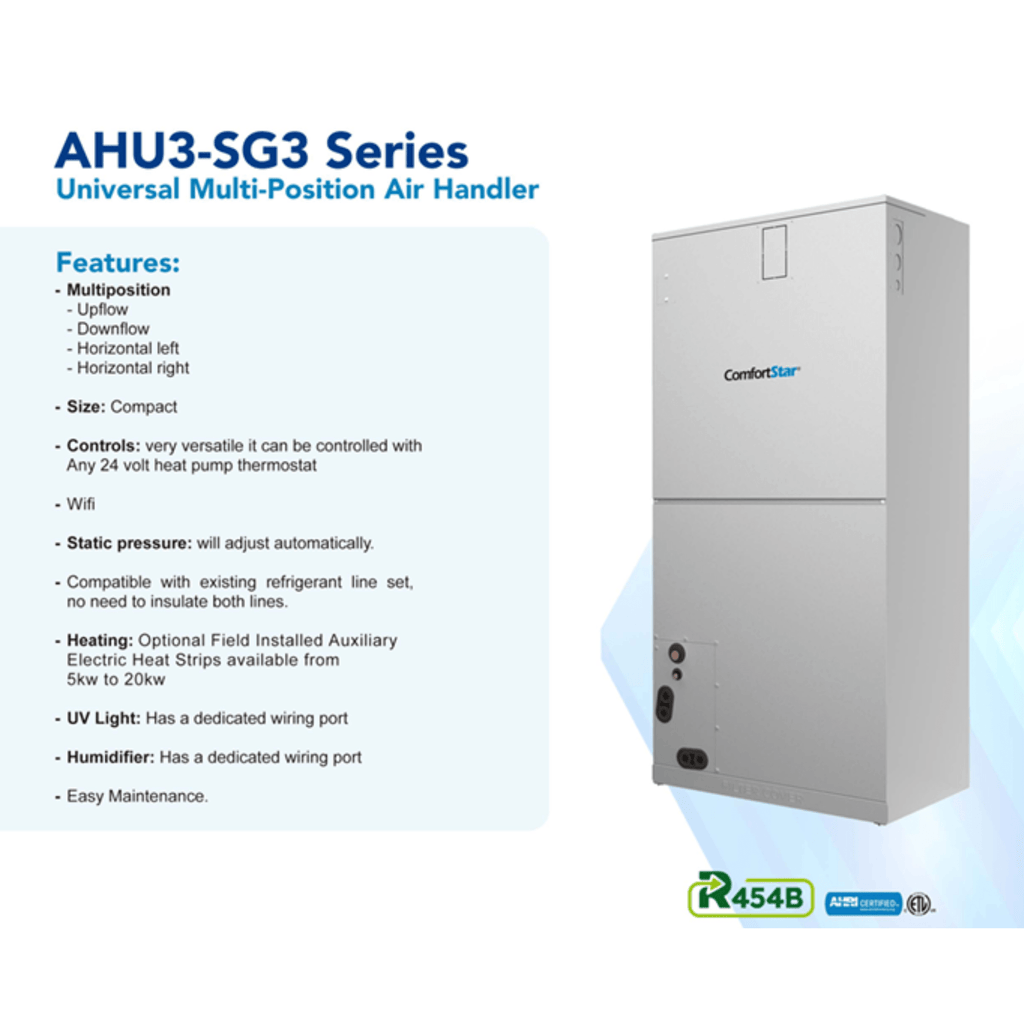

Features

-Multiposition Options: Upflow, Downflow, Horizontal Left, Horizontal Right.
-Size: Exceptionally compact compared to other brands.
-Controls: Highly versatile; can be managed using any 24-volt thermostat or Wi-Fi.
-Static Pressure: Automatically adjusts for optimal performance.
-Refrigerant Line Compatibility: Works with existing refrigerant line sets; no insulation needed for both lines.
-Heating: Optional auxiliary electric heating element kits available, ranging from 5 to 20 kW.
-UV Light: Equipped with a dedicated wiring port.
-Humidifier: Also features a dedicated wiring port.
-Maintenance: Designed for easy upkeep.
-Field-Installed Heater Kits: Available in sizes from 5 to 20kW.
-Temperature Consistency: Maintains a stable room temperature.
-Airflow Adjustment: Features automatic airflow modulation.
-Fault Code Checking: Simplified fault code diagnostics.
-Nitrogen Charge: Includes a leakage check valve for easy maintenance.
-Compatibility: Works with existing line, wiring, and thermostat setups.
-Control Options: Compatible with Comfortstar wireless remote, programmable wired control, central control, Wi-Fi control, and remote on/off capabilities.
