24K CH20-32 HIGHWALL UNIT - FOR C32-MZ MULTIZONE

24K CH20-32 HIGHWALL UNIT - FOR C32-MZ MULTIZONE

SKU: CH20-24CD-32(I)

BARCODE: CH20-24CD-32(I)

PRODUCT TYPE: Highwall Units

Free Lift Gate

Expedited Shipping

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 39.76*12.4*8.66
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 575/517/423
Tonnage: 2
dB(A) Noise Level (Hi / Mi / Lo): 49/43/37
SEER2: Refer to Outdoor C32-MZ Multi-zone Unit
EER: Refer to Outdoor C32-MZ Multi-zone Unit
Operating Mode:
Heat Capacity (BTU): 24000
Cooling Capacity (BTU): 24000
Placement: Indoor Highwall Unit
Indoor Unit Net/Gross Weight (lbs.): 26.4/33.66

Features

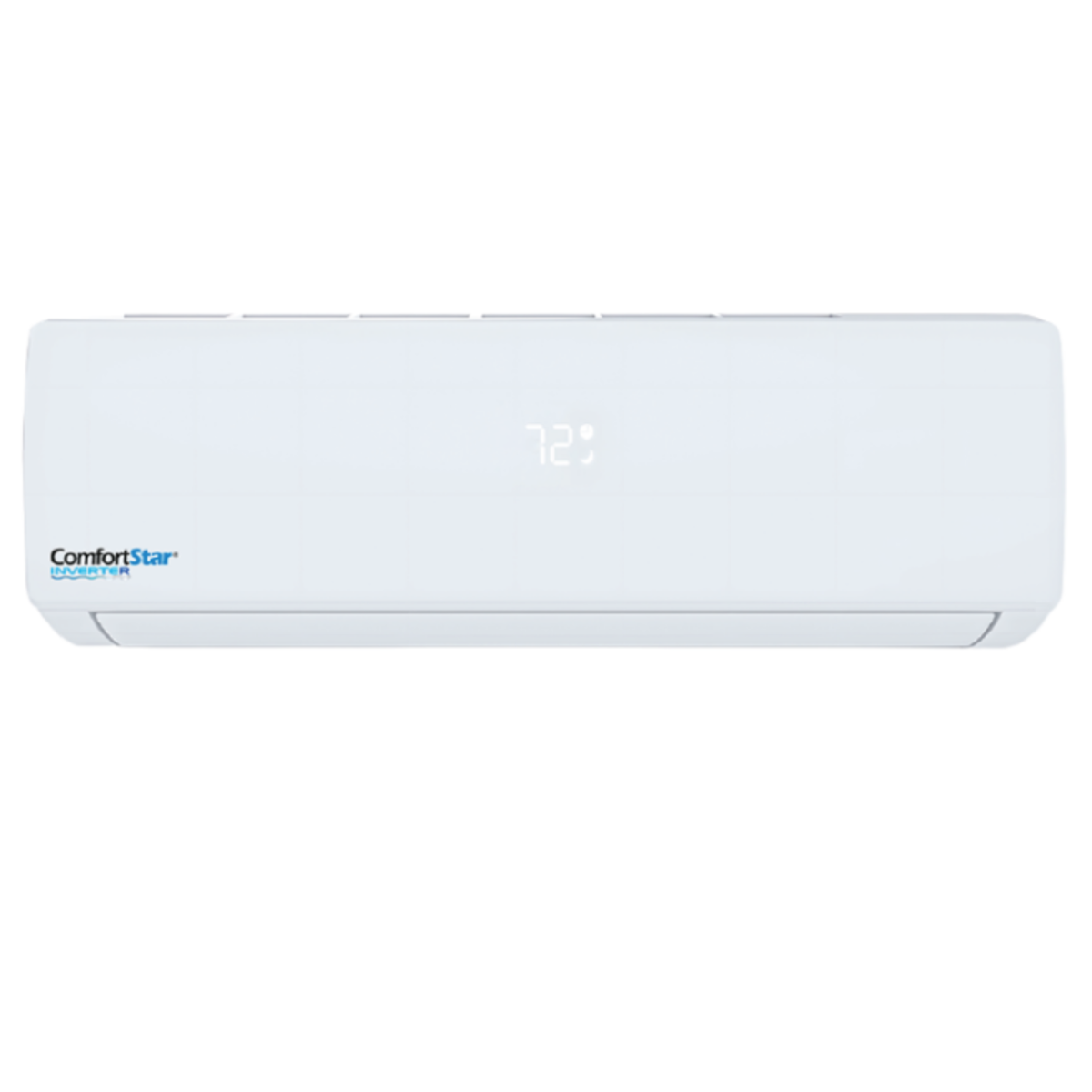

The ComfortStar CH20-24CD-32(I) is a 24,000 BTU high-wall indoor unit for compatible C32-MZ multi-zone systems. Designed for high-capacity zoned comfort, it provides cooling, heating, dehumidification, and adjustable airflow from a wall-mounted indoor unit.

See the Combination Table to confirm compatible outdoor units and system configurations.

FEATURES:
- Powerful Coverage for Large Spaces: Delivers 24,000 BTU of cooling and heating capacity for large rooms, open-concept areas, and demanding comfort needs.
- Powerful Turbo Cooling: Provides fast, high-capacity cooling when you need immediate comfort.
- Independent Dehumidification: Removes up to 5.49 pints of moisture per hour to help manage humidity in larger areas.
- Maximum Air Circulation: Moves up to 647 CFM of air to support more consistent comfort across larger spaces.
- Quiet Operation: Operates as low as 34 dB(A) in Mute mode for a high-capacity indoor unit.
- Energy-Saving ECO Mode: Helps manage energy use while maintaining a comfortable indoor temperature.
- Smart Sleep Mode: Adjusts operation automatically to support quieter, more comfortable sleep.
- Automatic Mode: Automatically responds to indoor conditions to maintain comfort.
- Auto Restart: Resumes your previous settings after a power interruption.
- Louver Position Memory: Keeps your preferred air-direction setting in memory.
- Self-Diagnostic System: Helps identify potential issues for easier troubleshooting.
- Refrigerant Leak Detection: Supports safer system operation through leak detection.
- Fahrenheit or Celsius Display: Choose your preferred temperature unit.
