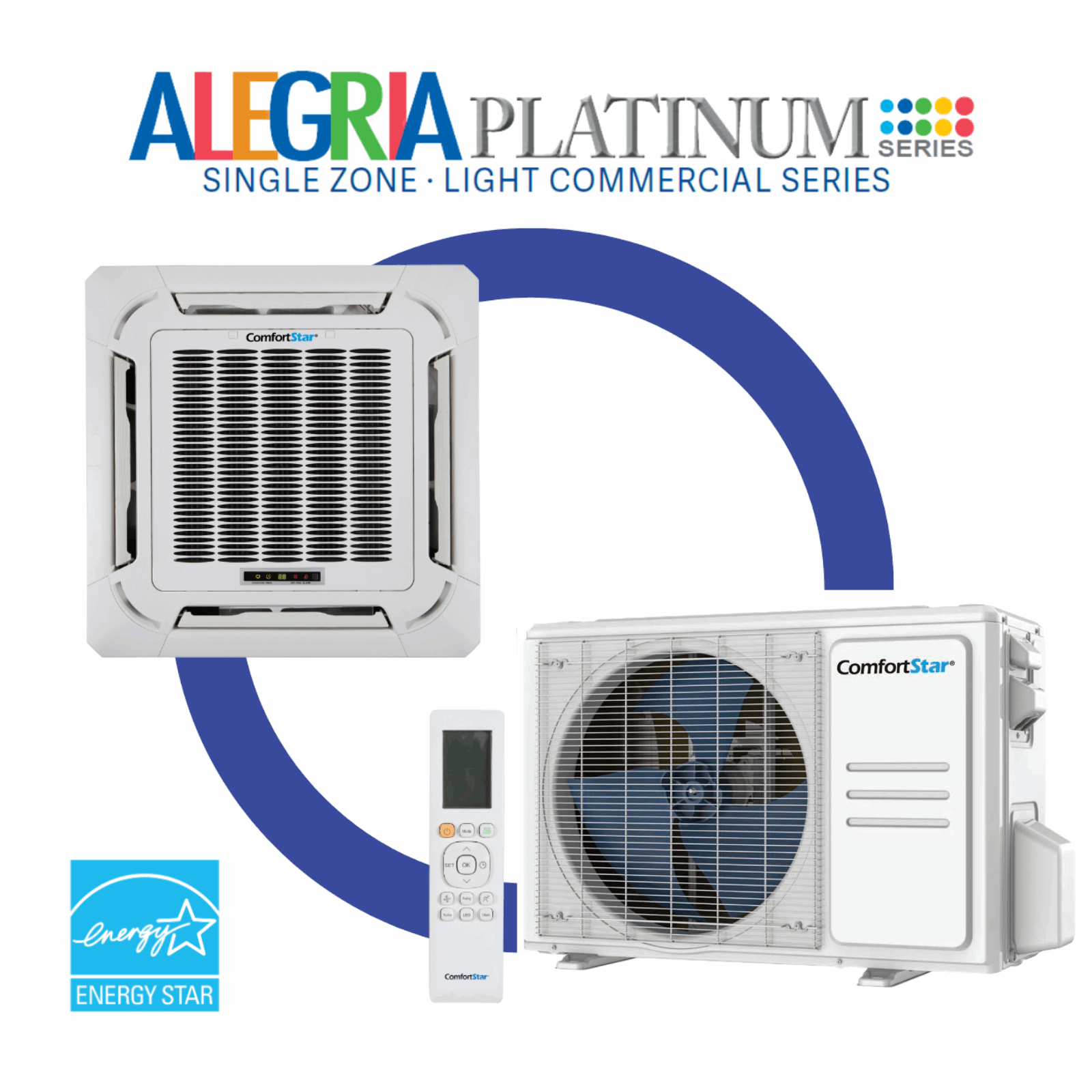

24K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL CASSETTE SYSTEM – 21.5 SEER2

SKU: CZPCD-TIP-24

BARCODE: CZP24CD(O) + TIP-24

PRODUCT TYPE: Cassettes

Product variants

Tax included.

Expedited Shipping

System Gross Weight: 190.26 (lbs.)

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

TPA TIP Instruction Manual

Submittals

TPA24-CZP24CD(O)

View full details

SEER2: 21.5

EER2: 12.5

HSPF2-4: 9.7

HSPF2-5: 7.8

Max. Allowable Piping Length (ft): 164

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 82

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 47.18/55.34

Outdoor Unit Net/Gross Weight (lbs.): 124.78/134.92

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor 4 way Cassette
• Compact Design
• Concealed Ceiling Unit
• Quiet Operation
• 360° Air Discharge
• Wireless Remote Control (standard)
• Programmable Wired Remote (optional)
• Wired Wall Remote (optional)
• Available Fresh Air Intake
• Integrated lift Pump (29” head)
• Wi-Fi Compatible

Specifications

Unit Size - Inches (W x D x H):

Indoor - 32.68x32.68x8.07
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 706/635/547
Outdoor - 2235.3

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 49/46/43
Outdoor - 60

Heat Capacity (BTU): 26000

Cooling Capacity (BTU): 24000

Placement: Light Commercial Applications

Breaker Size (A): 18

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 1"
