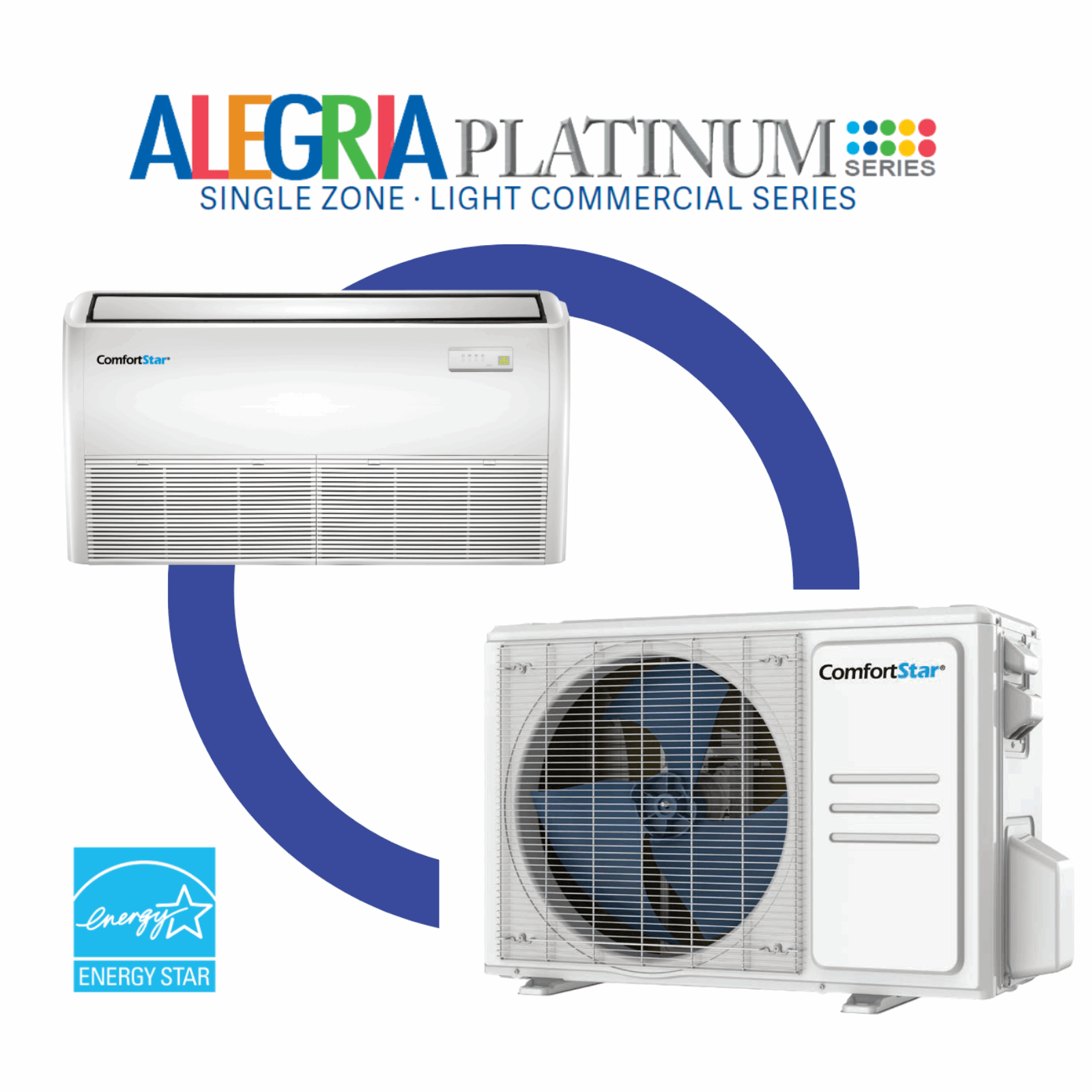

24K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FLOOR-CEILING SYSTEM – 20.5 SEER2

COMFORTSTAR

24K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FLOOR-CEILING SYSTEM – 20.5 SEER2

SKU: CZPCD-FPA-24

BARCODE: CZP24CD(O) + FPA24

PRODUCT TYPE: Floor/Ceiling Units

Product variants

Expedited Shipping

System Gross Weight: 207.01 (lbs.)

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

FPA- Owners & Installation Manual

Submittals

FPA24-CZP24CD(O)

View full details

Refrigerant Type: R410a

SEER2: 20.5

EER2: 12.5

HSPF2-4: 10.3

HSPF2-5: 7.8

Max. Allowable Piping Length (ft): 164

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 82

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 60.63/72.09

Outdoor Unit Net/Gross Weight (lbs.): 124.78/134.92

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Floor/Ceiling
• Flexible Design – Horizontal or Vertical Installation
• Compact Design
• Quiet Operation
• Louver Swing Function to Disperse Air Flow
• Wireless Remote Control (standard)
• Wired Control (optional)

Specifications

Unit Size - Inches (W x D x H):

Indoor -42.05x26.57x9.25
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 758.82/708.24/598.24
Outdoor - 2235.3

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 51/47/42
Outdoor - 60

Heat Capacity (BTU): 24000

Cooling Capacity (BTU): 24000

Placement: Light Commercial Applications

Breaker Size (A): 18

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
