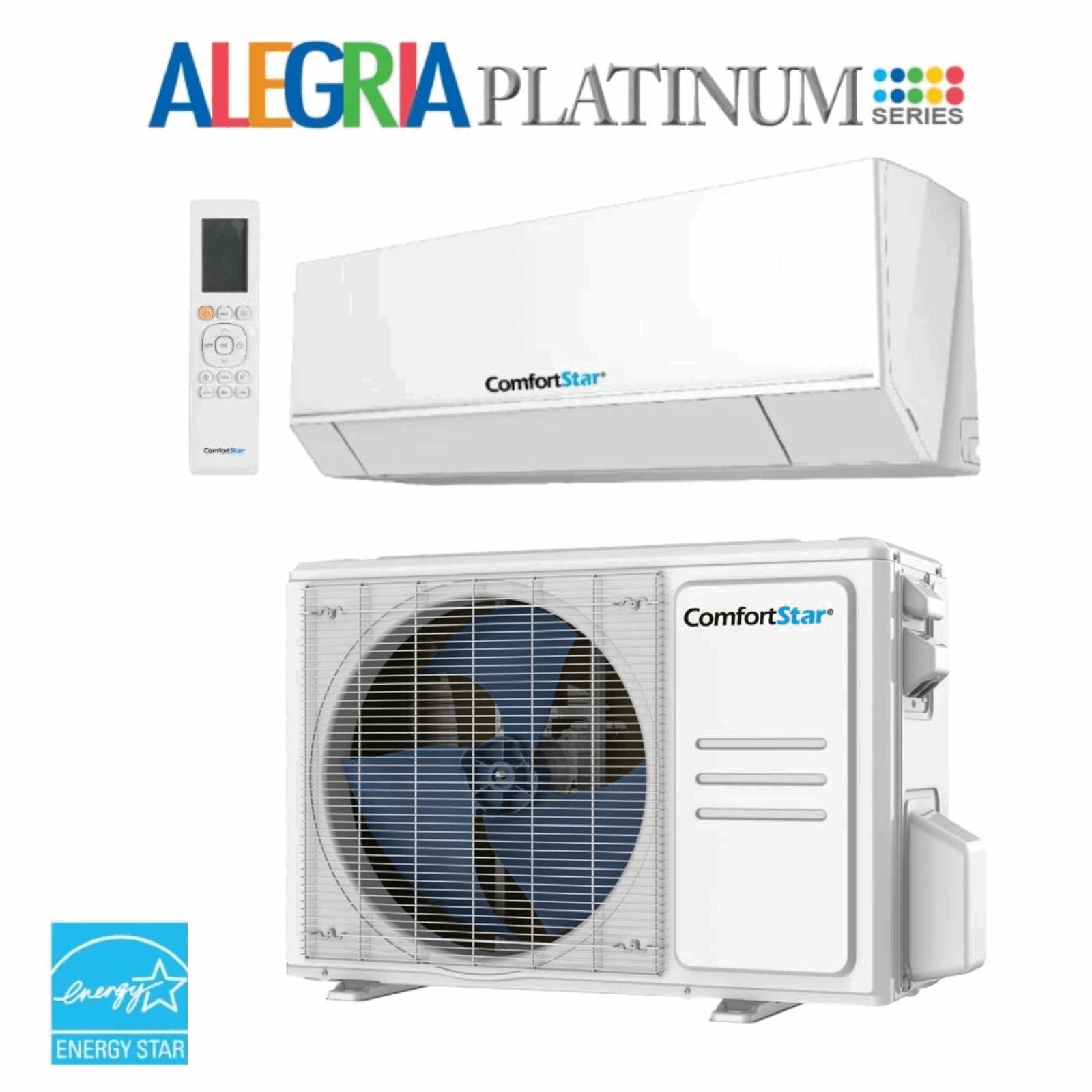

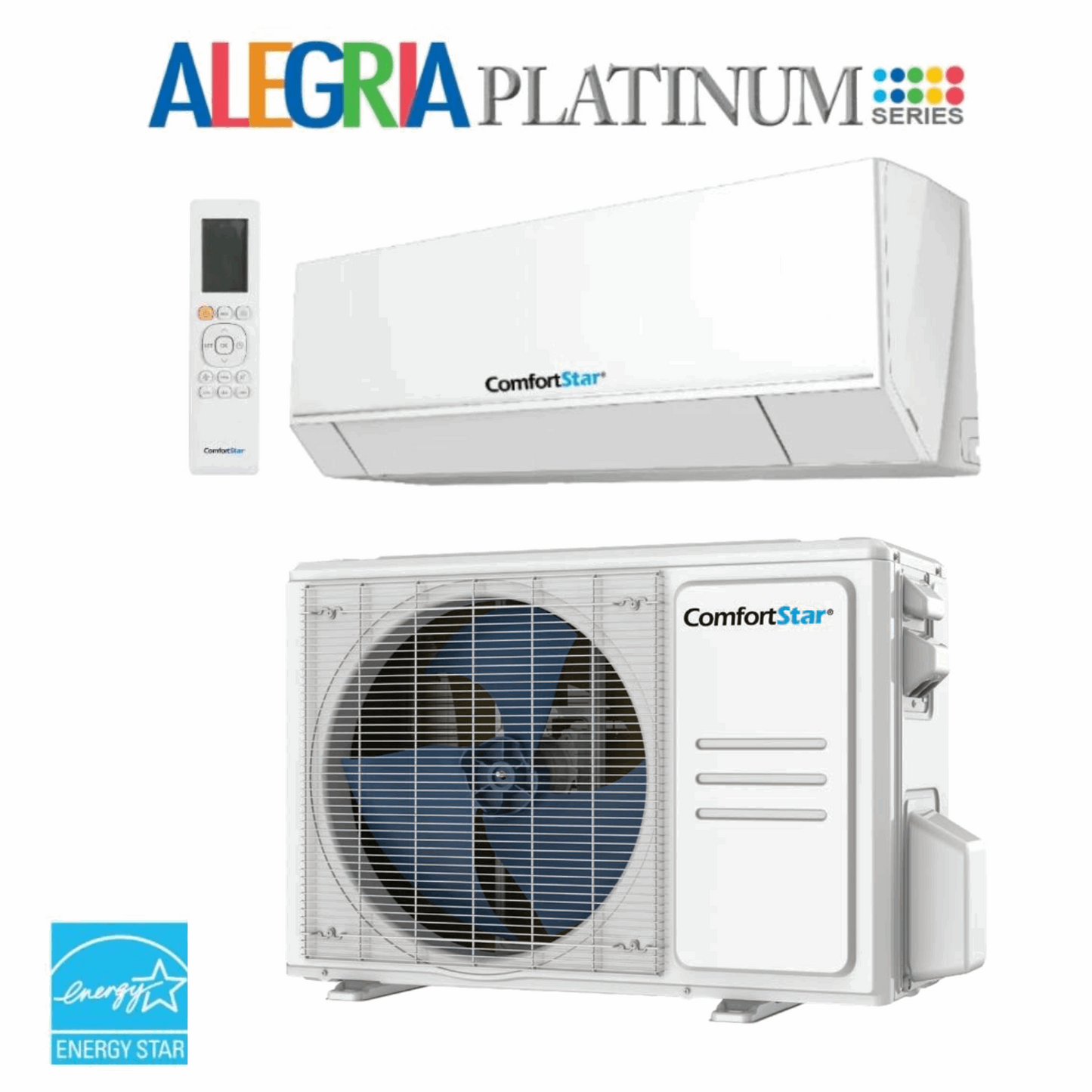

24K COOLING + HEATING - 208/230V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 22 SEER2

SKU: CZPCD-CHF-24

BARCODE: CZP24CD(O) + CHF24CD(I)

PRODUCT TYPE: Highwall Units

Product variants

Tax included.

Expedited Shipping

System Gross Weight: 194.22 (lbs.)

Quantity

Owners and Installation Manual

Performance Data

CHF + CZP System Submittal

CHF24CD(I)-CZP24CD(O)

View full details

SEER2: 22

EER2: 14

HSPF2-4: 9.2

HSPF2-5: 6.5

Max. Allowable Piping Length (ft): 164

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 82

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 48.50/59.30

Outdoor Unit Net/Gross Weight (lbs.): 124.78/134.92

Features

-13°F Low Outdoor Ambient Operating
• Wi-Fi Compatible (optional)
• Auto Swing
• Auto Defrost
• 12-Speed Indoor Fan
• Emergency Mode
• Anti-Cold Air Function
• Bypass Mode
• Mute Operation
• Refrigerant Leak Detection
• Error Code
• Manual Power Switch
• Interactive display
• Self-Diagnosis
• 3-Directional Airflow
• 2-Way Draining
• Optional Wired Control

Specifications

Unit Size - Inches (W x D x H):

Indoor - 44.88x10.83x14.57
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 611.18/414.12/318.82
Outdoor - 2235

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 44/39.5/34
Outdoor - 60

Heat Capacity (BTU): 25000

Cooling Capacity (BTU): 24000

Placement: Residential and Commercial Applications

Breaker Size (A): 25

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
