• 24,000 BTU Cooling Capacity
• 24,500 BTU Heating Capacity
• 208/230V, 60Hz, Single-Phase Power Supply
• 20.0 SEER2 and 12.2 EER2
• R454B Refrigerant
• Outdoor Heating and Cooling Operation Down to -13°F

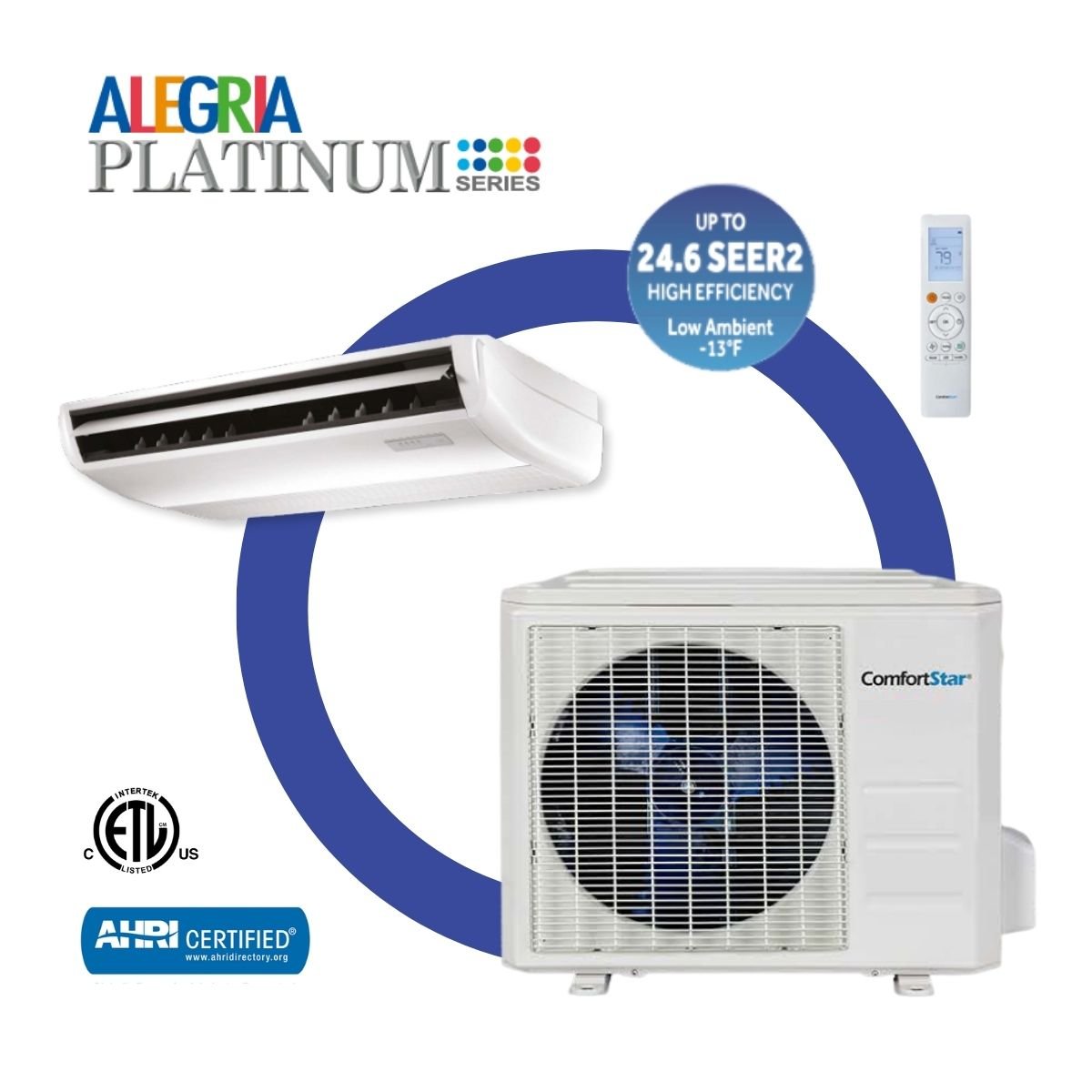

• Floor/Ceiling Indoor Unit with Two Installation Styles
• 3D Airflow
• Humidity Sensor
• Refrigerant Leakage Detection Sensor
• Fan Speed Stages from 1–100%
• Wi-Fi Capable via Wi-Fi USB or Compatible Wired Control
• Multiple Control Options, Including Wireless Remote and Third-Party 24V Thermostat

Unit Size - Inches (W x D x H):

Indoor - 42.05x26.57x9.25
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 706.3/606.3/453.2
Outdoor -2,236.7

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 49/45/34
Outdoor - 59

Heat Capacity (BTU): 24,500

Cooling Capacity (BTU): 24,000

Placement: Light Commercial Applications

Breaker Size (A): Indoor: 15
Outdoor:25

Factory Refrigerant Charge (ft):

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in):
