The ComfortStar CMZ3-30-4Z is a 26,600 BTU quad-zone outdoor heat pump designed to connect up to four compatible CMZ3 indoor units. It provides flexible zoning with ducted and non-ducted options, R454B refrigerant, 208/230V power, and up to 23 SEER2 efficiency.

KEY FEATURES:
- More Than 246 System Combinations Available
- Connect Up to 4 Zones
- Individual Zone Control
- Mix & Match Up to 6 Indoor Unit Styles
- High-Efficiency Inverter Technology
- Low-Ambient Operation Down to -13°F
- Optional Wi-Fi Control
- Bypass Mode
- Interactive Display
- Self-Diagnosis Function

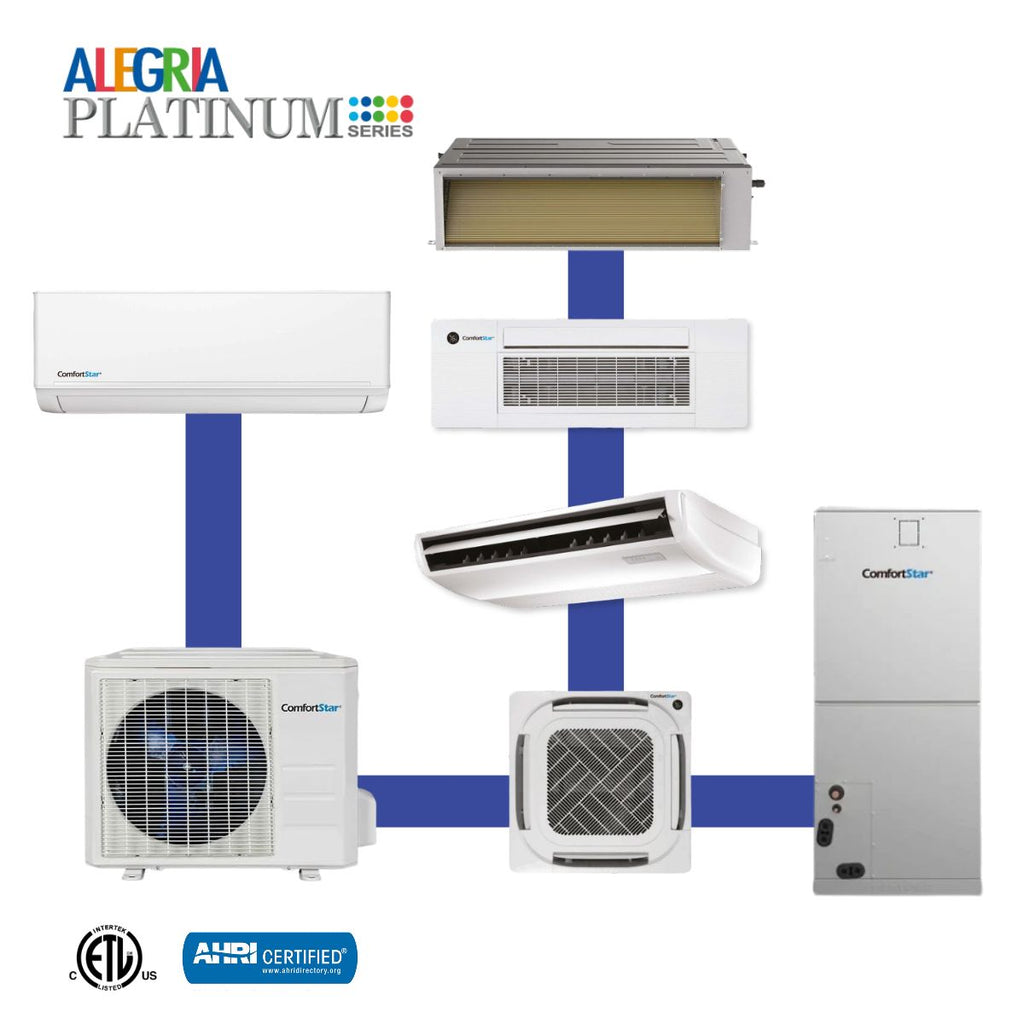

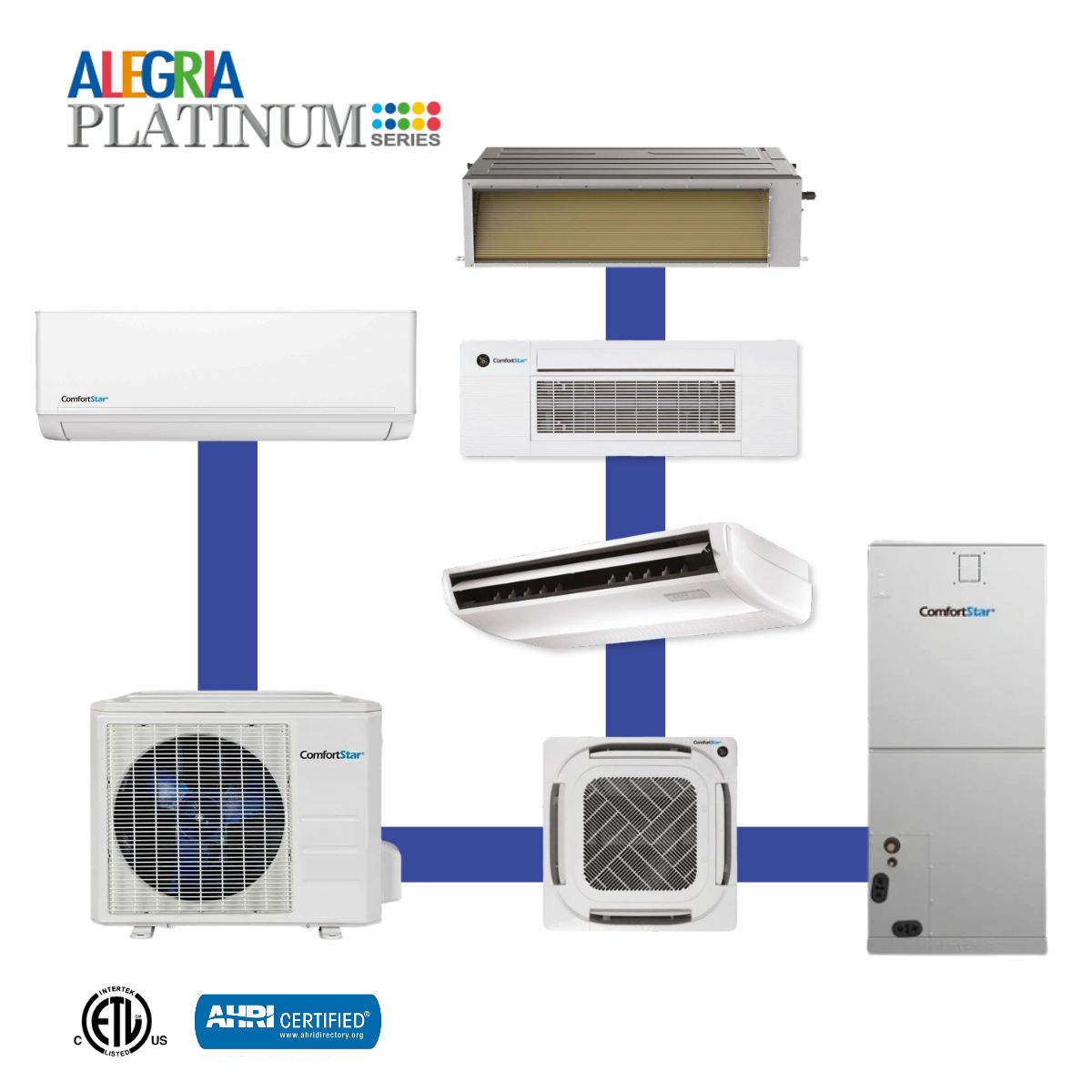

AVAILABLE INDOOR UNIT STYLES
Choose the indoor unit that best fits each space and application:
- High Wall Mount
- 4-Way Cassette
- 1-Way Cassette
- Floor / Ceiling
- Ducted Fan Coil
- Air Handler

Unit Size - Inches (W x D x H): 37.24x16.14x31.89

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 2,130.7

Tonnage: 2.5

dB(A) Noise Level (Hi / Mi / Lo): 61

Heat Capacity (BTU): up to 27,000

Cooling Capacity (BTU): up to 26,600

Placement: Quad Zone Outdoor Unit

Breaker Size (A): 20

Factory Refrigerant Charge (ft): 49.2

Refrigerant Adjustment Factor (oz. per ft): 0.11

Drain Pipe Size (in):
