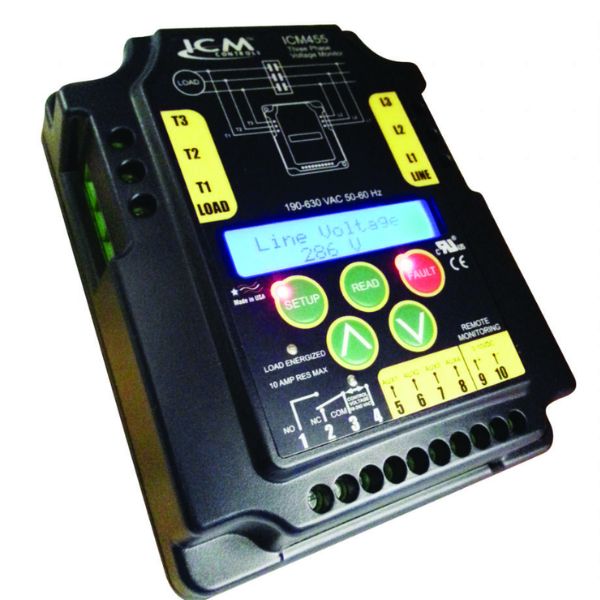

3 PHASE FULLY PROGRAMMABLE LINE VOLT MONITOR LED BACKLIT

3 PHASE FULLY PROGRAMMABLE LINE VOLT MONITOR LED BACKLIT

SKU: ICM455

PRODUCT TYPE: Votage Monitors

Expedited Shipping

View full details

Features & Specifications

The ICM455 is a fully programmable, 3-phase line voltage monitor with a backlit LCD, 50+ fault memory, and a real-time clock for accurate date and time stamp. It offers complete system protection by monitoring both the line (front) and load (back) side of the system, including the power, motor and contactor lines.
Fully programmable with LED backlit diagnostic display
Simple 7-step push-button setup
Monitors โ€œfrontโ€ and โ€œbackโ€ sides of system
Protects against voltage unbalance, high/low voltage, phase loss, reversal, faulty power, incorrect sequencing and rapid short cycling
Universal voltage operation: 190-630 VAC
50+-fault memory and storage with Real-Time Clock for accurate fault timestamps
Backup supply reliably records brownout conditions for up to 4 hours
Built-in anti-short cycle protection
Higher noise immunity
0-10 VDC output for remote monitoring capability

Weight: 0.7
Height: 1.5
Width: 4.5
Length: 5.5

User Adjustable Settings
Voltage: 190-630 VAC
Frequency: 50-60 Hz
Voltage Unbalance: Adjustable: 2-20%
Fault Interrogation: Adjustable: 0-15 seconds
Over/Under Voltage: Adjustable: 2-25%
Reset Modes: AUTO or 0-10 retries
Control Mode: ON or OFF
Control: 18-240 VAC
Delay on Break Timer: 0-10 minutes
Output
Relay: SPDT
โ€“ N.O.: 10 amps
โ€“ N.C.: 6 amps
Dimensions 5.5โ€ x 4.5โ€ x 1.5โ€

Replaces:
A-1: EAC-800, EAC-8000, EAC-8002
Copeland: 085-0160-00
Diversified: AC-2020, AC-301, AC-302
Mars: PFM-2000
Motorsaver: 455
SSAC: QLM/QLV
Time Mark: 265
Wagner / DiversiTech: DTP-3, WPC-800
