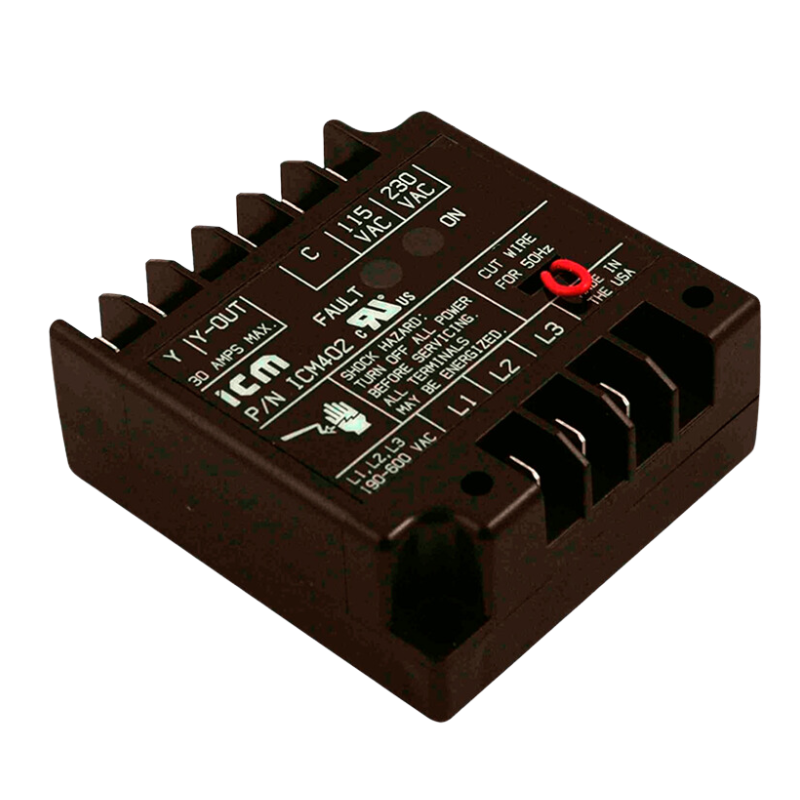

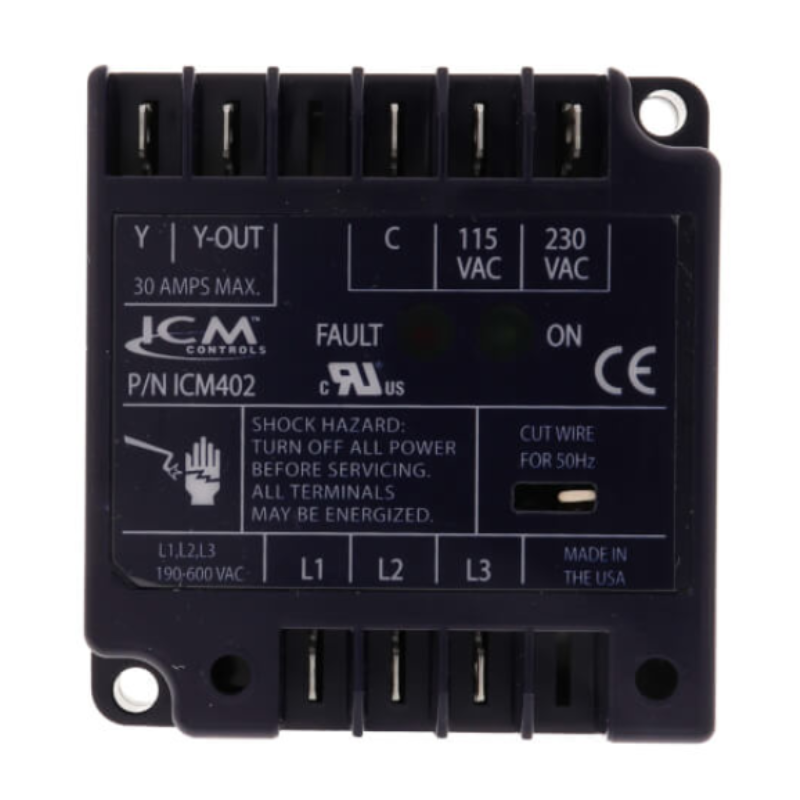

3 PHASE LOSS AND REMOVAL PROTECTION, 190-600 VAC

DETAILS:
Three-phase line voltage monitor offering protection against phase loss/reversal and unbalance; 50/60 Hz, 190-600 VAC (115 or 208/230 control VAC)
Low cost 3-phase protection for single side
Monitors for phase reversal, phase loss, unbalance % as a function of input voltage
Bright LED indicators for ON and FAULT
Universal 3-phase input: 190-600 VAC
Control voltage input: 115, 208/230 VAC
Epoxy encapsulated for moisture protection

SPECIFICATIONS:
Voltage: 190-600 VAC
Frequency: 50/60 Hz
Control: 115 or 208/230 VAC
Output:
– Relay, SPDT
– N.O. 30 amps

WEIGHT/DIMENSIONS:
Weight: 0.45
Height: 1.25
Width: 3
Length: 3.25
