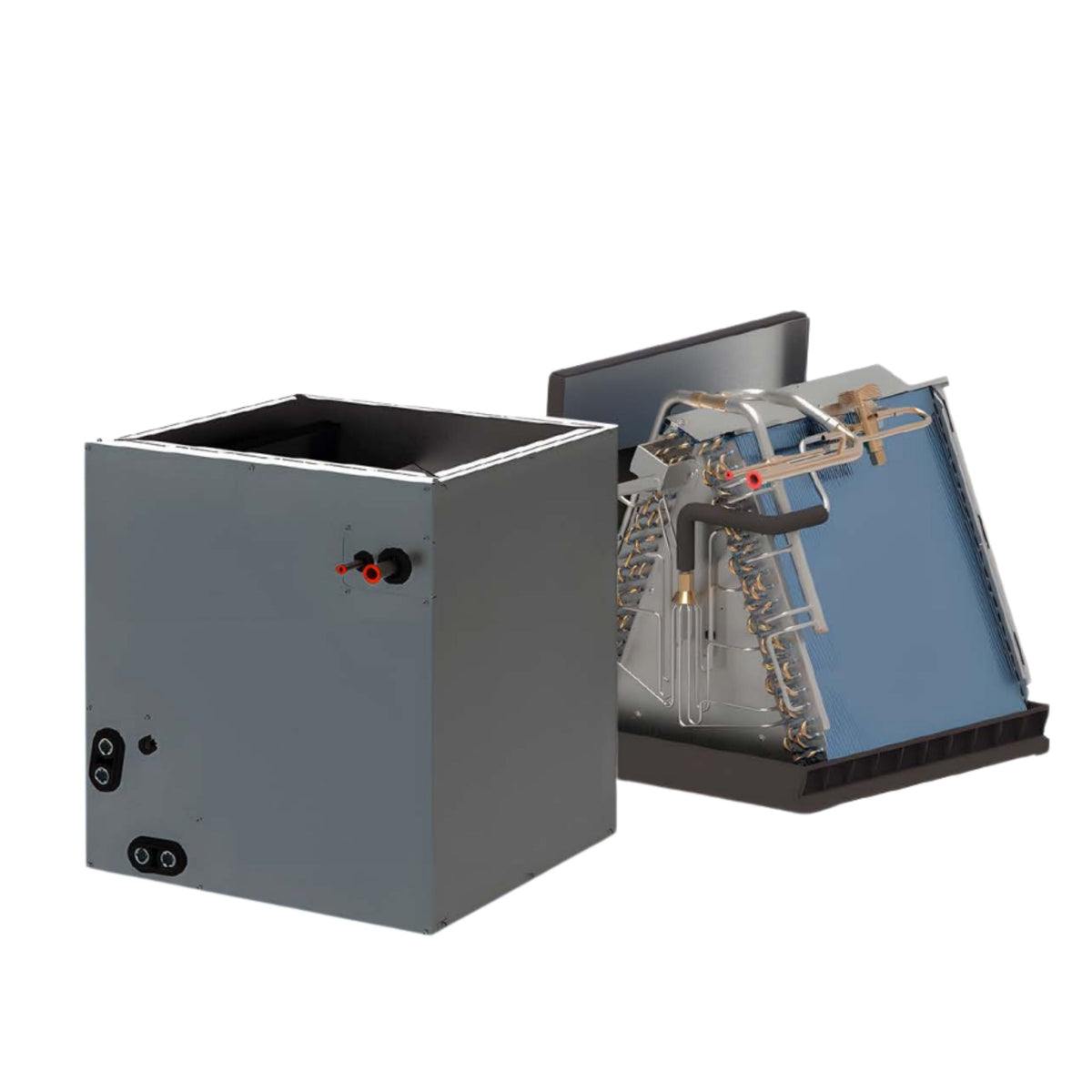

30/36K Cased Coil for BAR17 | 17-33/64"x21-1/32"x23-37/64"

SKU: AC32-3036B-15

BARCODE: AC32-3036B-15

PRODUCT TYPE: Air Handlers

Product variants

Quantity

BAR17 Series Catalog

View full details

Refrigerant Type: R32

Unit Size - Inches (W x D x H): 17-33/64"x21-1/32"x23-37/64"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): Refer to matched outdoor unit specifications.

Tonnage: 1.5 to 3

dB(A) Noise Level (Hi / Mi / Lo): Refer to matched outdoor unit specifications.

SEER2: 13.8

EER: 11.7

Operating Mode: Refer to matched outdoor unit specifications.

Heat Capacity (BTU): Refer to matched outdoor unit specifications.

Cooling Capacity (BTU): Refer to matched outdoor unit specifications.

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): Refer to matched outdoor unit specifications.

Features

• Pre-Packaged Evaporator: Factory-assembled cased coil designed for compatible split-system installations.
• 30K–36K BTU Capacity Range: Supports ComfortStar cooling systems within the 30,000 to 36,000 BTU range.
• All-Aluminum Heat Exchanger: Provides corrosion resistance and long service life.
• Flexible Design: Multiple cabinet configurations accommodate gas furnaces with different dimensions.
• Compact Structure: Supports easier transportation and installation.
• Outdoor Unit Compatibility: Can be paired with compatible DC inverter or on/off outdoor units.
