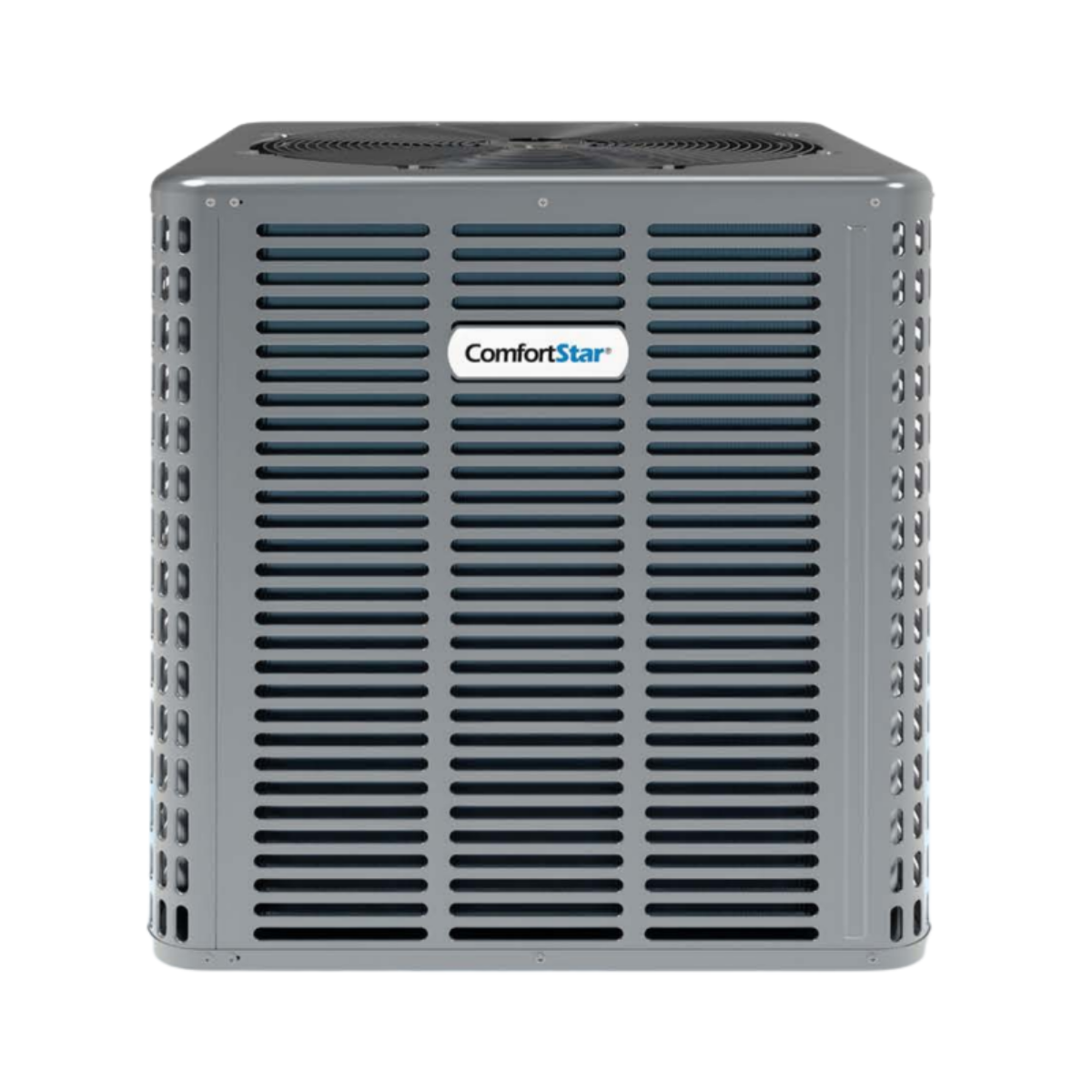

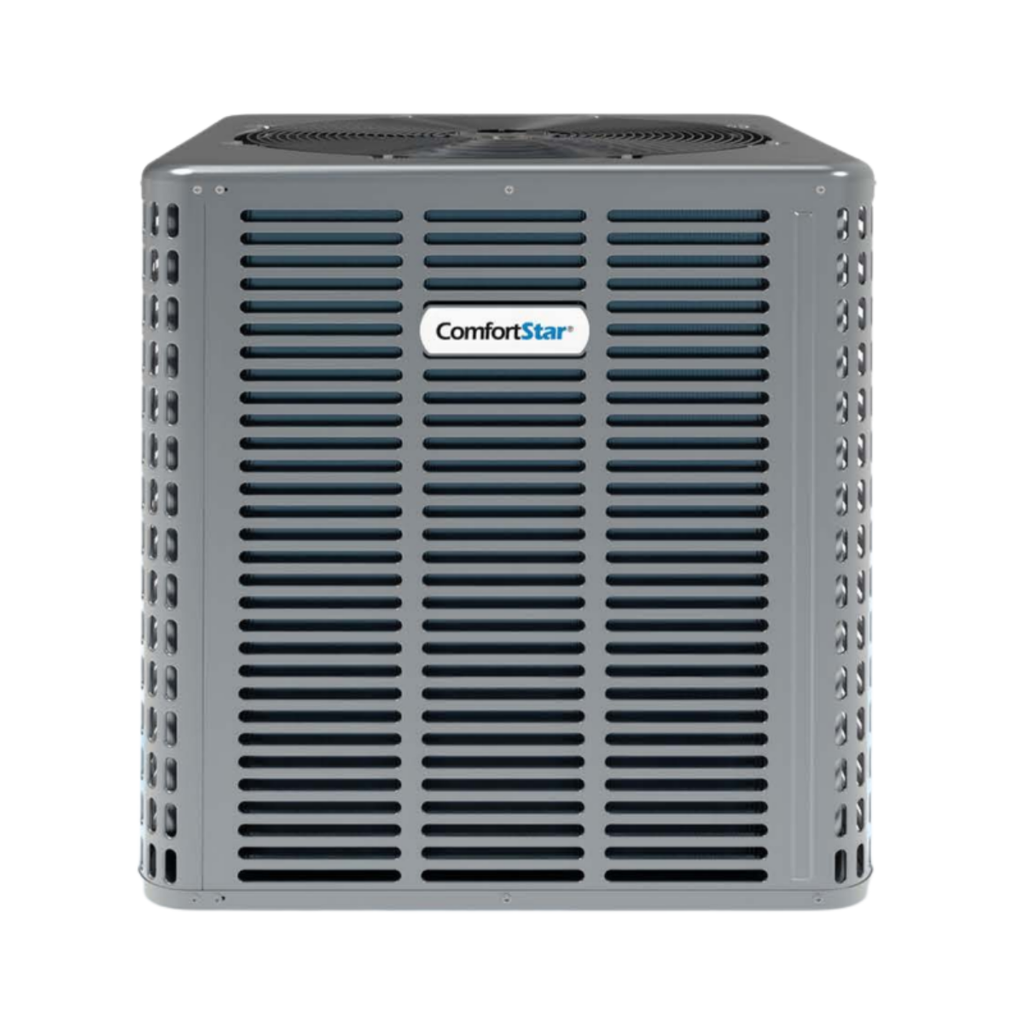

30K BAR17 SERIES - COOLING ONLY R32 CONDENSING UNIT - 14.3 SEER2 30K BAR17 SERIES - COOLING ONLY R32 CONDENSING UNIT - 14.3 SEER2
r32-badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

30K BAR17 SERIES - COOLING ONLY R32 CONDENSING UNIT - 14.3 SEER2

30K BAR17 SERIES - COOLING ONLY R32 CONDENSING UNIT - 14.3 SEER2

SKU: BAR17-30-15

PRODUCT TYPE: Condensing Units

Free Lift Gate

Expedited Shipping

System Gross Weight: 147 (lbs.)

Click Here to View the Product Catalog

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 29-1/7×29-1/7×25
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo):
Tonnage: 2.5
dB(A) Noise Level (Hi / Mi / Lo):
SEER2: 14.3
EER: 11.7
Operating Mode: Cooling Only
Heat Capacity (BTU): Cooling Only
Cooling Capacity (BTU): 30,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 139/147

Features

2.5 Ton Cooling Capacity – Designed for efficient and reliable cooling performance

Top Discharge Design – Optimized airflow for quiet operation and easy installation

High-Efficiency Rotary Compressor – Delivers powerful cooling with reduced energy consumption

High-Efficiency DC Motor – Provides stable performance, lower power usage, and extended service life

Premium-Quality Condenser Coil – Inner grooved copper tubing with aluminum fins for superior heat transfer and durability

Factory-Installed High/Low Voltage Protection Switch – Protects the system from electrical fluctuations

Wide Operating Temperature Range – Maintains consistent performance in varying climate conditions

Built-In Filter Drier – Ensures refrigerant cleanliness and protects internal components
