30K CPH PACKAGE UNIT - HORIZONTAL DISCHARGE - 13.4 SEER2

SKU: CPH-30-15

PRODUCT TYPE: Package Units

Product variants

Expedited Shipping

Product Catalog

CPH-30 Submittal

View full details

Unit Size - Inches (W x D x H): 52x24-13/16x37-3/4

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1075

Tonnage: 2.5

dB(A) Noise Level (Hi / Mi / Lo): 67.5

SEER: 13.4

EER: 11

Heat Capacity (BTU): Electric heat kit available as a field-installed option:5/8/10/15/20kW.

Cooling Capacity (BTU): 28200

Placement: Outdoor Packaged Unit

Outdoor Unit Net/Gross Weight (lbs.): 325/332

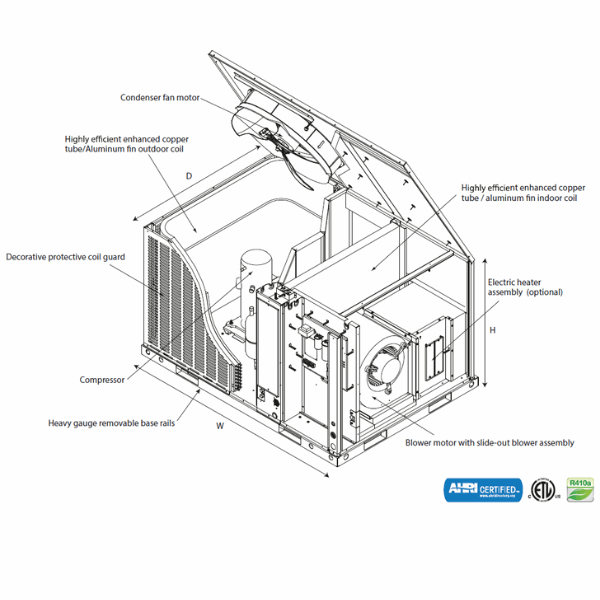

Features

• Powder-painted galvanized steel cabinet.
• Electric heat kit available as a field-installed option:5/8/10/15/20kW.
• High efficiency compressor that operate smoothly, quietly and consistently.
• Internal safeguards that protect the compressor against high and low pressures, coil temperatures and power surge.
• Copper tube/aluminum fin coil.
• High efficiency ECM blower motor.
• AHRI/ETL Certified.
