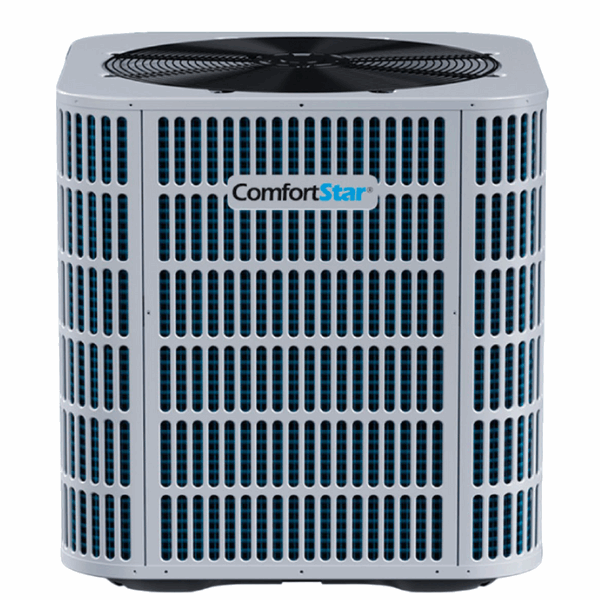

36K BAR5 SEER2 - COOLING ONLY CONDENSING UNIT - UP TO 15.2 SEER2

SKU: BAR5-36-15

PRODUCT TYPE: Condensing Units

Product variants

Expedited Shipping

Product Catalog

BAR5 Installation Manual

BAR5 (36-15) Spare Parts

BAR5 (36-15) Submittal

View full details

Unit Size - Inches (W x D x H): 29-1/8"×29-1/8"×24-15/16"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 5270

Tonnage: 3.00

dB(A) Noise Level (Hi / Mi / Lo): 75

SEER: Up to 15.2

EER: Up to 12

Heat Capacity (BTU): Cooling Only

Cooling Capacity (BTU): 36000

Placement: Outdoor Condensing Unit

Outdoor Unit Net/Gross Weight (lbs.): 154

Features

- R410A chlorine-free refrigerant.
- Energy-efficient compressor.
- Internally protection against high temperature motor overload conditions.
- High quality condenser with inner-groove copper tube and aluminum fin.
- Service valves with sweat connections and easy-access gauge ports.
- Factory-installed high pressure switch for AC and low pressure switch for HP.
- AHRI Listed & ETL Certification.
- Unique sound control top design.
- Compact design, easy installation and transportation.
- Powder-painted galvanized steel cabinet.
- Wind load compliant per Florida Building Code – 2010.
- Wire fan discharge grille.
- Steel louver coil guard.
