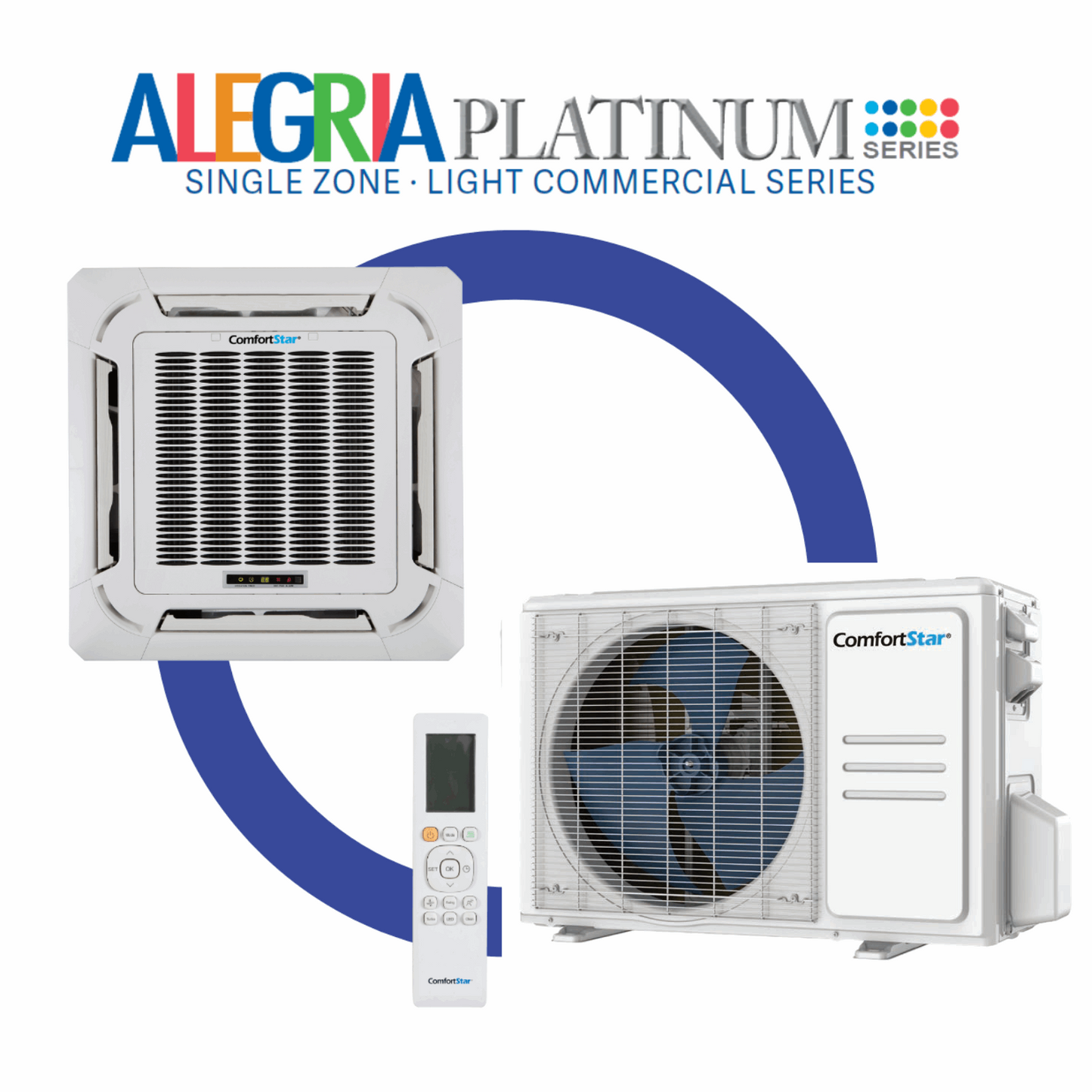

36K COOLING + HEATING - 208/230V LIGHT COMMERCIAL CASSETTE SYSTEM – 19.2 SEER2

COMFORTSTAR

36K COOLING + HEATING - 208/230V LIGHT COMMERCIAL CASSETTE SYSTEM – 19.2 SEER2

SKU: CZPCD-TIP-36

BARCODE: CZP36CD(O) + TIP36

PRODUCT TYPE: Cassettes

Product variants

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

TPA TIP Instruction Manual

Submittals

TIP36-CZP36CD(O)

View full details

Refrigerant Type: R410a

SEER2: 19.2

EER2: 9.4

HSPF2-4: 8.8

HSPF2-5: 7.0

Max. Allowable Piping Length (ft): 213

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 98

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*3, Stranded+22*2 Shielded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 59.97/69.00

Outdoor Unit Net/Gross Weight (lbs.): 155.42/166.23

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor 4 way Cassette
• Compact Design
• Concealed Ceiling Unit
• Quiet Operation
• 360° Air Discharge
• Wireless Remote Control (standard)
• Programmable Wired Remote (optional)
• Wired Wall Remote (optional)
• Available Fresh Air Intake
• Integrated lift Pump (29” head)
• Wi-Fi Compatible

Specifications

Unit Size - Inches (W x D x H):

Indoor - 32.68x32.68x9.65
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 947/853/753
Outdoor - 2117.7

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 52.5/50/46.5
Outdoor - 65

Heat Capacity (BTU): 38000

Cooling Capacity (BTU): 36000

Placement: Light Commercial Applications

Breaker Size (A): 30

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 1"
