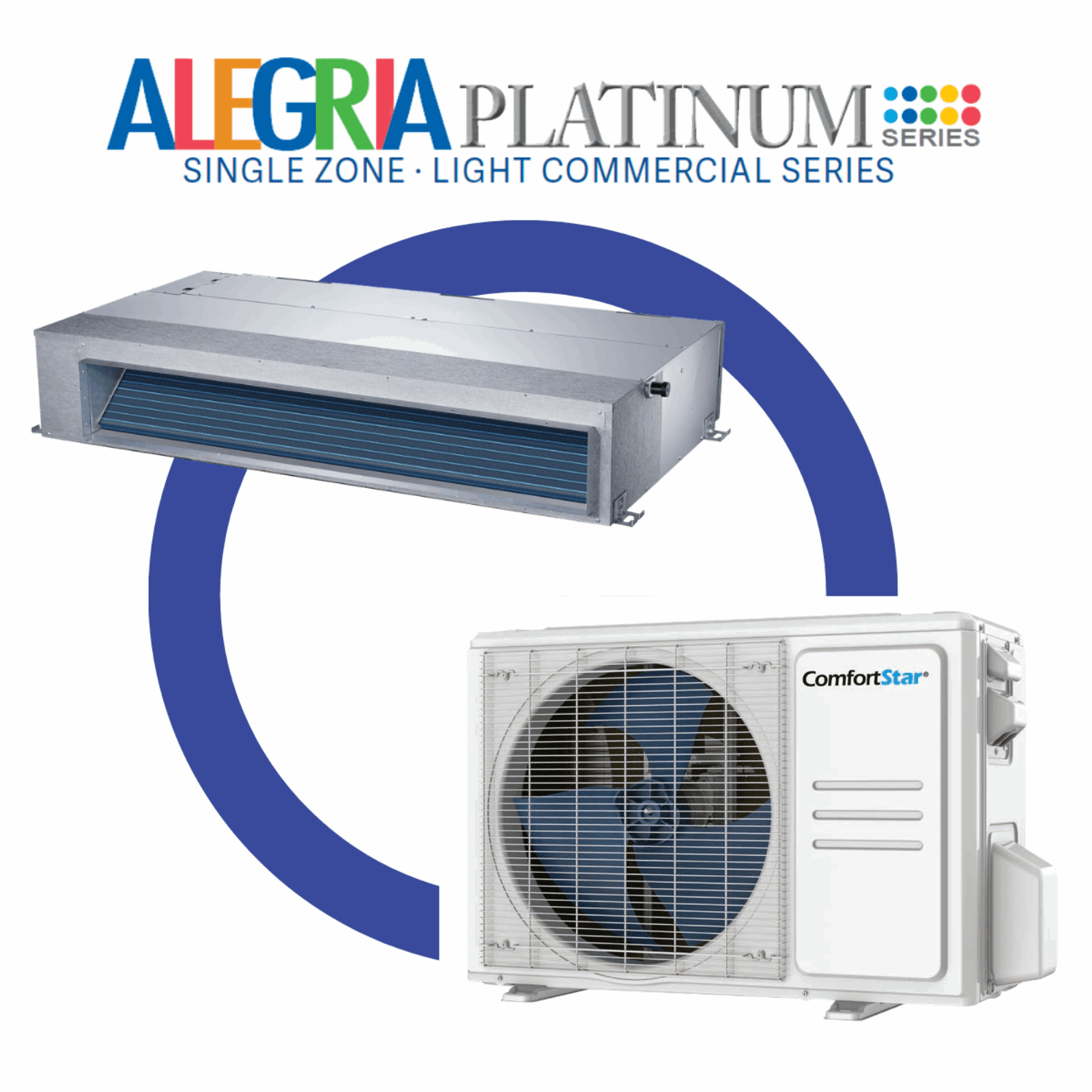

36K COOLING + HEATING - 208/230V LIGHT COMMERCIAL FAN COIL SYSTEM – 15.8 SEER2

SKU: CZPCD-CPADUB-36

BARCODE: CZP36CD(O) + CPA-36DUB

PRODUCT TYPE: Fan Coils

Product variants

Tax included.

Quantity

Service Manual

CPA – Service Manual

Owners Manual & Installation Manual

CPA – Owners & Installation Manual

CPA + CZP System Submittal

CPA-36B-CZP36CD(O)

View full details

SEER2: 15.8

EER2: 8.8

HSPF2-4: 8.8

HSPF2-5: 7.0

Max. Allowable Piping Length (ft): 213

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 98

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*3, Stranded+22*2 Shielded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 106/122

Outdoor Unit Net/Gross Weight (lbs.): 155.42/166.23

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Fan Coil
• Compact Design
• Quiet Operation
• Wired Control (standard)
• Available Fresh Air Intake

Specifications

Unit Size - Inches (W x D x H):

Indoor - 54x30x10
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 1081.76/912.35/702.94
Outdoor - 2117.7

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 48.0/43.5/40.5
Outdoor - 65

Heat Capacity (BTU): 40000

Cooling Capacity (BTU): 36000

Placement: Light Commercial Applications

Breaker Size (A): 30

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
