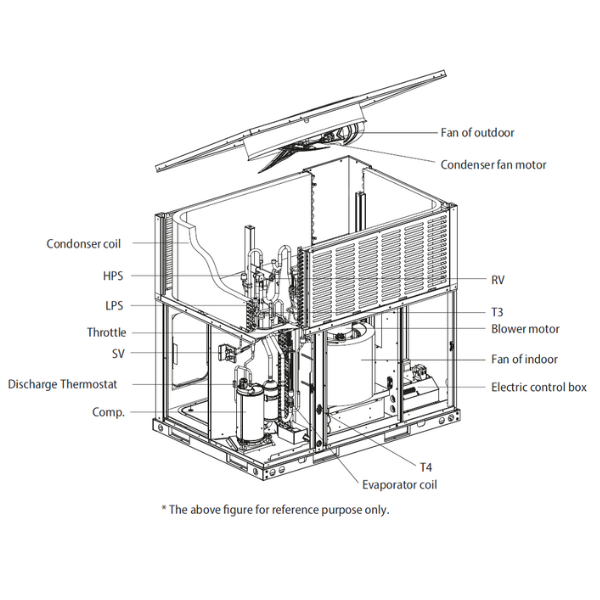

36K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2 CDP CDP DIAGRAM
36K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2 36K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

COMFORTSTAR

36K CDP PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

36K CDP PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

SKU: CDP36-15

PRODUCT TYPE: Package Units

Free Lift Gate
Tax included.

Expedited Shipping

System Gross Weight: 429 (lbs.)

Product Catalog

View full details
Unit Size - Inches (W x D x H): 35-1/16 x 50-11/16 x 46-13/16
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 840
Tonnage: 3
dB(A) Noise Level (Hi / Mi / Lo):
SEER: 13.4
EER: 11.5
Heat Capacity (BTU): 35000
Cooling Capacity (BTU): 34600
Placement: Outdoor Packaged Unit
Outdoor Unit Net/Gross Weight (lbs.): 411/429

Features

• High quality heat exchanger.
• Fits universal curb, convenient installation and replacement.
• Horizontal or downflow application.
• Convenient access panels, one side service.
• Rotatable control box, slide out.
design for blower motor (Easy for service).
• AHRI/ETL Certificated.
