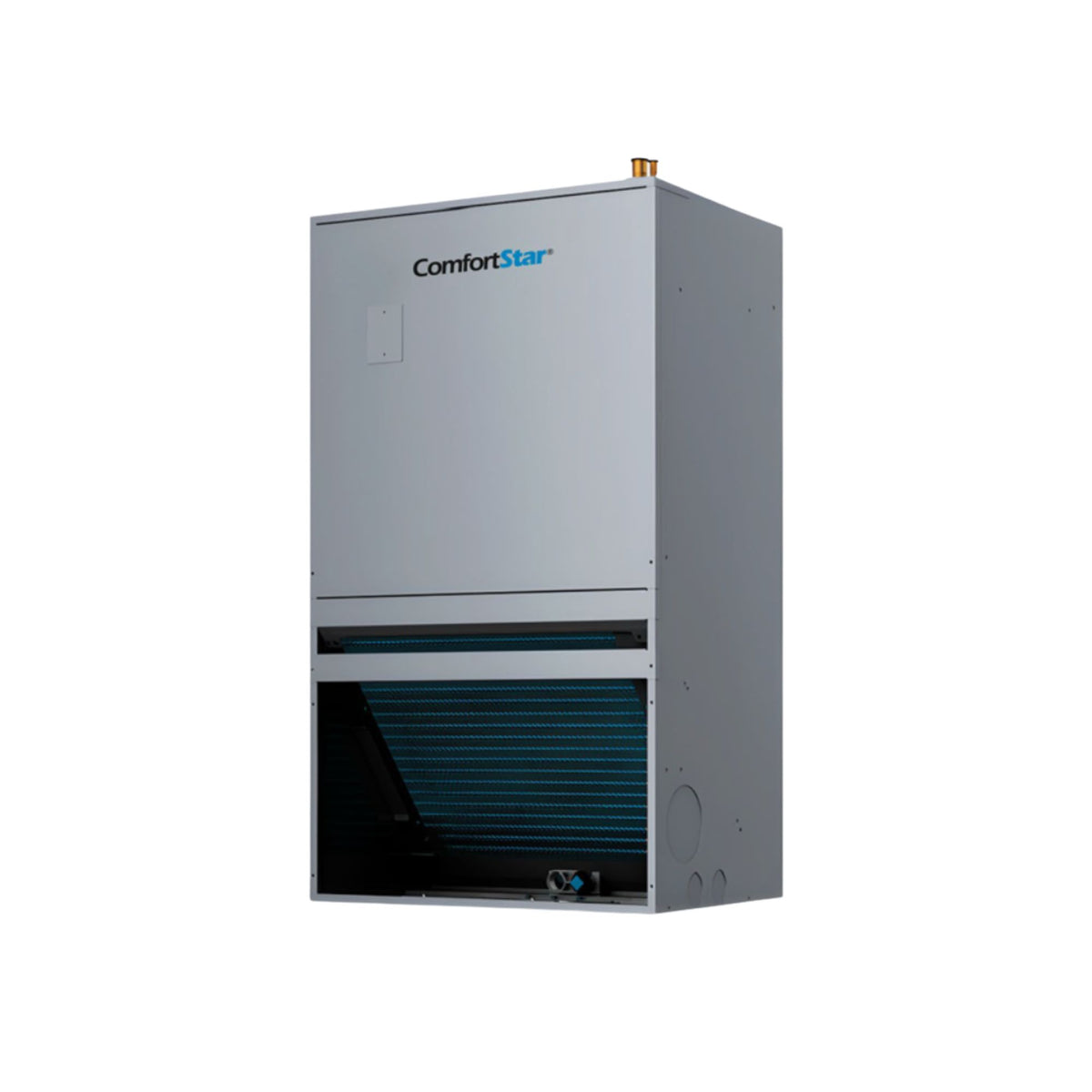

36K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - up to 15 SEER2 (Copy)

Name: 36K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - up to 15 SEER2 (Copy)
Brand: COMFORTSTAR
SKU: CWM32-36-15
Availability: InStock

36K WALL MOUNTED CWM32 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - up to 15 SEER2 (Copy)

SKU: CWM32-36-15

BARCODE: CWM32-36-15

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

System Gross Weight: Refer to matched outdoor unit specifications. (lbs.)

Quantity

BAH32 Series Catalog

CSS Series Catalog

View full details

Refrigerant Type: R32

Unit Size - Inches (W x D x H): 22-1/8"x19-1/16"x39-41/64"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1160/930

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo): 52

SEER2: Refer to matched outdoor unit specifications.

EER: Refer to matched outdoor unit specifications.

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 36,000

Cooling Capacity (BTU): 34,200

Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 108/121

Features

• Approved Outdoor Compatibility: Compatible with BAH32-36-15 and CSS36CD(O) outdoor units.
• Match-Specific Capacity: Delivers 34,200 BTU/h cooling with BAH32-36-15 or 36,000 BTU/h cooling with CSS36CD(O); both approved matches provide 36,000 BTU/h heating.
• System Efficiency: Rated 14.5 SEER2 with BAH32 or 15.0 SEER2 with CSS.
• Maximum CWM32 Airflow: Direct-drive multi-speed PSC motor provides 1,160/930 CFM airflow.
• Flexible Return-Air Design: Supports front or bottom return installation.
• All-Aluminum Coil: Uses an all-aluminum coil.
Installation-Ready Cabinet: Includes a built-in filter rack, wall-hanging bracket, and thermoplastic drain pan with primary and secondary bottom drain connections.
• Optional Comfort Features: Optional Wi-Fi control and 5kW, 7.5kW, or 10kW heating elements are available.
• AHRI and ETL Listed: Listed for performance and safety.
