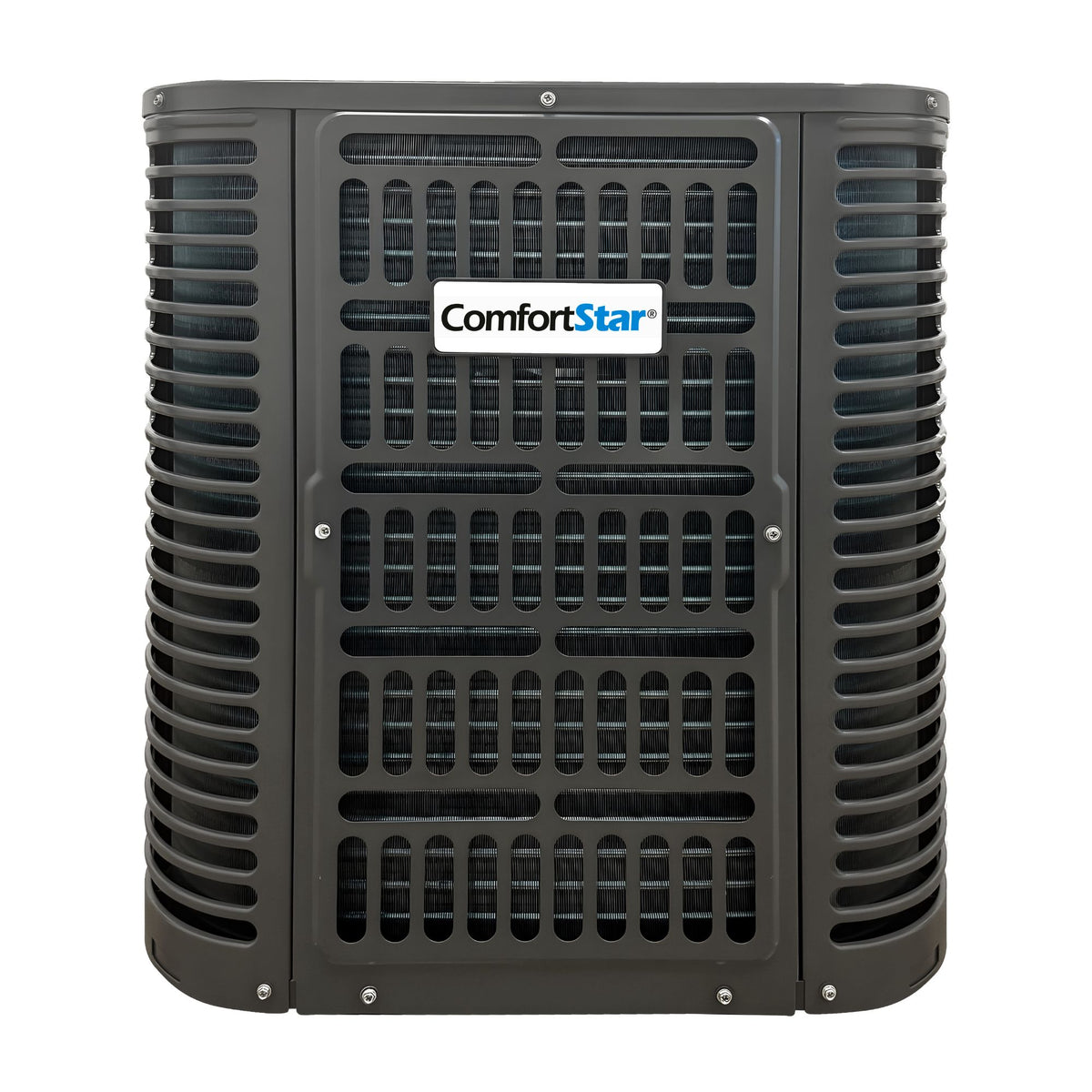

42K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

42K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

SKU: BAH10-42-15

PRODUCT TYPE: Condensing Units

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 29-9/64x29-9/64x32-7/8
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 2,950
Tonnage: 3.5
dB(A) Noise Level (Hi / Mi / Lo): 60
SEER2: 14.3
EER: 11.7
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 42,000
Cooling Capacity (BTU): 42,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 176/187

Features

- 42,000 BTU Cooling Capacity: Delivers 42,000 BTU/h of cooling at 95°F for larger residential comfort needs.
- High-Ambient Cooling: Maintains 27,300 BTU/h of cooling capacity at 120°F.
- Heat Pump Heating: Provides 42,000 BTU/h of heating capacity for year-round comfort.
- Wide Operating Range: Supports cooling operation from 23°F to 125°F and heating operation from -4°F to 86°F.
- On-Off Scroll Compressor: Built for reliable and efficient performance.
- BLDC Outdoor Fan Motor: Helps improve efficiency and extend service life.
- R32 Refrigerant: Uses R32 refrigerant with a factory charge of 98.8 oz.
- Refrigerant Leak Detection: Helps enhance system safety and protection.
- Refrigerant-Cooled PCB: Designed for heat dissipation and long-term durability.
- Flexible Controls: Compatible with 24VAC thermostats; optional wired and Wi-Fi controls are available.
- Long-Line Installation Capability: Supports up to 246 ft. of refrigerant piping and 98 ft. of elevation difference.
- 60 dB(A) Sound Pressure Level: Designed for dependable outdoor performance with controlled operating sound.
