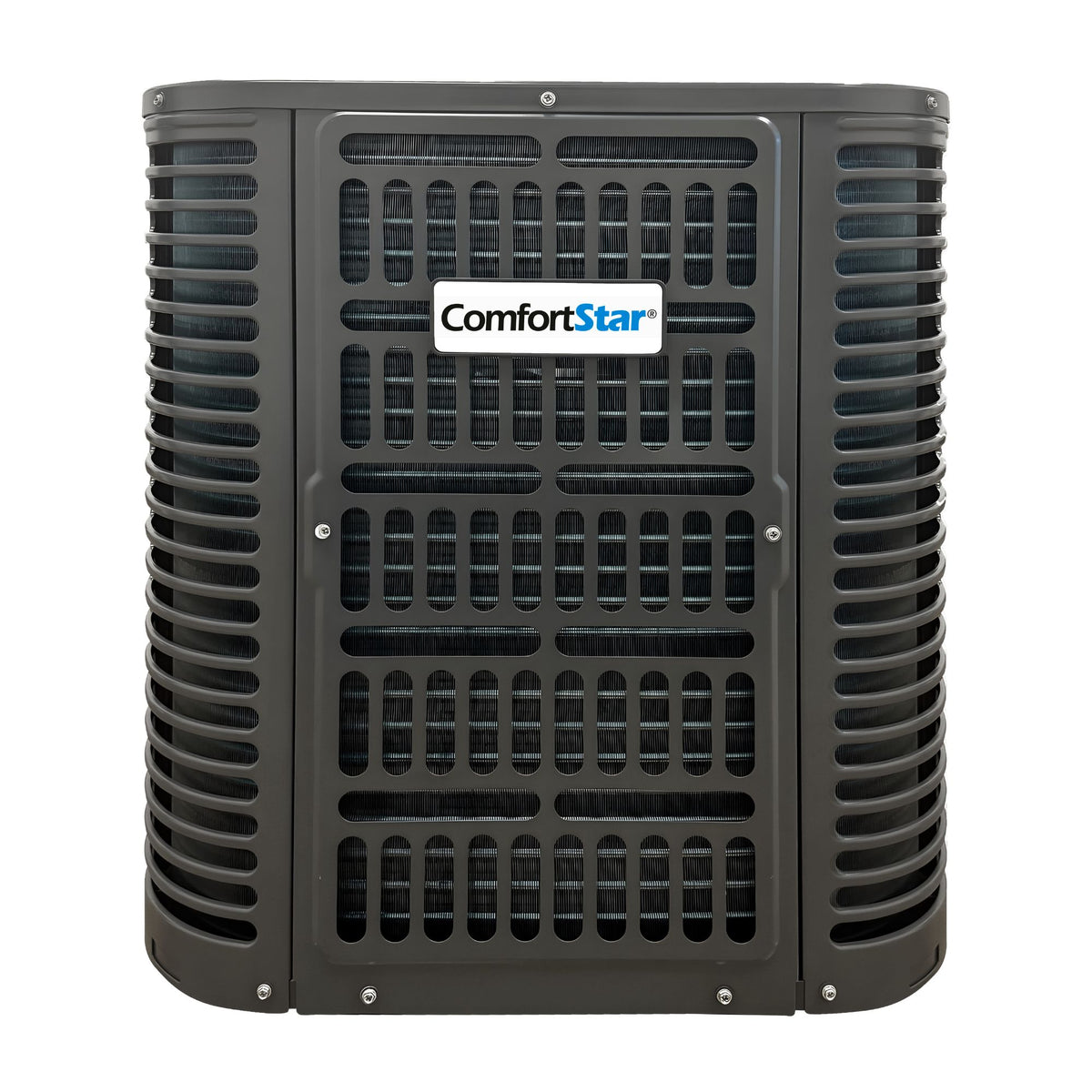

48K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

48K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

SKU: BAH10-48-15

BARCODE: BAH10-48-15

PRODUCT TYPE: Condensing Units

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 29-9/64x29-9/64x32-7/8
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 2,950
Tonnage: 4
dB(A) Noise Level (Hi / Mi / Lo): 60
SEER2: 14.3
EER: 11.7
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 46,000
Cooling Capacity (BTU): 46,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 176/187

Features

- 46,000 BTU Cooling Capacity: Delivers 46,000 BTU/h of cooling at 95°F for demanding whole-home comfort applications.
- High-Ambient Cooling: Provides 29,200 BTU/h of cooling capacity at 120°F.
- Heat Pump Heating: Produces 46,000 BTU/h of heating capacity for seasonal heating needs.
- Wide Operating Range: Operates in cooling from 23°F to 125°F and heating from -4°F to 86°F.
- On-Off Scroll Compressor: Provides reliable and efficient system operation.
- BLDC Outdoor Fan Motor: Helps support efficiency and longer service life.
- R32 Refrigerant: Factory charged with 98.8 oz. of R32 refrigerant.
- Refrigerant Leak Detection: Adds protection by monitoring for refrigerant leaks.
- Refrigerant-Cooled PCB: Supports heat dissipation and durable control-board performance.
- Multiple Control Options: Works with 24VAC thermostats, with optional wired and Wi-Fi control options.
- Long Piping Flexibility: Supports up to 246 ft. of refrigerant piping and up to 98 ft. of vertical separation.
- 60 dB(A) Sound Pressure Level: A consistent outdoor sound rating for this higher-capacity model.
