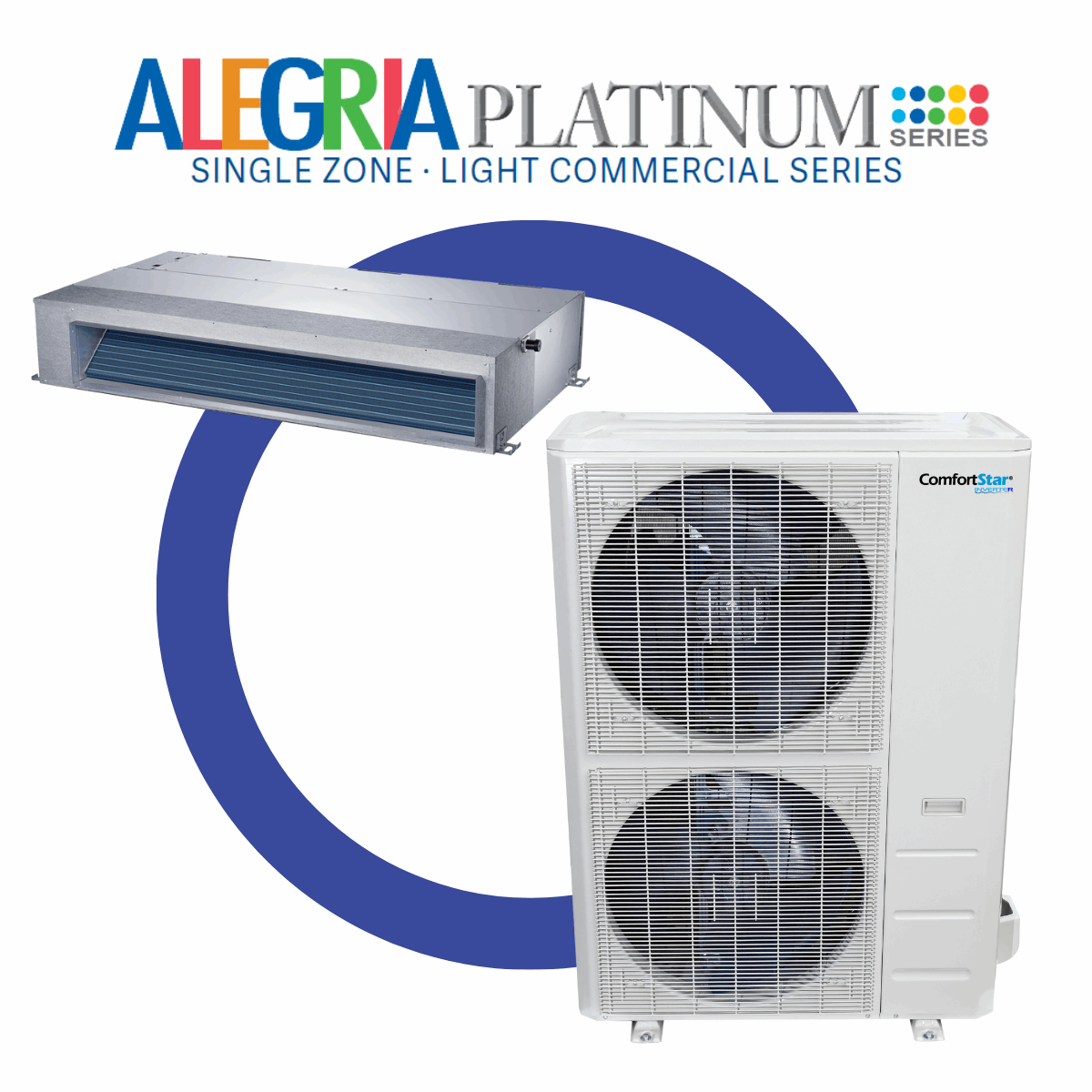

48K COOLING + HEATING - 208/230V LIGHT COMMERCIAL FAN COIL SYSTEM – 15.1 SEER2

COMFORTSTAR

48K COOLING + HEATING - 208/230V LIGHT COMMERCIAL FAN COIL SYSTEM – 15.1 SEER2

SKU: CZPCD-CPADUB-48

BARCODE: CZP48CD(O) + CPA-48DUB

PRODUCT TYPE: Fan Coils

Product variants

Expedited Shipping

System Gross Weight: 391.12 (lbs.)

Quantity

Service Manual

CPA – Service Manual

Owners Manual & Installation Manual

CPA – Owners & Installation Manual

CPA + CZP System Submittal

CPA-48B-CZP48CD(O)

View full details

Refrigerant Type: R410a

SEER2: 15.1

EER2: 8.5

HSPF2-4: 9.3

HSPF2-5: 7.3

Max. Allowable Piping Length (ft): 213

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 98

Min. Power Supply Wire Size (AWG): 10*3

Min. Inter-Connecting Wire Size (AWG): 16*3, Stranded+22*2 Shielded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 120/142

Outdoor Unit Net/Gross Weight (lbs.): 219.14/249.12

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Fan Coil
• Compact Design
• Quiet Operation
• Wired Control (standard)
• Available Fresh Air Intake

Specifications

Unit Size - Inches (W x D x H):

Indoor - 47.24x34.41x11.81
Outdoor - 37.48x16.34x52.48

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 1228.41/1031.00/714.65
Outdoor - 4500

Tonnage: 4

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 52.0/50.0/49.0
Outdoor - 63.5

Heat Capacity (BTU): 50000

Cooling Capacity (BTU): 48000

Placement: Light Commercial Applications

Breaker Size (A): 35

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
