COMFORTSTAR

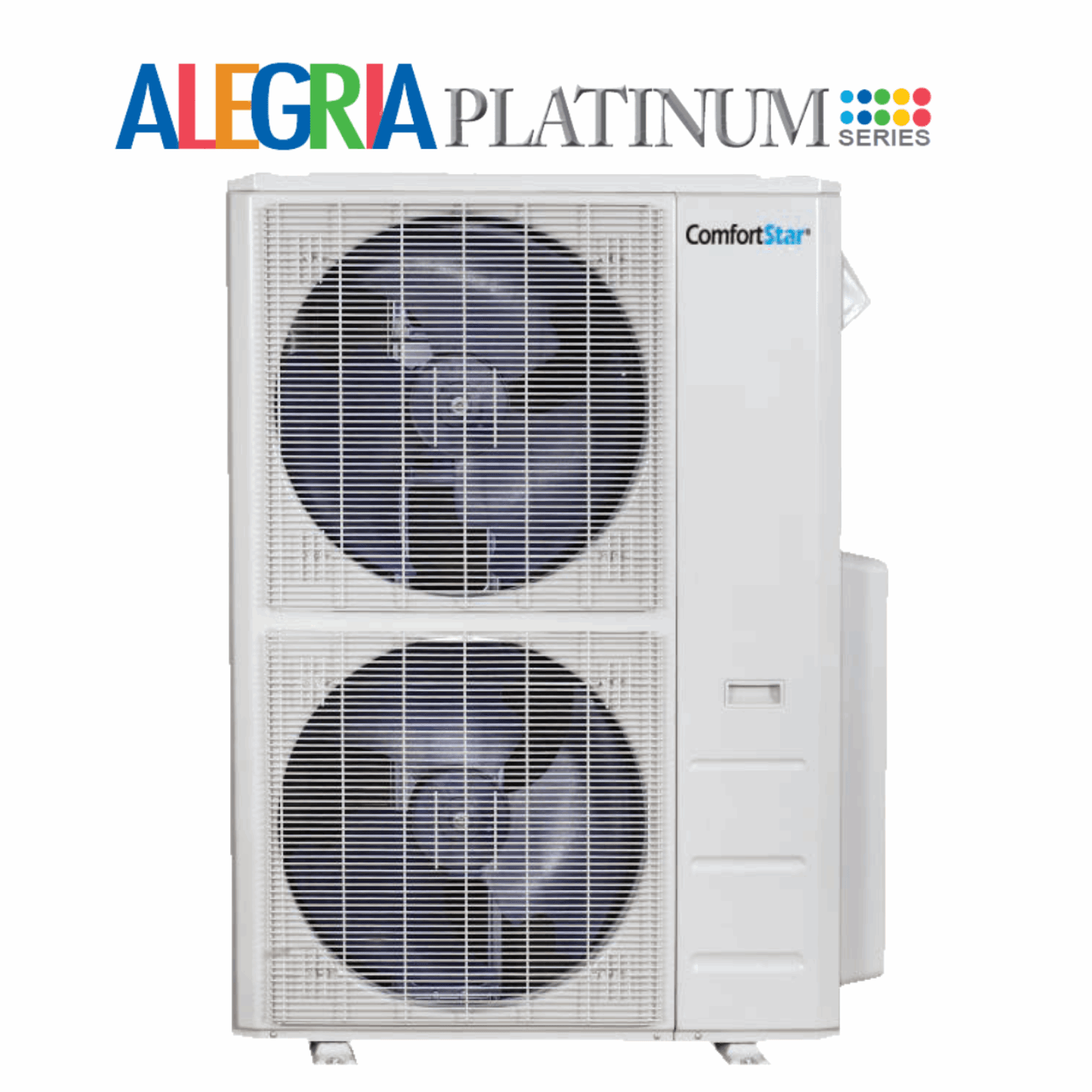

48K FIVE ZONE OUTDOOR CONDENSING UNIT - DUCTED SYSTEM 20.5 SEER2

48K FIVE ZONE OUTDOOR CONDENSING UNIT - DUCTED SYSTEM 20.5 SEER2

SKU: CMZ-54-5Z

PRODUCT TYPE: Multizone Condensing Units

Free Lift Gate

Expedited Shipping

System Gross Weight: 256.62 (lbs.)
Combination Table
View full details
SEER2: 20.5
EER2: 10.8
HSPF2-4: 9.7
HSPF2-5: 7.2
Max. Allowable Piping Length (ft): 98 for 1 IDU 246 for sum up
Min. Allowable Piping Length (ft): 9.8
Max. Allowable Elevation Differences (ft): 33 for ODU higher than IDU, 49 for ODU lower than IDU, 33 between IDU and IDU
Min. Power Supply Wire Size (AWG): 10*3
Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded
Piping Size: (1/4"-3/8")*3& (1/4"-1/2)*2
Operating Mode: Heating and Cooling
Outdoor Ambient Temperature: -13°F
Outdoor Unit Net/Gross Weight (lbs.): 225.53/256.62

Features

Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 36,000 Btu/h - FEATURES: • Inverter Technology • Factory Pre-Charge (25 ft.) • Ambient Operation to -13°F • Connect Up To 5 Zones • Self-Diagnostics • High Efficiency Inverter Technology • Simple installation.

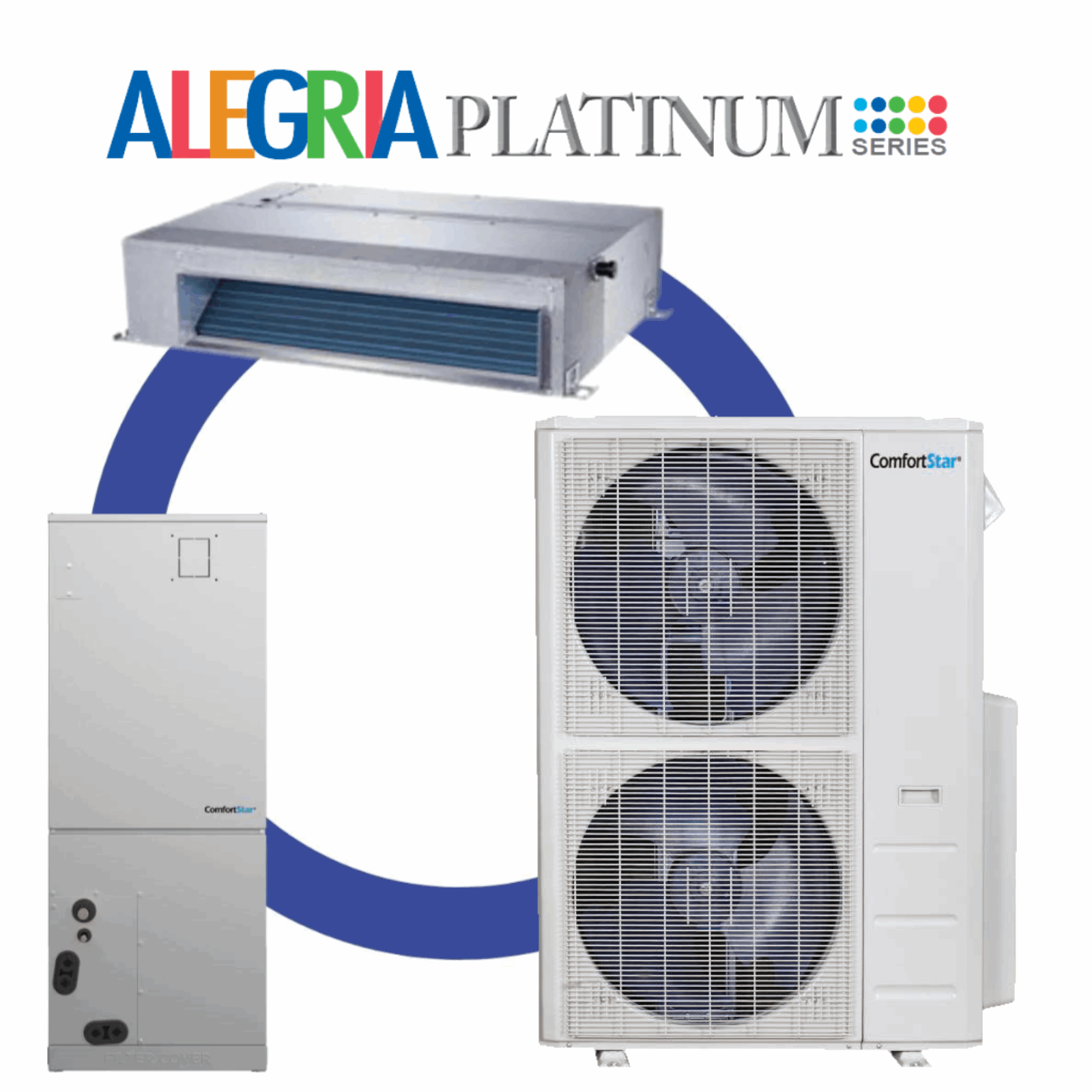

Available Indoor Units:
- Fan Coil

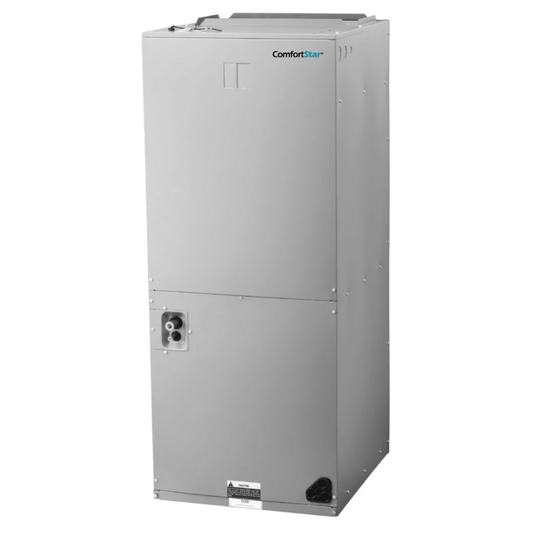

- AHU

Specifications

Unit Size - Inches (W x D x H): 37.48x16.34x52.48

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 4500.00

Tonnage: 4

dB(A) Noise Level (Hi / Mi / Lo): 64

Heat Capacity (BTU): 50000

Cooling Capacity (BTU): 48000

Placement: Five Zone Outdoor Condensing Unit

Breaker Size (A): 50.0

Factory Refrigerant Charge (ft): 25*5

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): refer IDU
