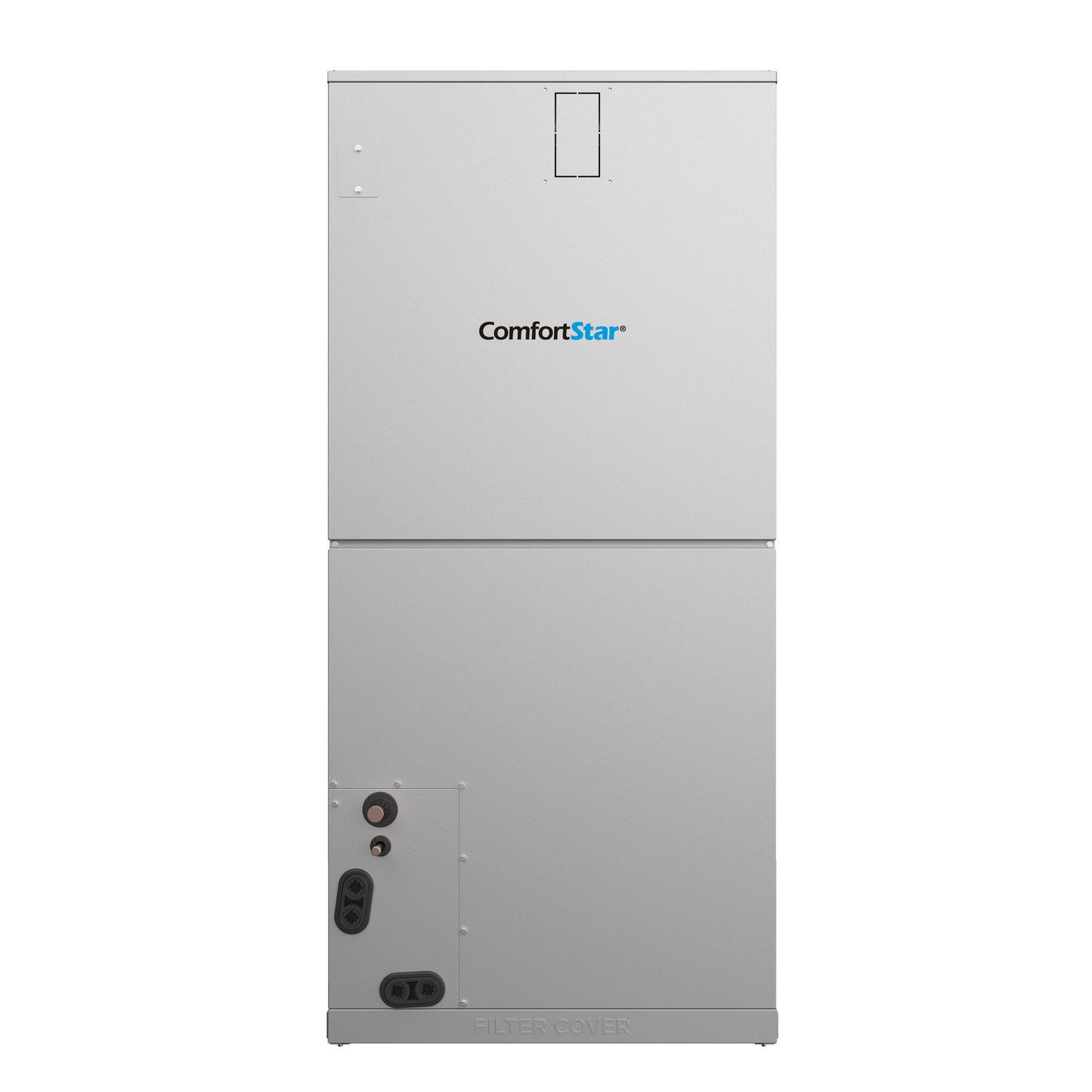

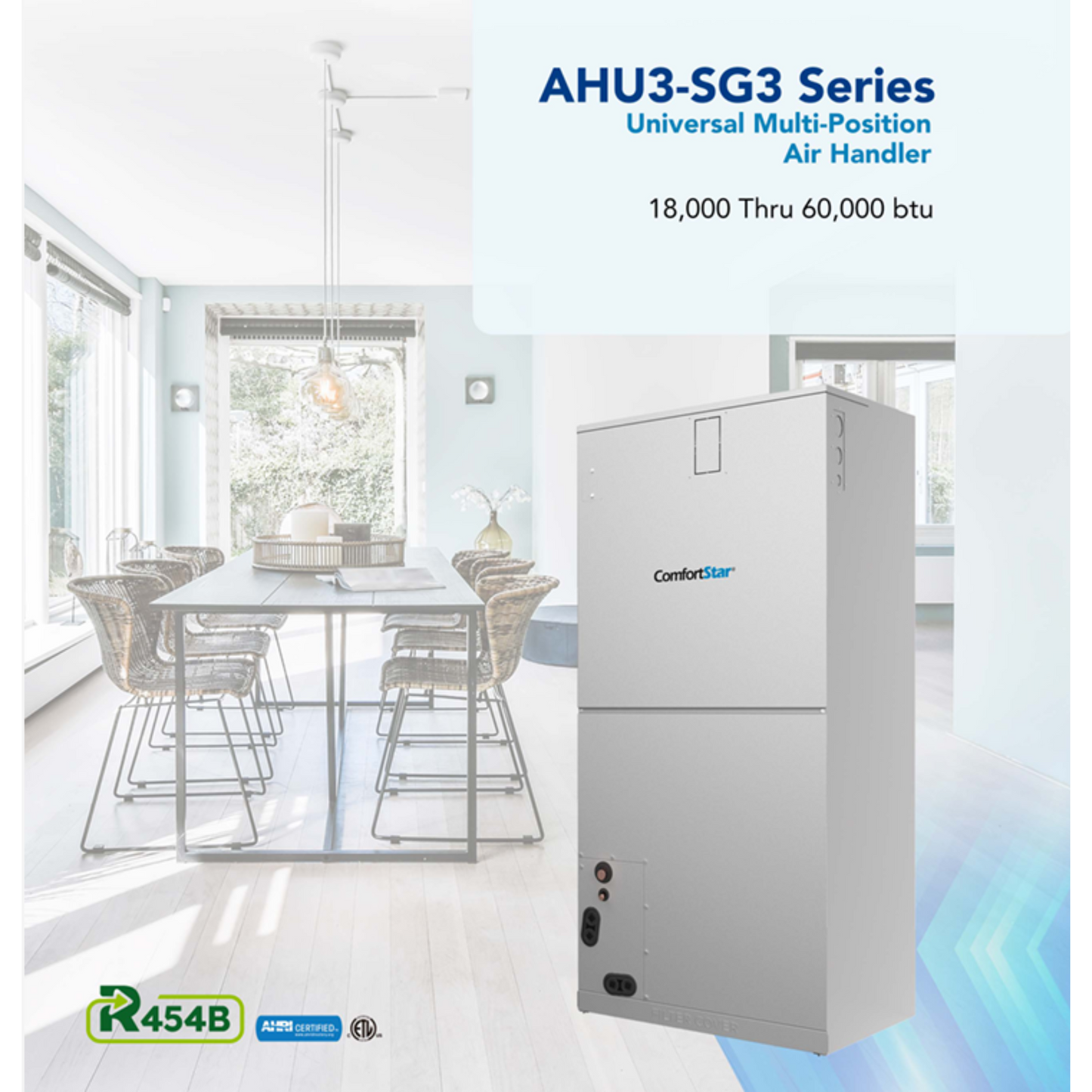

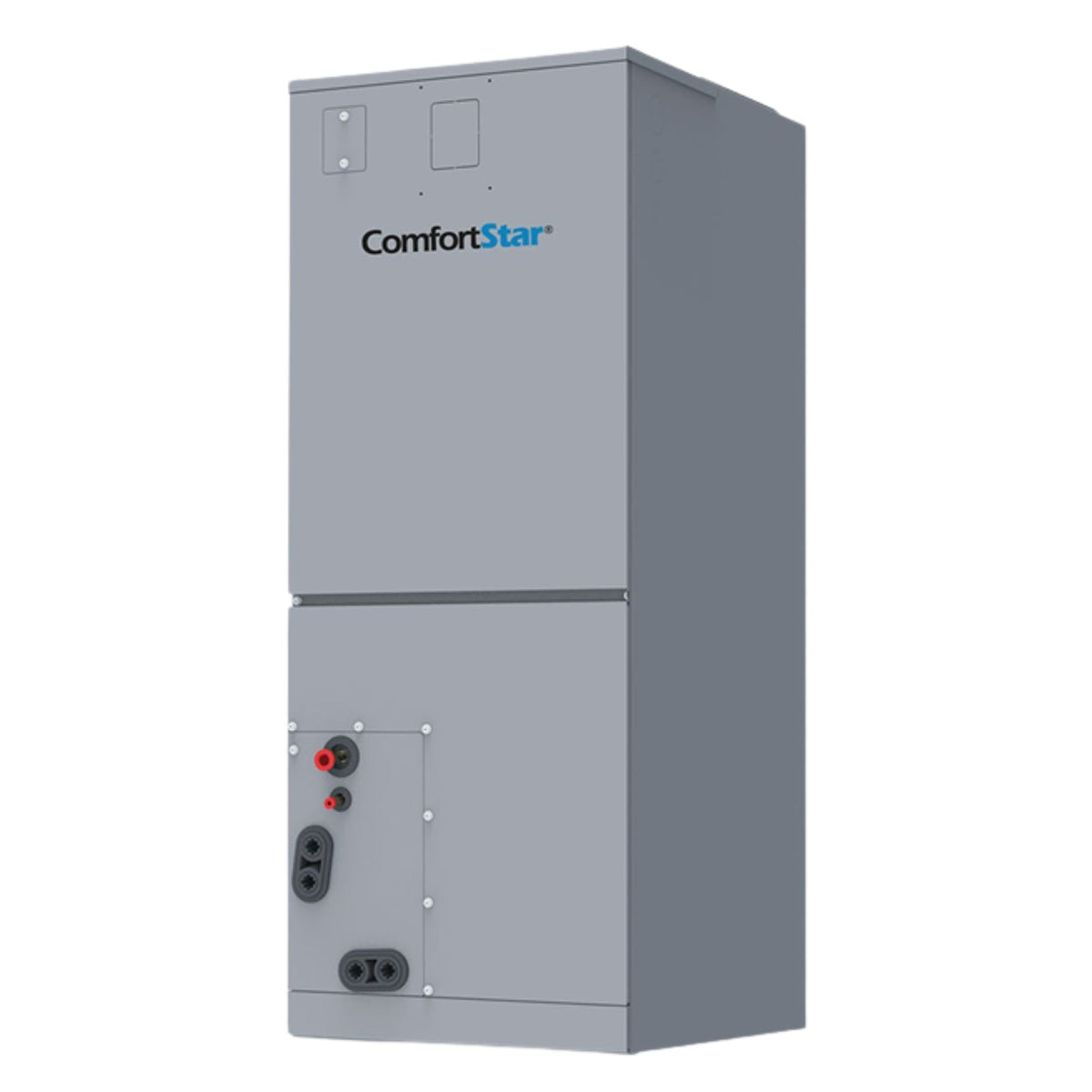

60K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

Name: 60K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2
Brand: COMFORTSTAR
SKU: AHU3-60-SG3
Availability: InStock

60K AHU3-SG3 MULTIPOSITION AIR HANDLER - UP TO 19 SEER2

SKU: AHU3-60-SG3

BARCODE: AHU3-60-SG3

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

System Gross Weight: 190.92 (lbs.)

Quantity

Click Here to View CPR3 & CPH3 Catalog

View full details

Refrigerant Type: R454B

Unit Size - Inches (W x D x H): 24.49 x 21.02 x 52.99

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1807.0 / 1583.3 / 1359.7 / 1136.0

Tonnage: 5

dB(A) Noise Level (Hi / Mi / Lo): 52/49.5/34.5

SEER2: Up to 19 SEER2

EER: Up to 12.5

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 60000

Cooling Capacity (BTU): 60000

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 162.92/190.92

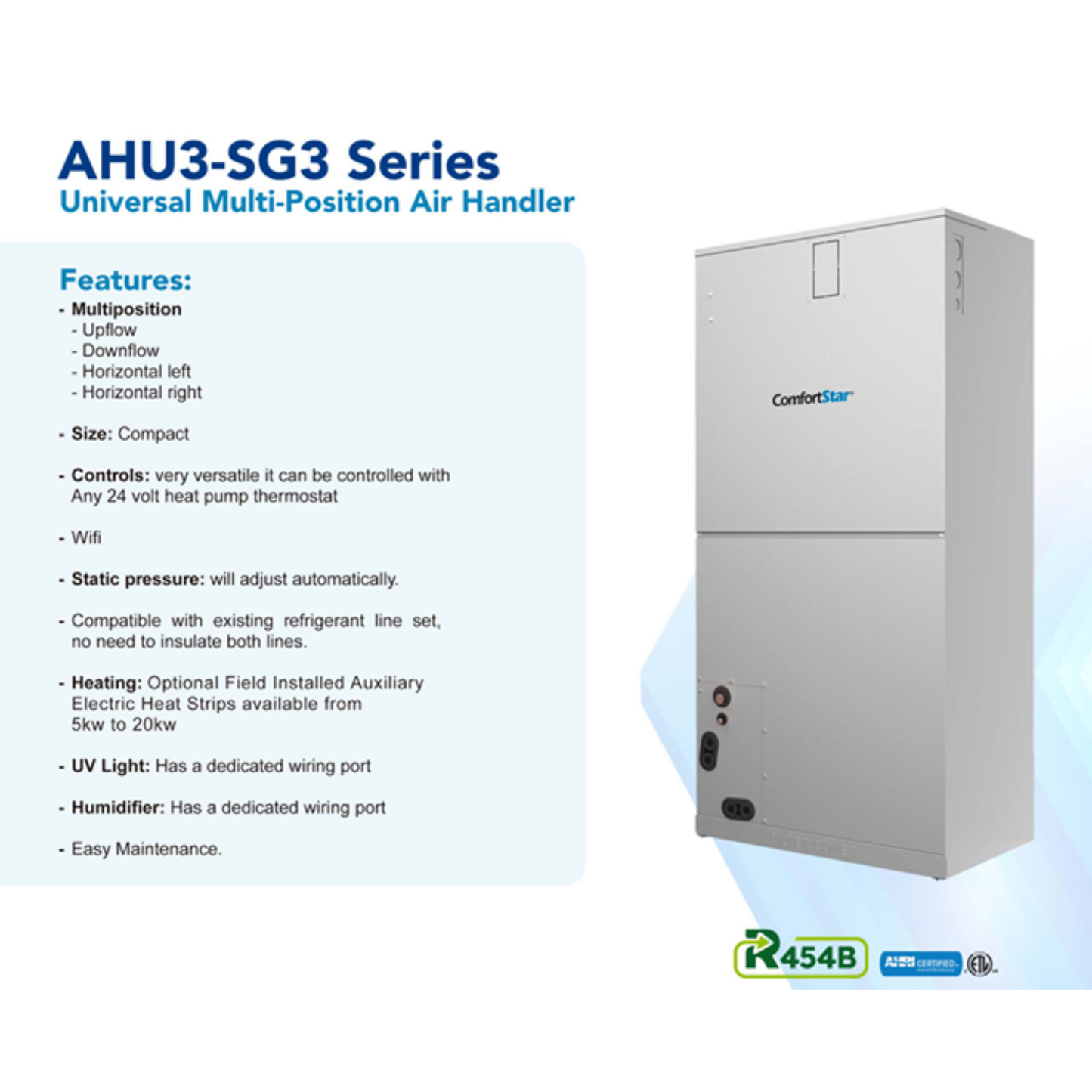

Features

• 54,000 BTU Cooling and Heating Capacity: The highest-capacity AHU3-SG3 model in the series.
• Large 5-Ton Cabinet: Measures 21.02" D x 24.49" W x 52.99" H.
• Maximum Series Airflow: Delivers up to 1,807 CFM in Turbo mode and 1,136 CFM at low speed.
• Universal Multi-Position Installation: Supports upflow, downflow, horizontal-left, and horizontal-right configurations.
• 24V Thermostat Compatibility: Works with any 24V heat pump thermostat.
• Existing Line-Set Compatibility: Designed to work with existing refrigerant line sets.
• Optional Auxiliary Heat: Supports field-installed electric heat strip options.
• Wi-Fi Capability: Includes Wi-Fi functionality within the AHU3-SG3 series.
• UV Light and Humidifier Ready: Includes dedicated wiring ports for both accessories.
• Easy Maintenance Design: Built for convenient service access.
